CV3000 High-Pressure Valve - Fast Color Change for Robotic Paint System Equipment
Price:
RFQ
MOQ:
1 set
Delivery Time:
4-6 weeks
Brand:
techfly
Product Description
CV3000 High-Pressure Valve - Fast Color Change for Robotic Paint System Equipment
Paint System Equipment Overview
- Focused on fluid conveying, metering, proportioning, mixing, and atomization technologies.
-
The CV 3000 stainless steel high-pressure color change valve is a high-precision colorvalve control product designed for automated spraying systems. It is used for colorchanging of high-pressure coatings and curing agents.
Paint System Equipment Features
- Double-acting cylinder with fastresponse speed.
- Immersion components:316 stainless steel,PTFE,tungsten steel.
- Wide range of applicablecoatings and extensiveapplication scope;quickdisassembly for easy increase
- ordecrease in quantity.
- The valve undergoes precisionmachining,with a service life of over1 million cycles(depending on the characteristics of different coatings)
- Valve seat with backflow design,enabling the applicable coatingsto circulate at the color changevalve and reducing coatingprecipitation.
- The switch base is made of tungstensteel and SUS316,featuring highreliability and a long service life.
| Paint System Equipment Technical Parameters | |
| Max pressure | 3000 psi (300 bar, 30 MPa) |
| Max air pressure | 100 psi (7 bar,0.7 MPa) |
| fluid inlet size | 1/4"PT (f) |
| fluid outlet size | 1/4"PT (f) |
| fluid return flow size | 1/4"PT (f) |
| air inlet size | 4mm*2.5mm |
| working temperature | 5-50°C(41-122°F) |
| applicable fluid | primer, topcoat/finish coat,varnish, solvent-based coating, water-based coating/waterborne coating, polyurethane, epoxy resin, etc. |
| immersed part | 316 stainless steel,FFKM,Ultra-high molecular weight polyethylene |

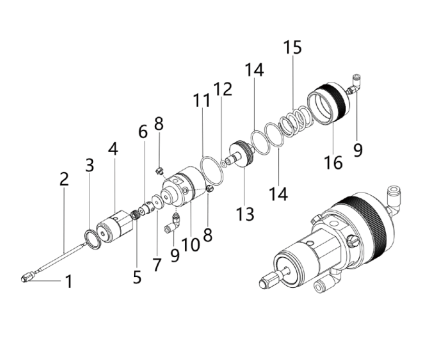

Single Valve Spare Parts List
| No. | Name | Ouantity | Code |
| 1 | plunger | 1 | 260414700389 |
| 2 | needle shaft | 1 | 260414700388 |
| 3 | sealing ring | 1 | 260414700387 |
| 4 | housing | 1 | 260414700375 |
| 5 | U-cup seal | 1 | 260414700376 |
| 6 | bushing | 1 | 260414700377 |
| 7 | gasket | 1 | 260414700386 |
| 8 | quick connector | 2 | 200301000086 |
| 9 | air male thread quick onnector |
2 | 200301000132 |
| 10 | housing | 1 | 260414700378 |
| 11 | O-ring | 1 | 200503000047 |
| 12 | O-ring | 1 | 260414700379 |
| 13 | piston | 1 | 260414700421 |
| 14 | O-ring | 2 | 200503000048 |
| 15 | compression spring | 1 | 260414700383 |
| 16 | nut | 1 | 260414700382 |

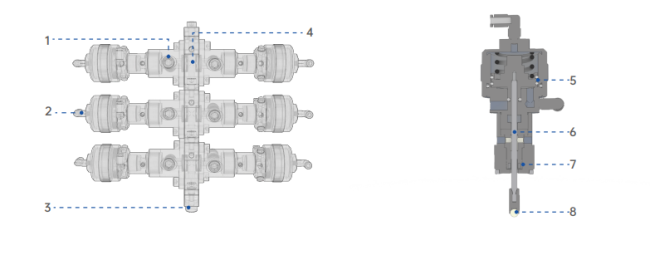

Introduction to the Structure of Color Change Valve
①Fluid inlet ② Valve body ③ Fluid outlet
④expansion ⑤ piston ⑥ polished needle shaftmanifold block
⑦shaft seal ⑧tungsten steel ball
| Painting System Equipment Products model | |||
| valve model | code | quantity | |
| 1color1cleaning | 240109400041 | 2 | Valve code:260414700374 |
| 3colorlcleaning | 240109400042 | 4 | |
| 5color1cleaning | 240109400043 | 6 | |
| 7color1cleaning | 240109400044 | 8 | |
| 9color1cleaning | 240109400045 | 10 | |
| 11color1cleaning | 240109400046 | 12 | |
| 13colorlcleaning | 240109400047 | 14 | |
| 15colorlcleaning | 240109400048 | 16 | |
