Stainless Steel 316 Cable Rope Mesh 1.6mm for Safety Fence
Price:
USD5-20/square meter
MOQ:
50 quare meters
Delivery Time:
10 days
Brand:
Yuhan Wiremesh
Product Description
Stainless Steel 316 Cable Rope Mesh 1.6mm for Safety Fence
Product Specifications
| Attribute | Value |
|---|---|
| Product | Wire Rope Mesh |
| Material | SS304 or 316 |
| Cable Diameter | 1.6MM |
| Application | Safety Fence |
| Mesh Size | 28mm |
| Brand | Yuhan |
| Color | Silver Blue |
| Sample | Free |
Product Description
Stainless steel rope mesh is an innovative solution for safety fencing and animal enclosures, combining flexibility with structural stability. Made from high-quality 304, 304L, 316 or 316L stainless steel materials, it offers exceptional strength-to-weight ratio while showcasing the toughness and plasticity of austenitic stainless steel.
Key Features
- High strength-to-weight ratio with excellent flexibility and stability
- Available in 304, 304L, 316, and 316L stainless steel materials
- Modern architectural element favored by designers worldwide
- Secure ferrule fixation for easy assembly and durability
- Flexible structure allows for easy bending and folding without compromising strength
- Excellent corrosion and weather resistance for outdoor applications
- Customizable rope diameter, opening size, and mesh aperture
Applications

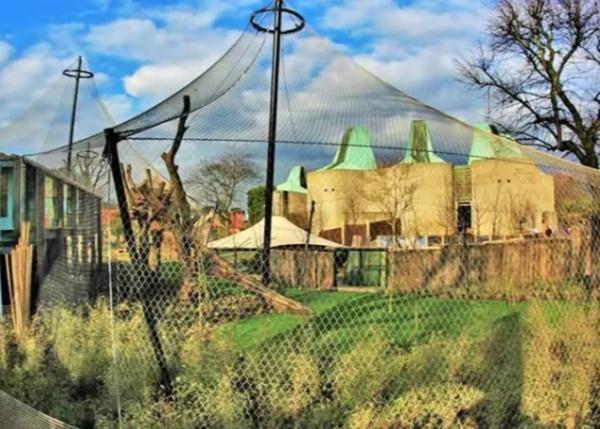

Our stainless steel cable mesh is ideal for various safety protection solutions including footbridges, highway bridges, and suspension bridges to prevent falls. We also offer personalized design solutions with optional glitter or LED modules for unique project requirements.
Technical Specifications
| Wire Rope Diameter (D) | Mesh Aperture (M) |
|---|---|
| 7 × 19 (5/32" / 4.0mm) | 3" × 3" |
| 7 × 19 (5/32" / 4.0mm) | 3.6" × 3.6" |
| 7 × 19 (5/32" / 4.0mm) | 4" × 4" |
| Type | C (%) | Si (%) | Mn (%) | Cr (%) | Ni (%) | S (%) | P (%) |
|---|---|---|---|---|---|---|---|
| 304 | ≤ 0.07 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-11.0 | ≤ 0.03 | ≤ 0.035 |
| 304L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 17.0-19.0 | 8.0-12.0 | ≤ 0.03 | ≤ 0.035 |
| 316 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | 16.0-18.5 | 10.0-14.0 | ≤ 0.03 | ≤ 0.035 |
| 316L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 16.0-18.0 | 12.0-15.0 | ≤ 0.03 | ≤ 0.045 |
Available in two production types: ferrule type (X-TEND Mesh) and inter-woven type (hand-woven wire rope mesh).
