Stainless Steel Rope Net Durable 80*80mm Flexible Stainless Steel Cable Mesh
Stainless Steel Rope Net Durable 80*80mm Flexible Stainless Steel Cable Mesh
Wire Rope Mesh instruction:
Rope mesh products are supplied in two main series according to different weave-types: Inter-woven(Knotted) and Ferrule Type. And according to the materials and ferrules we used, as well as weaving methods and different applications, wire rope mesh can be subdivided into many different styles and types of products. You can learn more about the different types of wire rope mesh through the links below.
| Item No.s | Cable Diameter | Mesh Opening Size | |
| inch | mm | inch | |
| BZ-3212W | 1/8 | 3.2 | 4.75 x 4.75 |
| BZ-3210W | 1/8 | 3.2 | 4 x 4 |
| BZ-3290W | 1/8 | 3.2 | 3.55 x 3.55 |
| BZ-3276W | 1/8 | 3.2 | 3 x 3 |
| BZ-3250W | 1/8 | 3.2 | 2 x 2 |

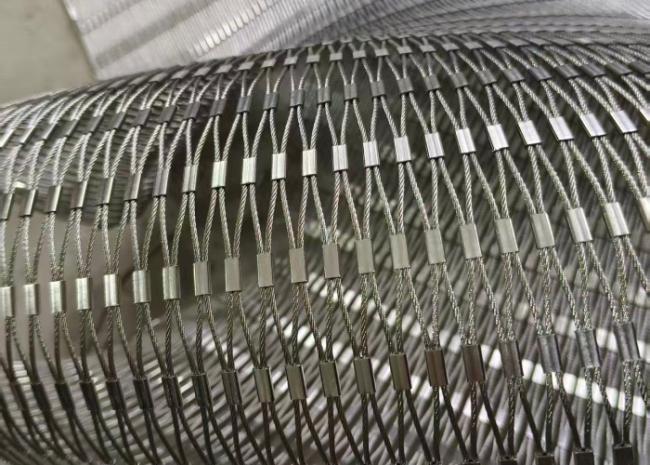

Stainless steel wire rope mesh is composed of 304, 304L, 316, 316L process is divided into hand-woven, closed mouth, open buckle.Assembled by stainless steel wire rope with 100% seamless rope ferrule. Optimal stretch at 60°angle.easily install by special border design.
Wire diameter:1.0-4.0mm(Customized)1.2mm,1.5mm,2.0mm,2.5mm,3.2mm,4mm
Opening :20-300mm(Centre distance)
