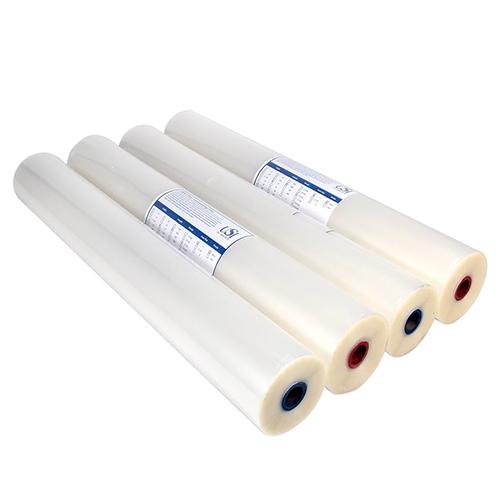

18 micron OPP/BOPP Thermal Lamination Film for Versatile Lamination Applications
What is BOPP thermal lamination film?
BOPP Thermal Lamination Film is mainly made with BOPP base film + EVA glue.
we use extrusion coating process to combine this two layers.
This product has two classifications: glossy/shine/transparent and matte/opaque.
Physical and mechanical properties:
| Item | Unit | Target | Test method | |
| Tensile Strength | MD≥ | MPa | 200 | ASTM D-882 |
| TD≥ | 200 | |||
| Break Elongation | MD≥ | % | 100 | ASTM D-882 |
| TD≥ | 100 | |||
| Heat Shrinkage, (150℃/30min) | MD≤ | % | 2.0 | ASTM D-1204 |
| TD≤ | 0.3 | |||
| Haze | ≥ | % | 3.0 | ASTM D-1003 |
| Glossiness | ≥ | % | 125 | GB/T 8807 |
| Coefficient of Friction | Static≤ | 0.65 | ASTM D-1894 | |
| Dynamic≤ | 0.55 | |||
| Wetting Tension | corona treatment≥ | mN/m | 58 | ASTM D-2578 |
| Note:
MD=Machine Direction; TD: Transverse Direction.
The above data can only be regarded as typical physical properties rather than guaranteed values, which can be adjusted as customer's request. | ||||
1) It is easy to operate on the laminator. High productivity, energy-saving and labor-saving.
2) It was no bubble, wrinkle or desquamates.
3) Non-toxic, Odorless, Pollution Free.
4) Low Static, Wear Resistance and Long Ageing of Corona.
5) Few Defects and Good Opening.
6) Clean and High Transparency.
7) Strong Ink powder absorption
Usage:
1) Cover on the paper, for example: Books, Magazines,catalogue ,name card,label,paper bags,Calendars and Maps,etc.
2) Any types of boxes, for instance: Gift boxes.
3) Medicine,Advertisements,Cosmetics,Digital printing and showing board or boxes .

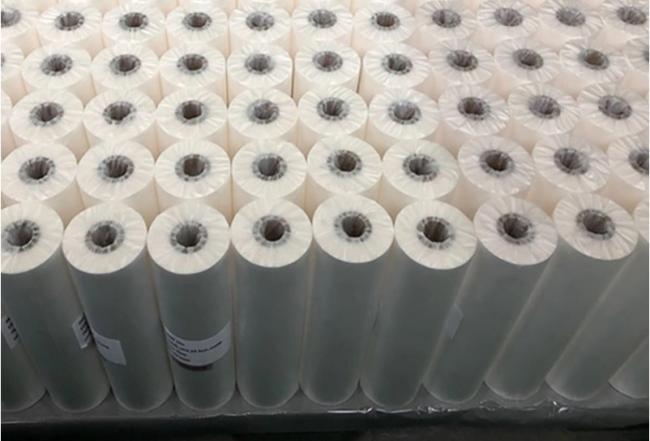

Detailed photos:

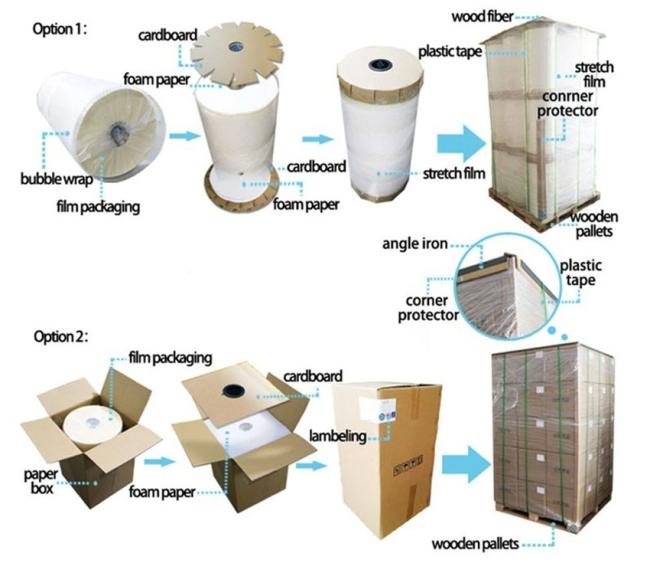

Packing types:
Basic Films---Metallizing---Coating---Slitting---Packing---Loading
Our Company
Q1:The difference between vacuum coating machine and sputtering coating?
A: Vacuum sputter coating is more uniform than evaporative coating
Q2:Can i visit your factory?
A:Yes, welcome to visit our factory, Address: 3988. Tokyo Road Economic development zone Qingzhou city,Shandong province,China (Mainland)
Q3:How do you control your quality?
A:Each process will be tested by our own inspection department to make sure the product quality.
