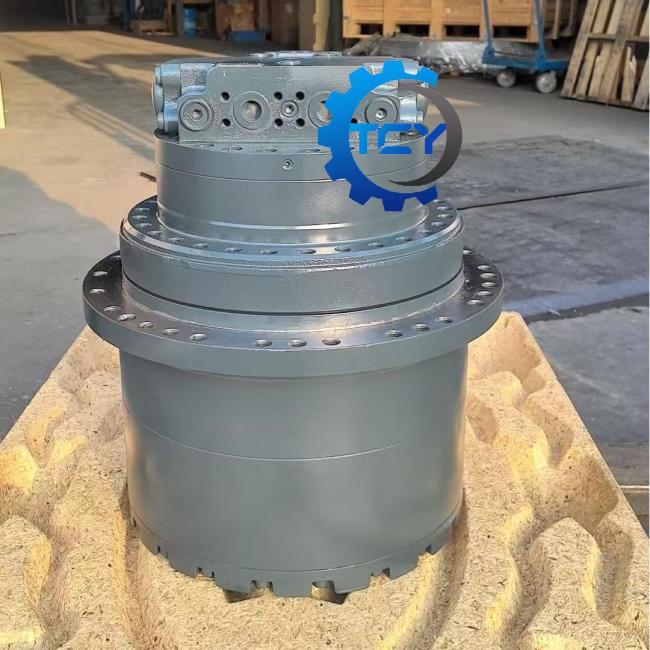

Travel Motor 3106-40030 3106-40031 31Q6-40032 31Q6-40010 Hydraulic Travel Motor R210LC9 R210LC9BC R210LC9BH Final Drive
TCY Travel Motor 3106-40030 3106-40031 31Q6-40032 31Q6-40010 Hydraulic Travel Motor R210LC9 R210LC9BC R210LC9BH Final Drive
| Model:R210LC9 R210LC9BC R210LC9BH R210NLC9 R235LCR9 | Part name:Final drive |
| Part NO.:3106-40030 3106-40031 31Q6-40032 31Q6-40010 ect. | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Final Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

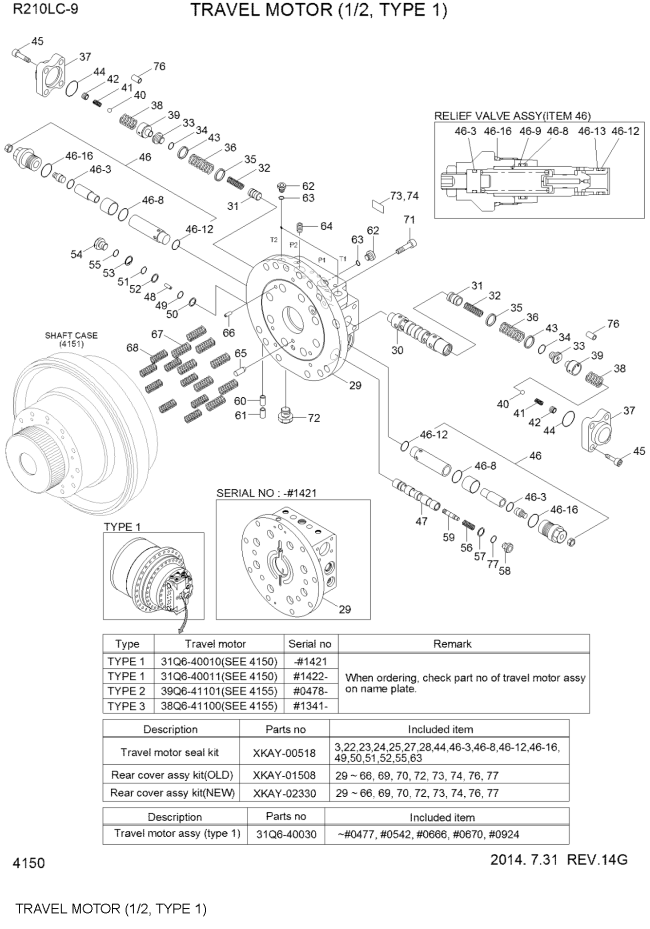

Product structure diagram
| NO. | Part No | Description | |
| *. | 31Q6-40030 | [1] TRAVEL MOTORASSY | |
| *. | 31Q6-40031 | [1] TRAVEL MOTOR ASSY | |
| *. | 31Q6-40032 | [1] TRAVEL MOTOR ASSY | |
| *-1. | 31Q6-40010 | [1] TRAVEL MOTOR UNIT | |
| *-1. | 31Q6-40011 | [1] TRAVEL MOTOR UNIT | |
| 29 | XKAY-00475 | [1] COVER-REAR | |
| XKAY-02334 | |||
| C. | XKAY-00476 | [1] SPOOL KIT | |
| N30. | XKAY-00477 | [1] SPOOL | |
| N31. | XKAY-00478 | [2] CHECK | |
| N32. | XKAY-00479 | [2] SPRING | |
| N33. | XKAY-00480 | [2] PLUG | |
| K34. | XKAY-00481 | [2] O-RING | |
| 35. | XKAY-00482 | [2] SEAT-SPRING | |
| 36 | XKAY-00483 | [2] SPRING | |
| 37. | XKAY-00484 | [2] COVER | |
| 38. | XKAY-00485 | [2] SPRING | |
| 39. | XKAY-00486 XKAY-00487 |
[2] SPOOL | |
| 40. | [2] BALL-STEEL | ||
| 41. | XKAY-00488 | [2] SPRING | |
| 42. | XKAY-00489 | [2] PLUG | |
| 43. | XKAY-00490 | [2] SEAT-SPRING | |
| K44. | XKAY-00825 | [2] O-RING | |
| 45. | XKAY-00492 | [8] BOLT-WRENCH | |
| 46. | XKAY-02254 | [2] RELIEF VALVE ASSY | |
| K46-3. | XKAY-00670 | [1] O-RING | |
| K46-8. | XKAY-00669 | [1] O-RING | |
| 46-9. | XKAY-00684 | [2] RING-BACK UP | |
| XKAY-00671 | |||
| 46-13. | XKAY-00687 | [2] RING-BACK UP | |
| K46-16. | XKAY-01972 | [1] O-RING | |
| 47 | XKAY-00494 | [1] SPOOL | |
| 48. | XKAY-00826 | [1] GUIDE | |
| K49. | XKAY-00827 | [1] O-RING | |
| K50. | XKAY-00497 | [1] RING-BACK UP | |
| K51. | XKAY-00828 | [1] O-RING | |
| K52. | XKAY-00499 | [1] RING-BACK UP | |
| 53. | XKAY-00500 | [1] RING-SNAP | |
| 54. | XKAY-00501 | [3] PLUG | |
| K55. | XKAY-00247 | [4] O-RING | |
| 56. | XKAY-00502 | [1] SPRING | |
| 57. | XKAY-00503 | [1] SEAT-SPRING | |
| 58. | XKAY-00504 | [1] PLUG | |
| 59. | XKAY-00505 | [1] SPOOL | |
| 60. | XKAY-00506 | [2] ORIFICE | |
| 61. | XKAY-00507 | [2] ORIFICE | |
| 62. | XKAY-00508 | [3] PLUG | |
| K63. | XKAY-00256 | [3] O-RING | |
| 64. | XKAY-00032 | [1] PLUG | |
| XKAY-00509 | |||
| 66. | XKAY-00510 | [1] PIN | |
| 67. | XKAY-00511 | [8] SPRING | |
| 68. | XKAY-00512 | [8] SPRING | |
| 71. | XKAY-00385 | [16] BOLT-WRENCH | |
| 72. | XKAY-00515 | [1] PLUG | |
| 73. | XKAY-02077 | [1] NAME PLATE | |
| 74. | XKAY-00517 | [2] RIVET | |
| 76. | XKAY-00519 | [2] ORIFICE | |
| 77. | XKAY-01097 | [AR] SHIM | |
| XKAY-00518 | [1] | SEAL KIT | |
| XKAY-01508 | [1] REAR COVER ASSY KIT | ||
| K. | XKAY-02330 | COVER ASSY-REAR | |
