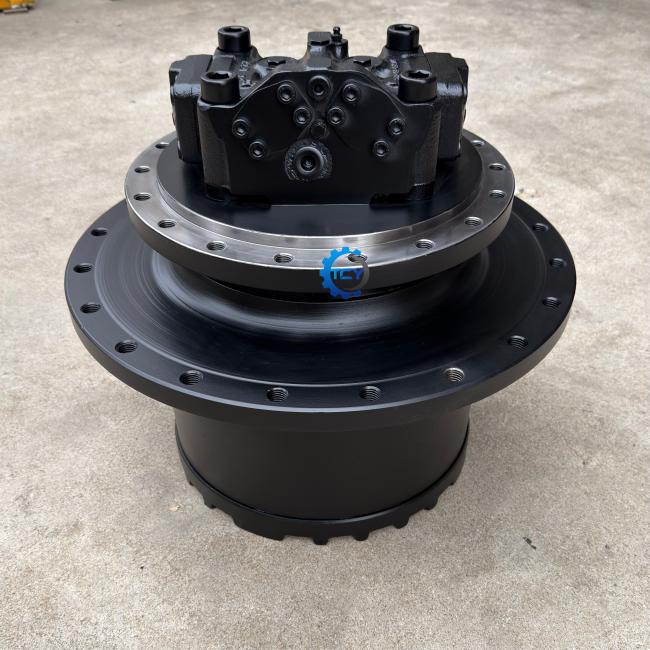

20Y-27-00500 20Y-27-00501 Travel Motor 708-8F-00250 708-8F-31174 for PC200-8 PC210-7K PC210LC-7K PC210NLC-7K Final Drive Assy
20Y-27-00500 20Y-27-00501 Travel Motor 708-8F-00250 708-8F-31174 for PC200-8 PC210-7K PC210LC-7K PC210NLC-7K Final Drive Assy
Model: PC200-8 PC210-7K PC210LC-7K PC210NLC-7K |
Part name:Travel Motor with gearbox |
Part NO:20Y-27-00500 20Y-27-00501 708-8F-00250 708-8F-31174 |
MOQ:1PCS |
Packing:Wooden case |
Place of Origin:Made in China |
Aftersale service provided:Online support |
Apply To:Excavator Final Device |
Delivery Time: 1-3 days Or negotiate |
Note: Other models can be consulted online |
Product
| Pos | Part No | Qty | Parts name | |
| 20Y-27-00501 | [2] | FINAL DRIVE ASSY Komatsu OEM | ||
| 20Y-27-00500 | [2] | FINAL DRIVE ASSY Komatsu OEM | ||
| 1 | 708-8F-00250 | [1] | MOTOR ASSY Komatsu | |
| 20Y-27-00110 | [1] | FLOATING SEAL ASSY Komatsu OEM | ||
| 2 | - | [2] | SEAL Komatsu China | |
| 4 | 20Y-27-41140 | [1] | HUB Komatsu | |
| 5 | 20Y-27-41260 | [2] | BEARING Komatsu | |
| 6 | 20Y-27-41190 | [1] | NUT Komatsu | |
| 7 | 20Y-27-41180 | [1] | LOCK Komatsu | |
| 8 | 01010-81020 | [2] | BOLT Komatsu | |
| 9 | 20Y-27-41151 | [1] | CARRIER Komatsu | |
| 9 | 20Y-27-41150 | [1] | CARRIER Komatsu | |
| 10 | 20Y-27-41130 | [4] | GEAR Komatsu | |
| 11 | 20Y-27-41250 | [4] | BEARING Komatsu | |
| 12 | 20Y-27-41270 | [8] | WASHER Komatsu | |
| 13 | 20Y-27-41170 | [4] | PIN Komatsu | |
| 14 | 20Y-27-21290 | [4] | PIN Komatsu OEM | |
| 15 | 20Y-27-13310 | [1] | WASHER Komatsu China | |
| 16 | 20Y-27-41120 | [1] | GEAR Komatsu | |
| 17 | 20Y-27-22240 | [1] | WASHER Komatsu China | |
| 18 | 20Y-27-31111 | [1] | CARRIER Komatsu | |
| 19 | 20Y-27-22120 | [3] | GEAR Komatsu China | |
| 20 | 20Y-27-22210 | [3] | BEARING Komatsu China | |
| 21 | 20Y-27-21240 | [6] | WASHER Komatsu China | |
| 22 | 20Y-27-21220 | [3] | PIN Komatsu China | |
| 23 | 20Y-27-21280 | [3] | PIN Komatsu China | |
| 24 | 20Y-27-41110 | [1] | SHAFT Komatsu | |
| 25 | 20Y-27-21310 | [1] | WASHER Komatsu China | |
| 26 | 20Y-27-41160 | [1] | COVER Komatsu | |
| 27 | 04260-01587 | [1] | BALL Komatsu | |
| 28 | 01010-81240 | [12] | BOLT Komatsu | |
| 29 | 01643-31232 | [12] | WASHER Komatsu | |
| 30 | 07049-01012 | [2] | PLUG Komatsu | |
| 31 | 20Y-27-31190 | [3] | PLUG Komatsu | |
| 32 | 07002-12434 | [3] | O-RING Komatsu China | |
| 33 | 20Y-27-11582 | [1] | SPROCKET Komatsu China | |
| 34 | 20Y-27-11551 | [20] | BOLT Komatsu China | |
| 35 | 01010-61660 | [36] | BOLT Komatsu | |
| 36 | 01643-31645 | [36] | WASHER Komatsu | |
| 37 | 20Y-27-21192 | [2] | COVER Komatsu China | |
| 37 | 20Y-27-21191 | [2] | COVER Komatsu | |
| 38 | 01010-81290 | [8] | BOLT Komatsu |
Exhibition
Shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
