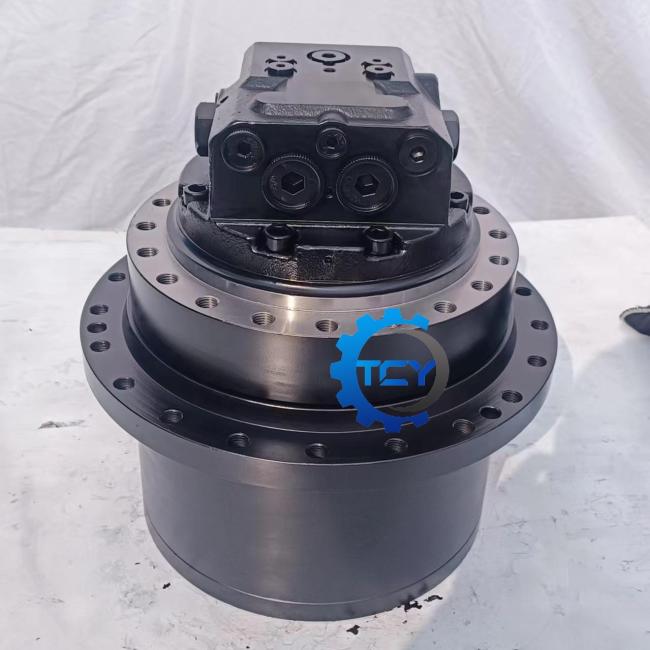

38Q4-40100 38Q4-40100BG TRAVEL UNIT FOR R140LC-9
38Q4-40100 38Q4-40100BG TRAVEL UNIT FOR R140LC-9
Model: R130 R140 R140VS R140LC-9 R150 |
Part name:Travel Motor with gearbox |
Part NO:38Q4-40100 38Q4-40100BG 31Q4-40040 31Q4-40030 |
MOQ:1PCS |
Packing:Wooden case |
Place of Origin:Made in China |
Aftersale service provided:Online support |
Apply To:Excavator Final Device |
Delivery Time: 1-3 days Or negotiate |
Note: Other models can be consulted online |
Product
| Pos. | Part No | Qty | Parts name |
| *. | @ | [1] | TRAVEL MOTOR ASSY |
| N*-2. | 39Q4-42100 | [1] | TREDUCTION GEAR |
| N*-2. | 39Q4-42101 | [1] | TREDUCTION GEAR |
| N*-2. | 39Q4-42102 | [1] | TREDUCTION GEAR |
| 59 | 39Q4-42110 | [1] | GEAR-RING |
| 60 | 39Q4-42120 | [2] | BEARING-ANG.BALL |
| 61 | 39Q4-42130 | [2] | SEAL ASSY-FLOATING |
| 62 | 39Q4-42140 | [1] | RING-NUT |
| 63 | 39Q4-42151 | [1] | PLATE-LOCK |
| 64 | S017-100166 | [9] | BOLT-HEX |
| 65 | 39Q4-42170 | [4] | PLATE-THRUST 2 |
| 66 | 39Q4-42180 | [4] | GEAR-PLANETARY 2 |
| 67 | 39Q4-42190 | [4] | BEARING-NEEDLE 2 |
| 68 | 39Q4-42200 | [4] | RACE-INNER 2 |
| 69 | 39Q4-42210 | [4] | WASHER-THRUST 2 |
| 70 | 39Q4-42220 | [1] | GEAR-SUN 2 |
| K71. | 39Q4-42240 | [1] | CARRIER 1 |
| K72. | 39Q4-42250 | [3] | GEAR-PLANETARY 1 |
| K73. | 39Q4-42260 | [3] | BEARING-NEEDLE 1 |
| K74. | 39Q4-42270 | [3] | RACE-INNER 1 |
| K75. | 39Q4-42280 | [1] | PLATE-THRUST 1 |
| K76. | S017-080166 | [3] | BOLT-HEX |
| 77 | 39Q4-42330 | [1] | SCREW |
| 78 | 39Q4-42290 | [1] | GEAR-SUN 1 |
| 79 | 39Q4-42300 | [1] | BALL-STEEL |
| 80 | 39Q4-42310 | [1] | COVER |
| 81 | S109-100256 | [12] | BOLT-SOCKET |
| 82 | P220-110203 | [3] | PLUG-HEX |
| K83. | S631-014001 | [3] | O-RING |
| N84. | 39Q4-42320 | [1] | NAME PLATE |
| 85 | 39Q6-41800 | [2] | RIVET |
| 86 | 39Q4-42340 | [3] | CAP-RUBBER |
| 87 | 39Q4-42350 | [12] | CAP-RUBBER |
| K. | 39Q4-42230 | [1] | CARRIER ASSY KIT 1 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
| N*-2. | 39Q4-42100 | [1] | T/REDUCTION GEAR |
| 59 | 39Q4-42110 | [1] | GEAR-RING |
| 60 | 39Q4-42120 | [2] | BEARING-ANG.BALL |
| 61 | 39Q4-42130 | [2] | SEAL ASSY-FLOATING |
| 62 | 39Q4-42140 | [1] | RING-NUT |
| 63 | 39Q4-42151 | [1] | PLATE-LOCK |
| 64 | S017-100166 | [9] | BOLT-HEX |
| 65 | 39Q4-42170 | [4] | PLATE-THRUST 2 |
| 66 | 39Q4-42180 | [4] | GEAR-PLANETARY 2 |
| 67 | 39Q4-42190 | [4] | BEARING-NEEDLE 2 |
| 68 | 39Q4-42200 | [4] | RACE-INNER 2 |
| 69 | 39Q4-42210 | [4] | WASHER-THRUST 2 |
| 70 | 39Q4-42220 | [1] | GEAR-SUN 2 |
| K71. | 39Q4-42240 | [1] | CARRIER 1 |
| K72. | 39Q4-42250 | [3] | GEAR-PLANETARY 1 |
| K73. | 39Q4-42260 | [3] | BEARING-NEEDLE 1 |
| K74. | 39Q4-42270 | [3] | RACE-INNER 1 |
| K75. | 39Q4-42280 | [1] | PLATE-THRUST 1 |
| K76. | S017-080166 | [3] | BOLT-HEX |
| 77 | 39Q4-42330 | [1] | SCREW |
| 78 | 39Q4-42290 | [1] | GEAR-SUN 1 |
| 79 | 39Q4-42300 | [1] | BALL-STEEL |
| 80 | 39Q4-42310 | [1] | COVER |
| 81 | S109-100256 | [12] | BOLT-SOCKET |
| 82 | P220-110203 | [3] | PLUG-HEX |
| K83. | S631-014001 | [3] | O-RING |
| N84. | 39Q4-42320 | [1] | NAME PLATE |
| 85 | 39Q6-41800 | [2] | RIVET |
| K. | 39Q4-42230 | [1] | CARRIER ASSY KIT 1 |
Exhibition
Shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
