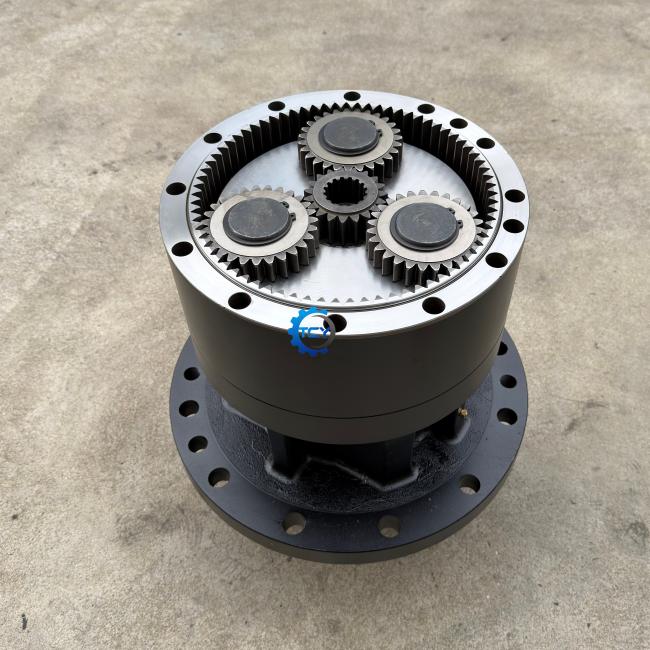

130401-00026 130401-00026A K1004037A DX255LC DX255LC DX260 SWING REDUCTION GEAR FOR DOOSAN
| Model: DX255LC DX255LC DX260 | Part name:Swing Reduction Gear |
| Part NO.:130401-00026 130401-00026A K1004037A | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:CASE Excavator |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product

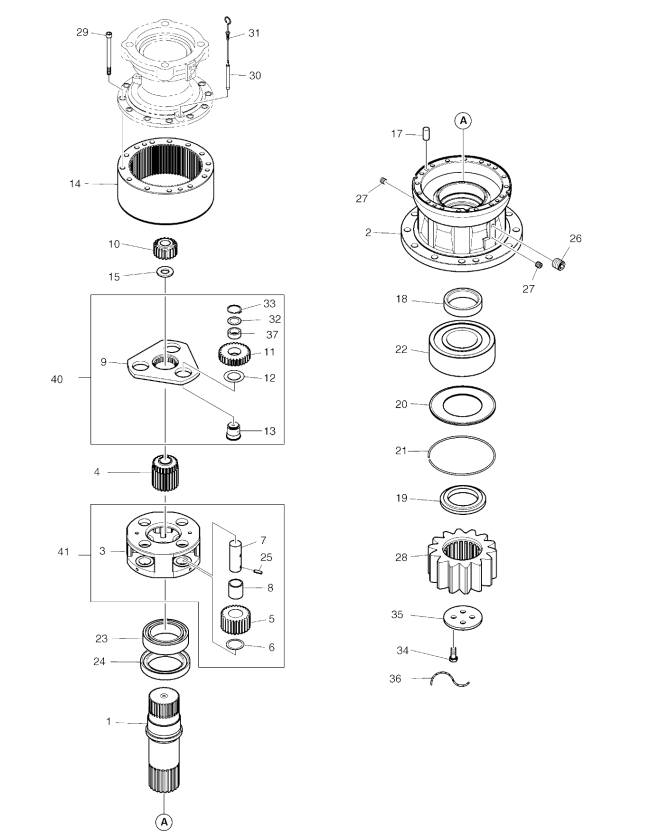

| Pos. | Part No | Qty | Parts name |
| -. | K1004037A | [1] | REDUCTION GEAR;SWING |
| 1 | K1004038B | [1] | SHAFT |
| 10 | K1004040B | [1] | GEAR;SUN NO.1 |
| 1 | K1002548 | [3] | GEAR;PLANET NO.1 |
| 12 | K1002549 | [3] | PLATE;SIDE |
| 13 | K1002550 | [3] | PIN |
| 14 | K1006981 | [1] | GEAR;RING |
| 15 | K1002552 | [1] | PLATE;THRUST |
| 17 | K1003384A | [4] | PIN;LOCK |
| 18 | K1002554A | [1] | SPACER |
| 19 | K1004041A | [1] | COLLAR |
| 2 | K1002539A | [1] | CASE |
| 20 | K1002556 | [1] | PLATE |
| 21 | K1002558 | [1] | RING;LOCK |
| 22 | K1002559 | [1] | BEARING |
| 23 | K1003682A | [1] | BEARING |
| 24 | K1005719 | [1] | SEAL,OIL |
| 25 | S5741361 | [4] | PIN;SPRING |
| 26 | 2181-1116D4 | [1] | PLUG |
| 27 | S5810010 | [3] | PLUG |
| 28 | K1004042A | [1] | GEAR;PINION |
| 29 | S2226671 | [12] | BOLT;SOCKET |
| 3 | K1002540A | [1] | CARRIER NO.2 |
| 30 | 140-01343A | [1] | PIPE |
| 31 | 119-00020 | [1] | BAR;LEVEL |
| 32 | K1002567 | [3] | PLATE;SIDE |
| 33 | S6500600 | [3] | .RING,RETAINER |
| 34 | 2120-1363 | [4] | BOLT |
| 35 | 2403-1039A | [1] | PLATE;LOCK |
| 36 | 2126-9001 | [1] | WIRE |
| 37 | K1003386 | [3] | BUSH |
| 4 | K1002541A | [1] | GEAR;SUN NO.2 |
| 40 | K9004901 | [1] | CARRIER NO.1 ASS'Y |
| 41 | K9004902 | [1] | CARRIER NO.2 ASS'Y |
| 5 | K1002542 | [4] | GEAR;PLANET NO.2 |
| 6 | K1002543 | [4] | PLATE;SIDE NO.2 |
| 7 | K1002544 | [4] | PIN |
| 8 | K1002545 | [4] | BUSH |
| 9 | K1002546 | [1] | CARRIER NO.1 |
