450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
| Model: 3CX | Part name:Carrier Annulus |
| Part NO.:450/12702 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:JCB BACKHOE 3CX |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product

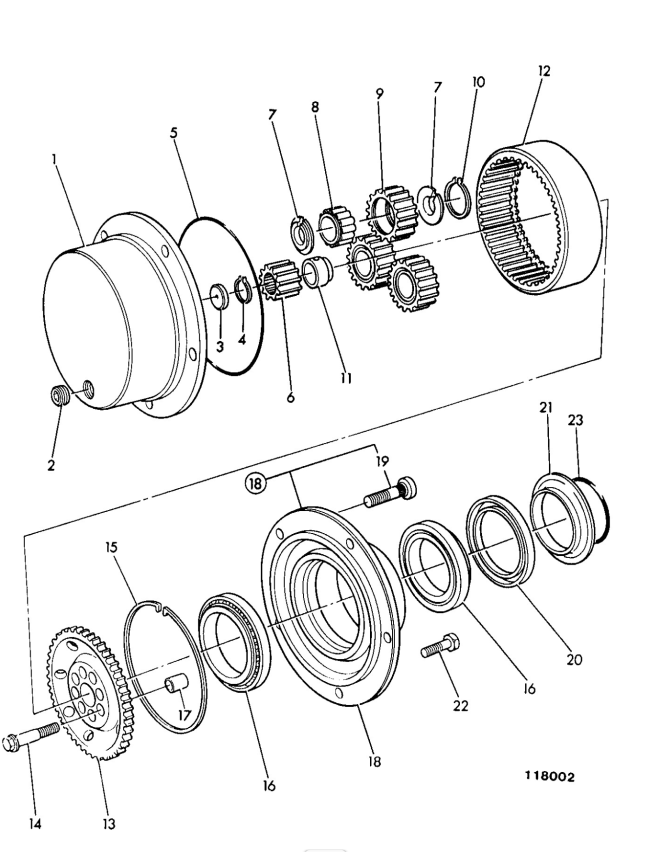

| Pos. | Part No | Qty | Parts name |
| 1 | 450/12401 | [2] | Carrier planetary hub |
| 2 | 826/00425 | [2] | Plug tapered 3/4"-14PTF |
| 3 | 450/10208 | [2] | Pad Thrust |
| 4 | 821/00216 | [2] | Circlip external |
| 5 | 828/00196 | [2] | O Ring |
| 6 | 450/12403 | [2] | Gear Sun |
| 7 | 821/00209 | [12] | Circlip |
| 8 | 907/50200 | [6] | Bearing Roller, Double Row |
| 9 | 450/10206 | [6] | Gear Planet |
| 10 | 2203/0054 | [6] | Circlip |
| 11 | 921/50000 | [2] | Spacer 32mm long |
| 12 | 450/10205 | [2] | Gear Annulus Ring |
| 13 | 450/12702 | [1] | Carrier Annulus |
| 14 | 826/01060 | [16] | Bolt M14 x 70mm long |
| 15 | 821/00210 | [2] | Circlip Internal Square Section |
| 16 | 907/52200 | [4] | Bearing Taper |
| 17 | 450/12703 | [8] | Dowel Hollow |
| 18 | 450/11100 | [2] | Hub c/w studs |
| 19 | 826/00923 | [5] | Stud Wheel |
| 20 | 904/50033 | [2] | Seal - Cassette |
| 22 | 1321/0407Z | [4] | Bolt Coated M10 x 25 |
