9224241 Travel Motor with gearbox FOR ZX75UR TRAVEL DEVICE HITACHI

Price Negotiable
Price: 1000-3000
MOQ: 1
Delivery Time: 2-3/Negotiate
Brand: TCY
Product Description

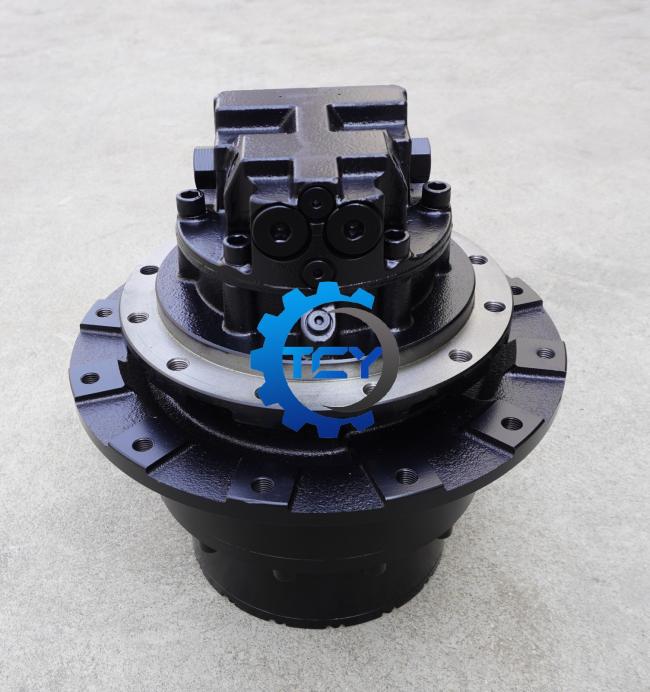

9224241 9224123 TRAVEL MOTOR WITH GEARBOX FOR ZX75UR TRAVEL DEVICE HITACHI



• High torque & stable performance
Powerful output ensures smooth and efficient travel even under heavy load and tough working conditions.



• Premium material & long service life
High-strength gears and bearings with heat treatment, wear-resistant and durable for heavy-duty use.



• Advanced sealing system
Reliable multi-layer seals prevent oil leakage, dust and water intrusion, extending component life.



• Perfect OEM replacement
Direct interchangeable with original parts, easy installation, no modification needed.



• Low noise & low maintenance
Stable operation, reduced downtime, cost-effective for construction machinery.



• Wide compatibility
Suitable for various brands and models of excavators, reliable in mining, construction and earthmoving sites.



Model: ZX70 ZX75UR ZX75URT ZX75US-A ZX75UST ZX80LCK ZX8OSB-HCME ZX85US-HCME

Part name:Travel Motor with gearbox

Part NO:9224241 9224123

MOQ:1PCS

Packing:Wooden case

Place of Origin:Made in China

Aftersale service provided:Online support

Apply To:Excavator Final Device

Delivery Time: 1-3 days Or negotiate

Note: Other models can be consulted online

Pos. Part No Qty Parts name
  9224241 [2] TRAVEL DEVICE ASS'Y
0 9207861 [1] MOTOR;OIL
0 9207891 [1] MOTOR;OIL
2 4468674 [2] BRG.;BOLL
3 4082631 [1] SEAL;GROUP
4 4468675 [1] DRUM
6 J931635 [12] BOLT
8 4468676 [1] GEAR;RING
9 M341440 [12] BOLT;SOCKET
10 1024217 [1] SPROCKET
12 4468678 [1] COVER
13 4392320 [1] RING
14 4245797 [3] PLUG
15 4468679 [1] PIN
16 4407802 [1] O-RING
19 4400403 [1] CARRIER
20 4600404 [1] SHAFT;PROP.
21 4600405 [3] GEAR;PLANETARY
22 4600407 [3] BRG.;NEEDLE
23 4392322 [6] PLATE;THRUST
24 4600406 [3] PIN
25 4116305 [3] PIN;SPRING
26 4600408 [1] PLATE;THRUST
29 4468684 [1] CARRIER
30 4468685 [1] GEAR;SUN
31 4468686 [3] GEAR;PLANETARY
32 4468687 [3] BRG.;NEEDLE
33 4392326 [6] PLATE;THRUST
34 4468688 [3] PIN
35 4105691 [3] PIN;SPRING
37 3080619 [1] NUT
38 J401032 [1] PIN;KNOCK
40 3095427 [1] NAME-PLATE
41 M492564 [2] SCREW;DRIVE
