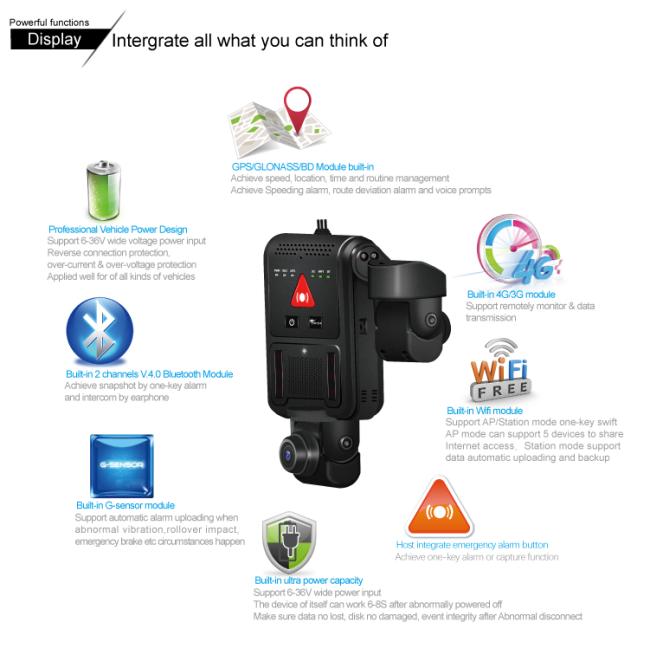

Mini All-in-One 4G WIFI GPS Mobile DVR 720P 2CH MDVR Functions for Vehicle Monitoring
PRODUCT DESCRIPTION
- Resolution: 2 CHANNEL HD AHD Full real-time recording
- Module G-Sensor, 4G and GPS built in
- Super Mini Size, 2 cameras, speaker and pickup integrated
- Wide range voltage power supply(8V-36V)
- Easy installation, save wire, save labor cost, looks cool!!!
| Item | Parameter | ||
| OS | Linux | ||
| Language | Chinese/English/Others(can be customized) | ||
| Video Compression | H.264 | ||
| OSD | Overlays information such as date time and vehicle ID | ||
| Video Record System | Video Input | 2 channels(1 channels built-in ,1Ch External) 720P AHD HD / SD / Mixed Video Input | |
| Video Output | 1CH AV output | ||
| Preview | Support 1/2 channels full screen preview | ||
| Video Quality | 0-7 levels, 0 is the highest level. | ||
| Resolution | Support 720P/D1/CIF, MAX:2CH 1080P | ||
| Video Standard | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, multi image quality optional; HD1: 600Kbps ~ 2.5Mbps, multi image quality optional; D1: 800Kbps ~ 3Mbps, multi image quality optional; 720P : 1Mbps~4Mbps, multi image quality optional; 1080P: 800Kbps-6Mbps, multi image quality optional; | ||
| Record Mode | Auto recording with ACC Power on. Timed recording, alarm recording and manual recording . | ||
| Audio | Audio Input | 2CH ,(1CH built-in , 1CH External) | |
| Audio Output | 1 CH | ||
| Compression | G.726 compression | ||
| Alarm | Input | 1CH level Alarm Input | |
| Communication Port | 1CH RS232 or 1CH RS485 | ||
| Position | Support Built GPS Module,can make playback analysis of vehicle routing | ||
| Wireless transmission | Built-in 4G network, TTD-LTE, FDD-LTE | ||
| Storage | SD | SD Card,max 1*256GB SD Card | |
| Upgrade | Support USB flash disk updating,SD card upgrade , OTA remote upgrade automatically | ||
| File Format | H.264 | ||
| File System | Special Car system File System | ||
| Video Playback | Video Search | Search By Record Time/Record Type etc | |
| Playback | Max support 2CH Replay /Stop/Fast/Slow at same time | ||
| Support forward and backward play at the speed of: x 2,x4,x8,x16. | |||
| Safety Management | User/Admin 2 Levels Different Passwords , support screen lock | ||
| TTS Voice Broadcasting | Support TTS voice broadcasting | ||
| Voltage & Power | Voltage Input | 8V ~ 36V DC | |
| Voltage Output | +12V 1.2A, 1channel with IR +12V 0.9A, 1channel with IR | ||
| Power Management | Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support the timer switch machine, delay shutdown function. | ||
| Power-off Protection | UPS Technology,All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged. | ||
| Power Consumption | Normal Working <10W , Stand-by status < 0.5W | ||
| Working Environment | Temperature | - 20℃ ~ + 70℃ | |
| Humidity | 20% ~ 80% | ||
| Others | Size | 125mm*130mm*150mm | |
| Shenzhen Richmor Technology Development CO.,LTD [ 100% OEM Manufacturer, Quality Assured, Price Competitive] | |
|
Contact: Ada Lin Mob: + 86 189 38073583 Skype/Whatsapp: + 86 189 38073583 Company Add: 5th Floor, D Building, Bantian International Center, Bantian, Longgang District, Shenzhen, China. | |
