Temperature Pressure Relief Valve for Industrial Bag Filter Equipment Dust Collector

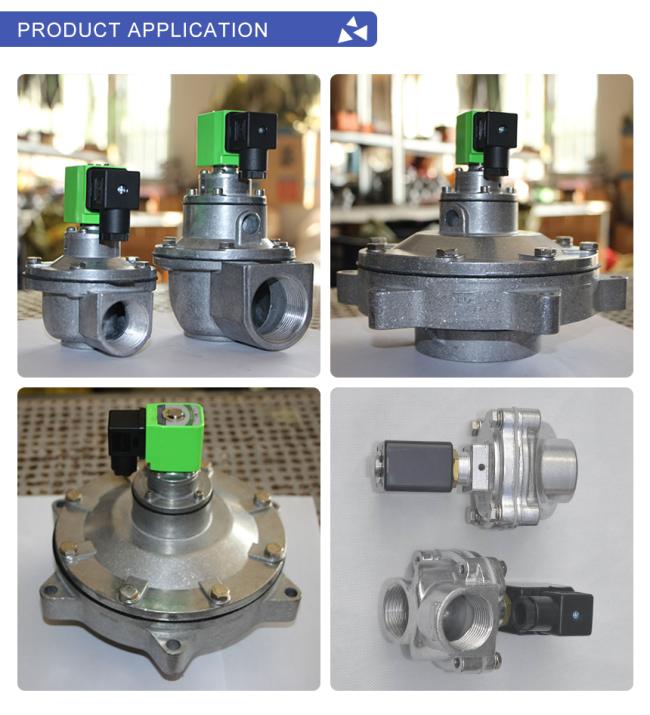

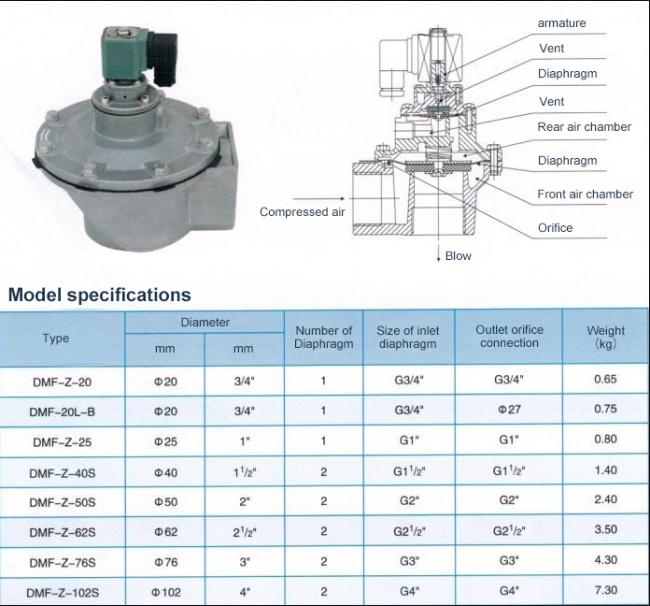

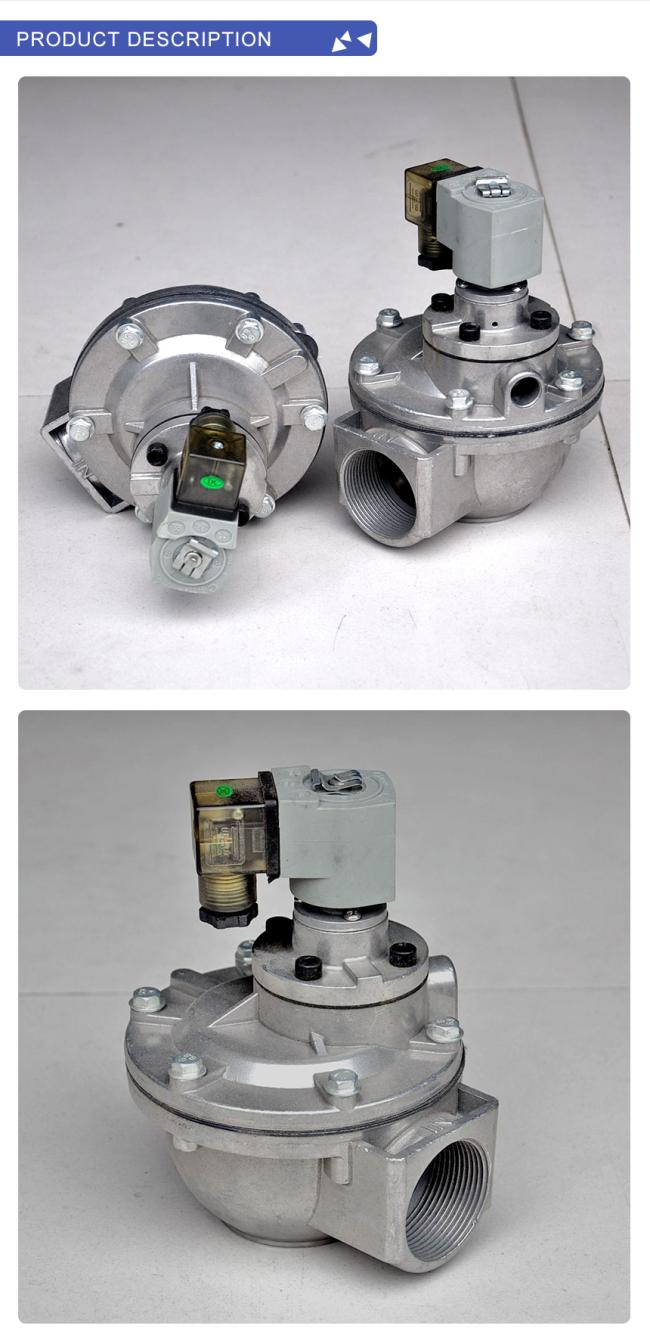

Pulse Solenoid Valve is the actuator and key component of the pulse blowing ash cleaning device, which is mainly divided into three types: Right angle type, submerged type and straight-through type, each class has 6 specification interfaces from 20~76mm(0.75 ~ 3in). The air consumption of each valve during one blow is 30~600m³/min(0.2~0.6MPa).

How to choose the specification and quantity of Pulse Solenoid Valve of bag filter:

First of all, we should look at the layout of the filter bag, that is, how many rows and columns are there in the particle hole, and each column or row is equipped with a pulse valve. The specification of pulse valve can be basically determined according to the quantity, diameter and length of filter bag.After determining the parameters of the dust collector, the designers of the bag filter determine the required pulse valve through selection according to the requirements of dust cleaning.
