Details The Customer Request Pulse Bag Dust Catcher Filter for Industrial Dedusting
Pulse bag dust catcher filter for Industrial dedusting
All our products can be customized. Any size, shape, design, logo will meet your requirements. We will be grateful if you can provide the following information before the quotation.
1. Type of dust treatment
2. Handling the composition and temperature of dust
3. Handling air volume
4. You can use the power parameters
5. Is there any need for additional installations such as ladder guardrails?
Please provide your design plan, if you are not sure, we will recommend it for you. With the above information, we can immediately report the exact price.

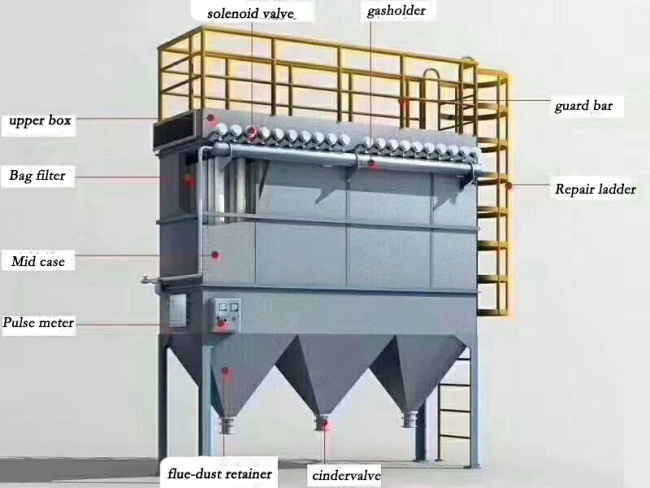

DUST COLLECTOR SCHEMATIC:
•BAG DUST REMOVEL PROFILE
- Customize design as per client's requirement
- The bag dust removing can dust filtration and air purification.
- Integral pre-separation chamber, down flow inlet air pattern
- Wide range of discharge options
- The product has a good dust removal effect for larger proportions such as metal cutting, foundry sand and medium-gravity dust, such as cement and lighter-weight non-fibrous dust
- Bag dust removing efficiency of more than 99.9%.
| Model | Filter area (m²) | Air valume (m³/h) | Pulse valve(piece) | Filter bag(piece) | Filter bag size(mm) | Power (kw) | Body size(mm) | Weight (kg) |
| YT-01MC24 | 18 | 2160-4300 | 4 | 24 | Φ133*2000 | 2.2 | 1420*1430*2800 | 610 |
| YT-01MC32 | 24 | 2800-3150 | 4 | 32 | 3 | 1550*860*2800 | 694 | |
| YT-01MC36 | 27 | 3250-6480 | 6 | 36 | 3 | 1200*1200*2800 | 710 | |
| YT-01MC48 | 36 | 4320-8630 | 6 | 48 | 4 | 1550*1200*2800 | 848 | |
| YT-01MC64 | 45 | 5400-10800 | 8 | 64 | 5.5-7.5 | 1540*1540*4400 | 990 | |
| YT-01MC72 | 54 | 6450-12900 | 8 | 72 | 7.5 | 1710*1540*4400 | 1080 | |
| YT-01MC80 | 63 | 7550-15100 | 8 | 80 | 7.5 | 1880*1540*4400 | 1138 | |
| YT-01MC96 | 72 | 8650-17300 | 12 | 96 | 7.5-11 | 2220*1540*4400 | 1324 | |
| YT-01MC120 | 90 | 10800-20800 | 12 | 120 | 15 | 2220*1880*4600 | 1760 |

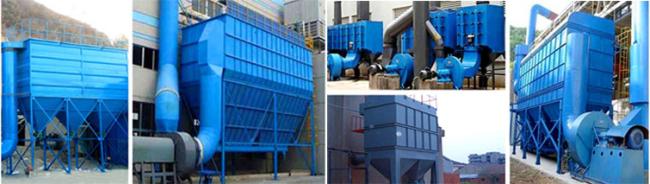

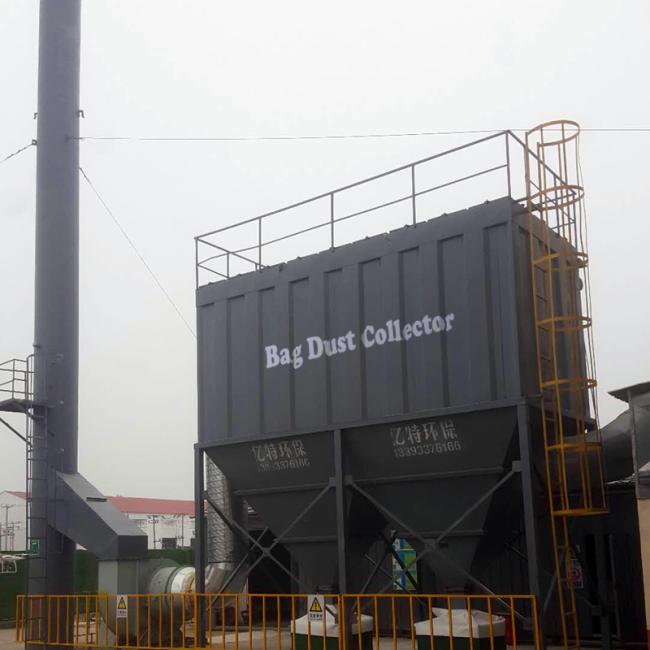

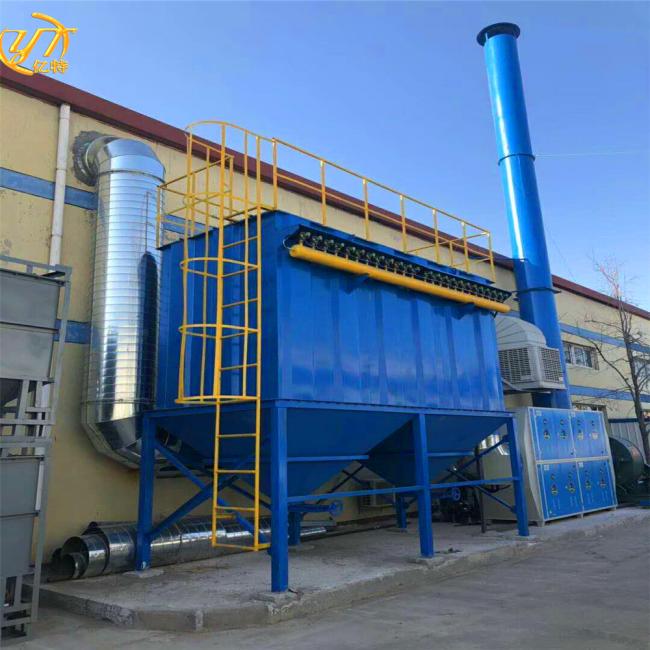

•DUST COLLECTOR PHOTO
•DUST COLLECTOR FEATURE
- The complete installation is designed to occupy a minimum amount of floor
- It can be assembled on site without any requirement of the expertise manpower.
- The units are of fully welded construction.
- It has no moving part, which guarantees a long life.

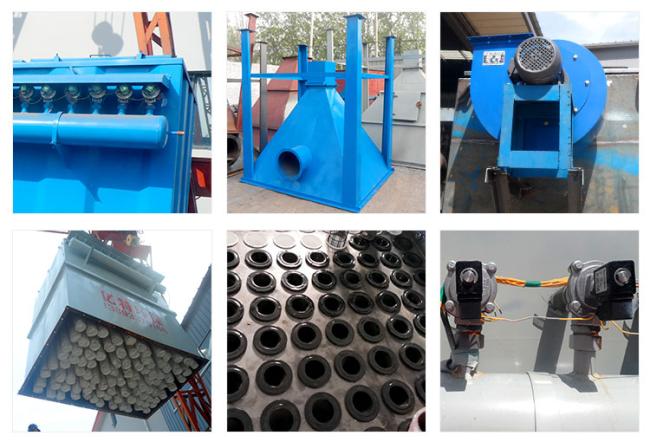

•BAG DUST REMOVING DETAILS

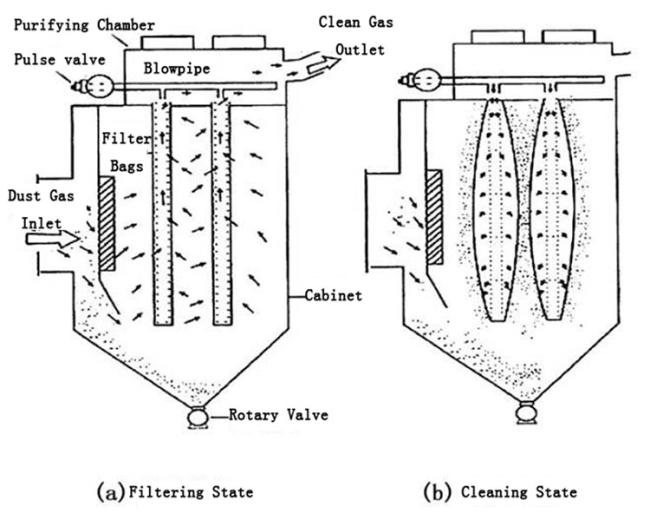

•WORKING PRINCIPLE
Dust collector are applied to foundry, boiler, workshop, flour mill, grain processing plant, steel mill, power plant,chemical plant, pharmaceutical factory,etc.
1.Products have passed ISO9001
2.We have excellent after-sale team to provide excellent after-sales service.
3.Guarantee 24 hours to reply to the buyer in time
Q1.Are you a factory and trading company?
A: We are a factory
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
