Insulation Material Bare AAAC Overhead Electric Cable for Low Voltage Applications
Price:
$0.20 - $2.80/meters
MOQ:
1000 meters
Delivery Time:
Negotiable
Brand:
Zhufeng
Product Description
Product Description
Specification
item | value |
Place of Origin | China |
Hebei | |
Brand Name | Zhufeng |
Model Number | AAAC Cable |
Insulation Material | Bare |
Type | LOW VOLTAGE |
Application | Overhead,Underground |
Conductor Material | Aluminum |
Jacket | NO |
Material Shape | Round Wire |
Range of Application | Overhead, Underground |
Specification | As customer request |
Voltage | 0.6/1KV |
Color | Silver or customized |
Number of Cores | 1core/2core/3core/4core/5core |
Certification | ISO9001, CE, CCC |
PRODUCT APPLICATION

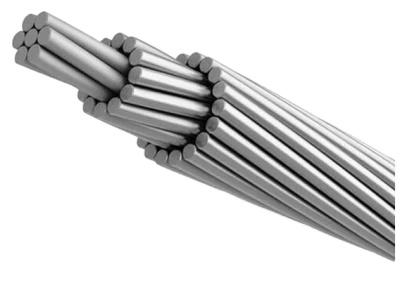

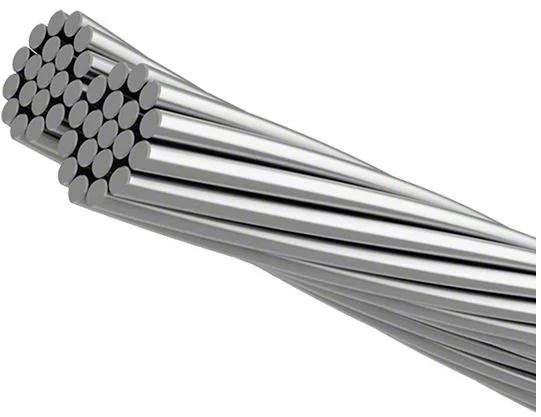

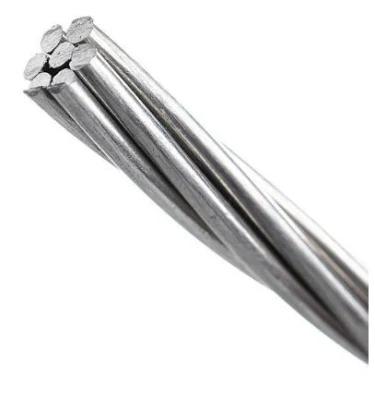

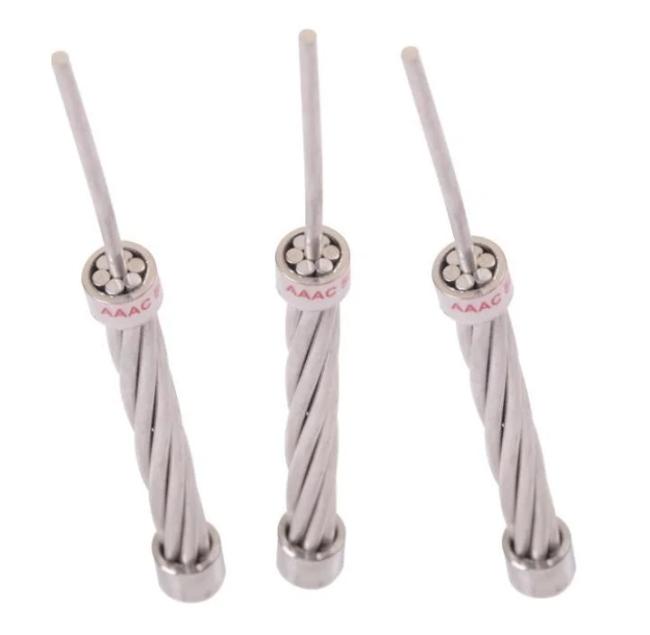

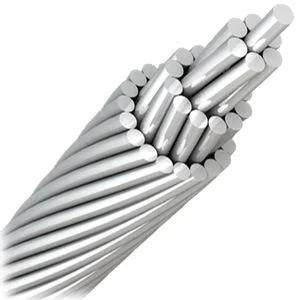

Aluminum Electrical Conductor AAAC Cable Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines, when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
(3)AAAC referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to replace the conventional ACSR.
Aluminum Electrical Conductor AAAC Cable Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines, when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
(3)AAAC referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to replace the conventional ACSR.
