Insulated Flexible H07RN-F High Voltage Wire with 1/2/3/4/5/3 1 Core Silicone Rubber
Price:
$1.33/meters 1000-4999 meters
MOQ:
1000 meters
Delivery Time:
Negotiable
Brand:
zhufeng
Product Description
PRODUCT DETAILS

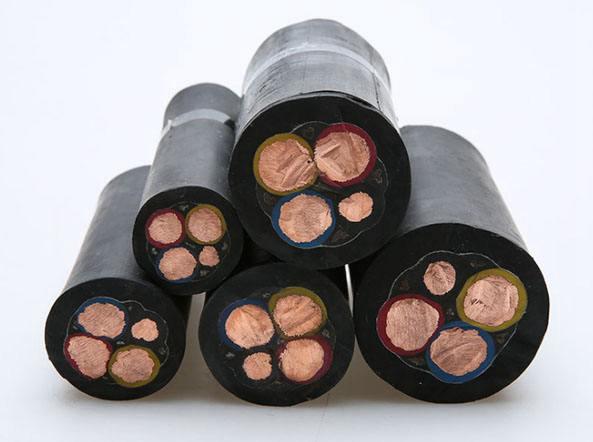

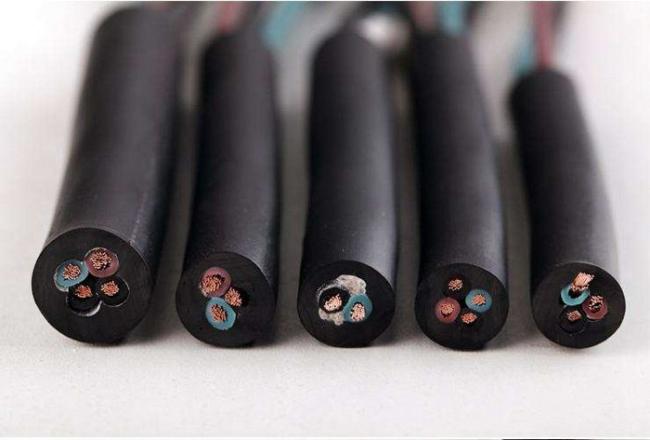

rubber cable characteristics
YC: Heavy duty flexible rubber sheathed cable YZ: Medium flexible rubber sheathed cable YQ: Light duty flexible rubber sheathed cable YH: Flexible rubber cable for mobile welding machine, also known as welding handle wire JHS: copper core waterproof rubber cable, also known as submersible pump special waterproof rubber flexible cable YCW: heavy duty flexible rubber sheathed oil resistant cable
Rubber sheathed cable is a kind of flexible and movable cable with multiple strands of fine copper wire as conductor and rubber insulation and rubber sheath. Generally speaking, including general flexible rubber cable, welding cable, submersible motor cable, radio cable and photographic light source cable and other varieties.
Mainly suitable for all kinds of electrical appliances, power tools and all kinds of mobile electrical equipment or light mobile electrical equipment, or for temporary construction on the site, and can be used in indoor or outdoor environmental conditions. According to the external mechanical force of the cable, the product structure is divided into light, medium and heavy categories. The rated voltage is 450/750V, and the implementation standard is GB5013.2-97.
All kinds of cables produced by ZHUFENG CABLE have good insulation, certain acid and alkali resistance, oil resistance and moisture resistance. The insulation materials used, whether hardness, wear resistance, corrosion resistance, or impact resistance, have been improved.
Rubber sleeve cable is not only simple in structure, easy to use, but also has excellent electrical insulation, physical and mechanical properties, combustion resistance, chemical resistance, impact resistance, wear resistance, moisture resistance. The cable has the highest long-term permissible working temperature (60℃) and large current transmission capacity
PRODUCT SPECIFICATIONS
product name | General purpose rubber sheathed cable | specification | 1.5/2.5/4/6/10MM2 |
model number | YC | core number | 1/2/3、4/5/3+1 |
standard | JB/T8735.2 | rated voltage | 450/750V |
conductor material | copper | jacket | rubber |
insulation material | rubber | armour | / |
application | Be applicable to power supply of ambulation electric appliances equipment and tools | conductor tallest temperature | 60°C |
