2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
Price:
$178.80/pieces 1-19 pieces
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
BGT
Product Description
Please Attention
Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:
Product Description

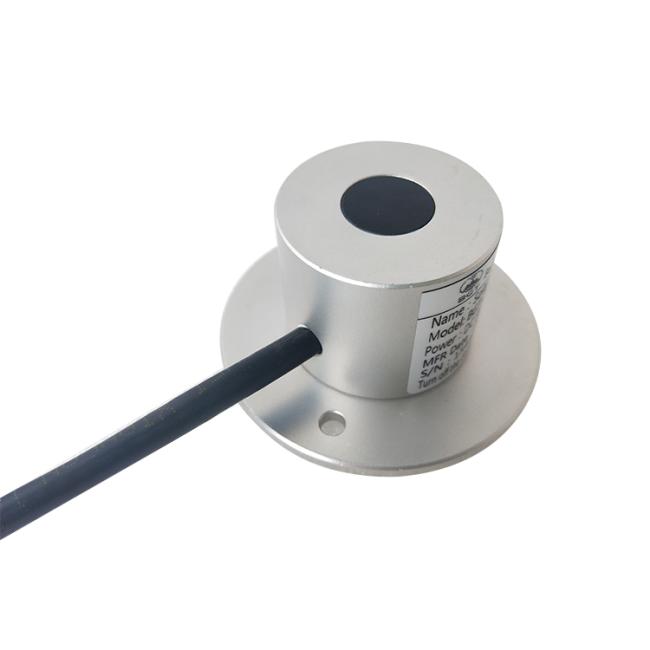

BGT-ZW Solar Ultraviolet Radiation (UV) Sensor (Transmitter)

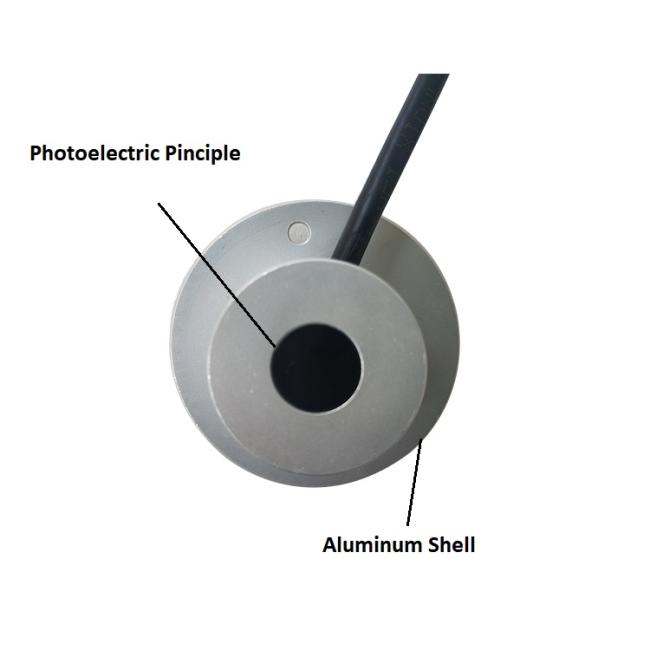

BGT-ZW Solar UV Sensor adopts the photoelectric detector to receive the ultraviolet wave electrical signal. This product is one kind of precision instruments which is used to measure the solar ultraviolet radiation from the atmosphere (UVAB wavelength range), used in conjunction with the data logger, which can provide information on the public concern: the UV index, UV erythema measuring, the effects of the UV on person health and UV special biology and chemistry. Therefore, it is highly valued in meteorology, industry, architecture and medicine, and widely used in the study of erythema dose caused by exposure, comprehensive environmental ecological effect, climate change and ultraviolet monitoring and prediction
Technical Parameters
Item No. | BGT-ZW | ||||||
Spectral range | 280~400nm | ||||||
Power Supply | DC5V/12V/24V | ||||||
Measuring range | 0-400W/m2 | ||||||
Output method | 0-2.5V/0-5V/4-20mA/RS485 | ||||||
Accuracy | ±5% rdg | ||||||
Response time | ≤1s | ||||||
Cosine correction | ≤±4%(Solar elevation angle=30°) | ||||||
Non-linear | ≤±3% | ||||||
Ingress Protection | IP65 | ||||||
Material(Shell) | Aluminum | ||||||
Working environment | Temperature: -50℃～50℃ Humidity: ≤100%RH | ||||||

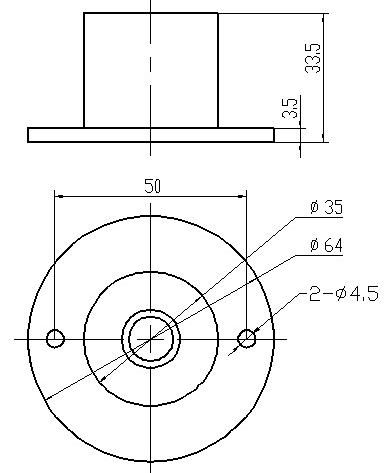

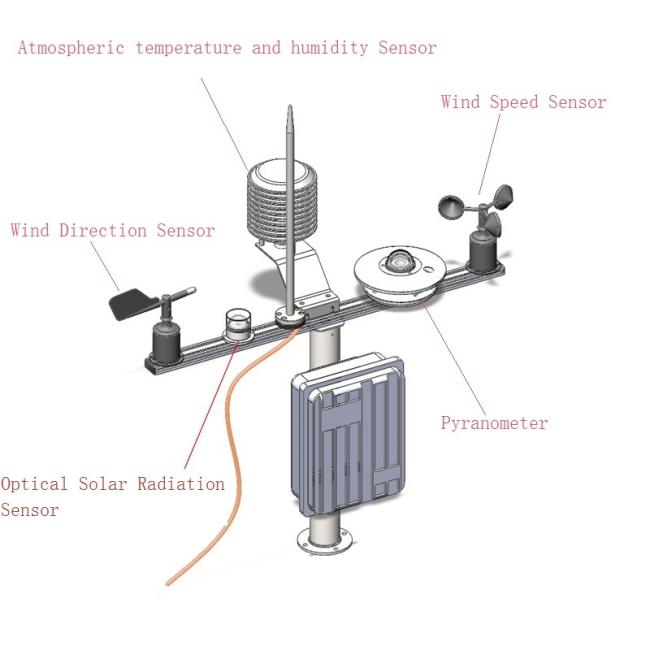

Installation
1. Ensure that the mounting bracket is parallel to the ground;

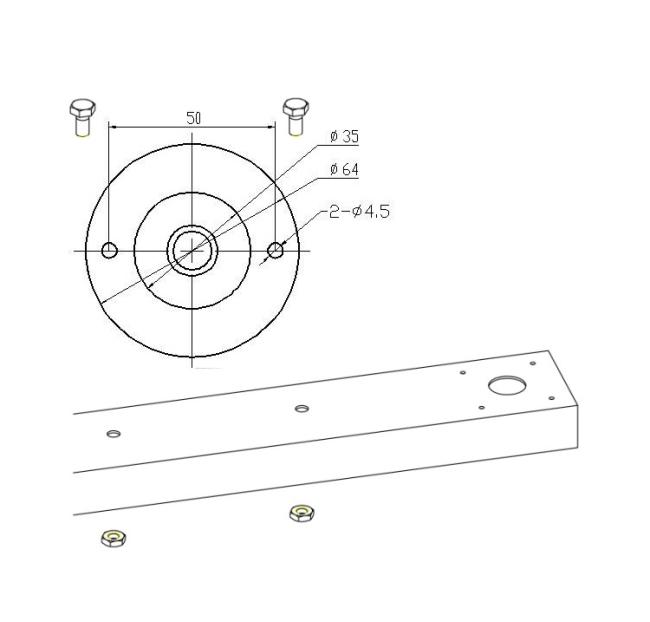

2. As shown in the figure, use screws and nuts to fix the sensor on the mounting bracket through two mounting holes of the sensor;
3. Please avoid removing the sensor during installation.
3. Please avoid removing the sensor during installation.

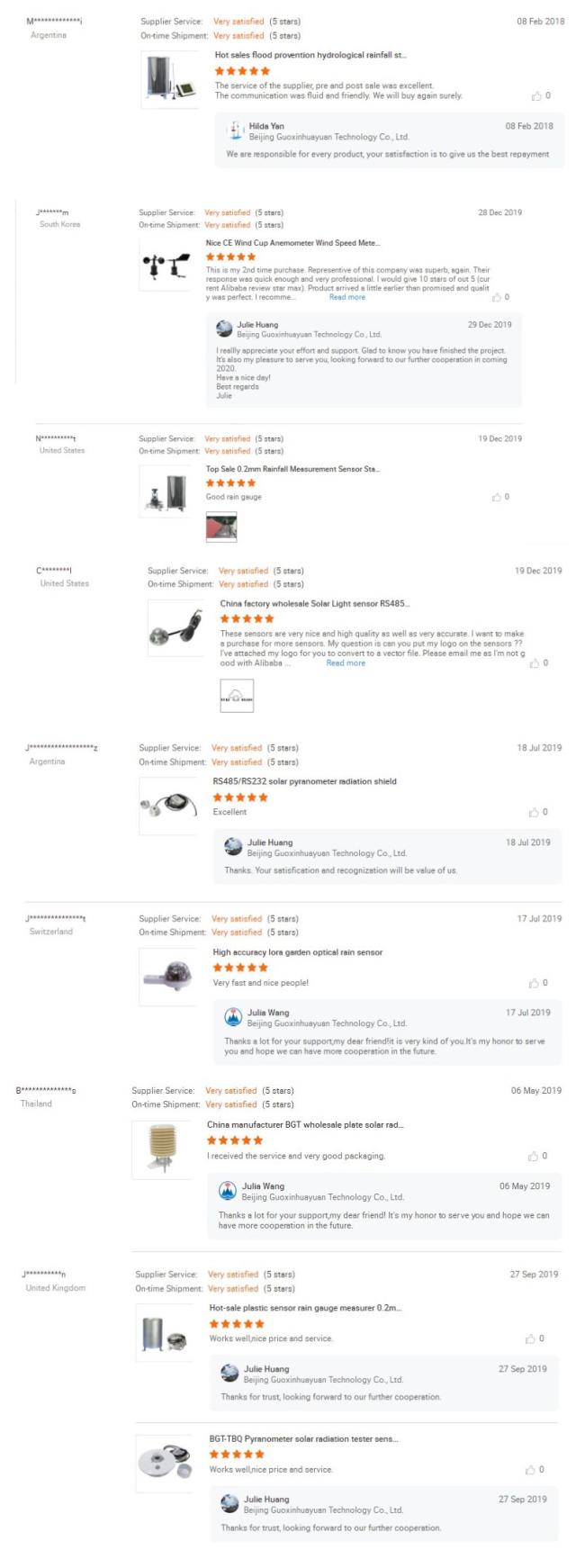

Good feedback from our customers
Application

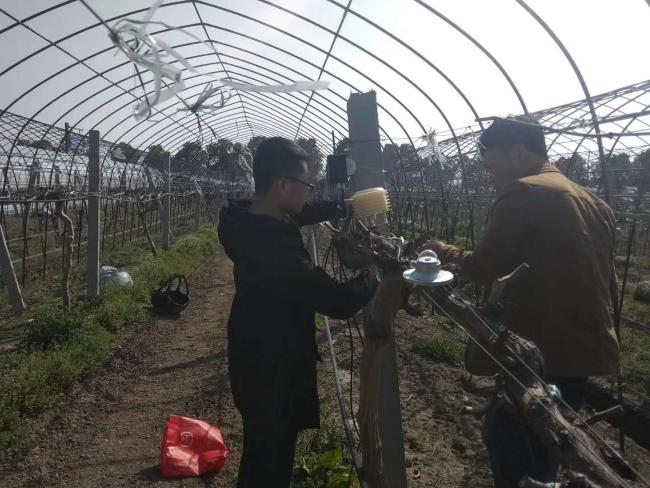

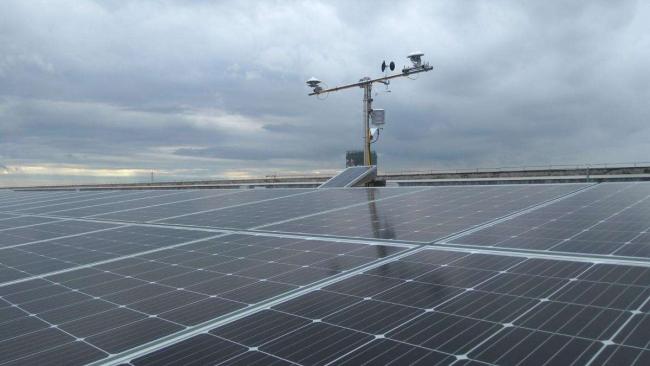

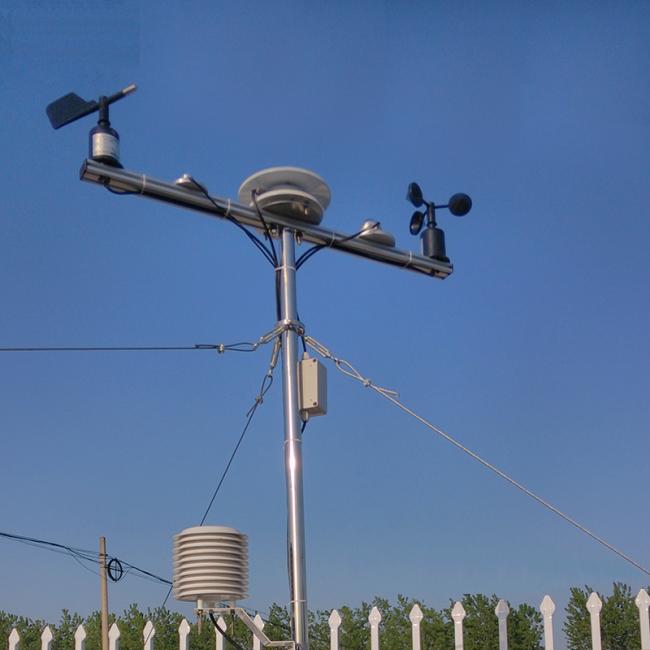

Weather Station PV Monitoring Station Agriculture
Ordering process
--In order to send you the specific quotation, please feel free to tell us the following information:
1. The power supply you required -- We have DC5V / DC12V /DC24V for your choices.
2. The output method you required -- We have 4-20mA/0-5V/0-2.5V/RS485/RS232 for your choices.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
4. The quantity you want to order-- Sample is also welcome.
5. Price-- EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
4. The quantity you want to order-- Sample is also welcome.
5. Price-- EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
