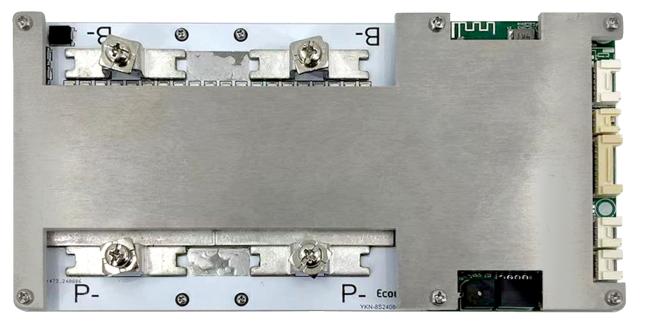

YKN-BMS4S Smart BMS Protection Board For Energy Storage/Street light Battery Pack
The EcoLite YKN-BMS4S, a cutting-edge 4S Battery Management System (BMS) engineered to optimize and protect 4-series lithium iron phosphate (LiFePO4) battery packs. Built with an integrated aluminum substrate, this BMS combines robust protection, intelligent management, and versatile compatibility, making it a premier choice for small energy storage systems, street lights, 12V lead-acid replacement lithium batteries, and more.



Products	Techincal Parameters
YKN-BMS4S(Bluetooth)	Basic Parameters
	Cell specifications	4 series of lithium iron phosphate cells
	Interface type	Charge and discharge are both at the same port
	Charging Voltage	14.6V
	Cell voltage range	8.8~15V
	Continuous charging current	≤200A
	Continuous discharge current	≤200A
	Consumption of running	≤25mA
	Consumption of sleep	≤300uA
	Operating temperature	-30℃~75℃
	Size(L*W*H)	200mm*100mm*20mm

Key Advantages of This 4S BMS:
Enhanced Thermal Management with Aluminum Substrate: The integrated aluminum substrate ensures superior heat dissipation, critical for maintaining stable performance during high-current operation (up to 200A continuous charge/discharge). This thermal efficiency extends the BMS’s lifespan and reliability, even in harsh environments—ideal for outdoor or industrial applications.
Comprehensive Protection Suite: Equipped with hardware-level safeguards, including overvoltage, undervoltage, overcurrent, high/low temperature, and short-circuit protection, this 4S BMS acts as a robust shield for your LiFePO4 battery packs, preventing damage and ensuring operational safety.
Intelligent Cell Balancing: Supports customizable balancing parameters (starting voltage, voltage difference) with options for charge balancing or static balancing. This feature ensures uniform cell voltage across the 4-series pack, maximizing capacity utilization and extending battery cycle life.
Multi-Communication Capabilities: Standard support for Bluetooth, RS485, and CAN communication enables real-time monitoring and data logging. Optional UART communication further enhances integration flexibility for smart systems.
Low Power Consumption: Automatically enters sleep mode during inactivity, reducing power draw to ≤300µA—perfect for energy-sensitive applications like street lights or backup storage.
Flexible Scalability: Supports series and parallel connection of battery packs, allowing easy expansion to meet varying power demands.

Ideal Applications for YKN-BMS4S:
This 4S BMS is tailored for:

Small energy storage batteries (residential or commercial mini-ESS).
LED street lights and outdoor lighting systems.
12V lead-acid replacement lithium batteries (for mobility scooters, UPS, etc.).
Portable power stations and backup power units.
Low-voltage industrial equipment requiring stable battery management.


Technical Specification of the 4S BMS:
Compatibility: 4-series LiFePO4 battery packs
Charge/Discharge: Shared port design | Continuous current: ≤200A (charge/discharge)
Voltage Parameters: Charging voltage 14.6V | Cell voltage range 8.8-15V
Temperature Management: 4-way cell temperature detection + 1-way power temperature monitoring | Operating temp: -30℃~75℃
Communication: Standard Bluetooth, RS485, CAN | Optional UART
Power Consumption: Running: ≤25mA | Sleep: ≤300µA
Dimensions: 200mm100mm20mm (compact design for easy integration)
