Anti-Seepage Function Black HDPE Geomembrane Waterproof Board for Blow Molding Production
Blow molding production 3 mm HDPE geomembrane waterproof board
| Item | standard | ||||||
| Thickness (mm) | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
| Density ≥ | ≥0.940 | ||||||
| Strength at yield,N/mm≥ | 11 | 15 | 18 | 22 | 29 | 37 | 44 |
| Breaking strength N/mm≥ | 20 | 27 | 30 | 40 | 53 | 67 | 80 |
| Elongation at yield,%≥ | 12 | ||||||
| Elongation at break (%)≥ | 700 | ||||||
| Tear Resistance , N≥ | 93 | 125 | 160 | 190 | 250 | 315 | 375 |
| Puncture Resistance N≥ | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| Stress Crack Resistance, hrs | 300 | ||||||
| Carbon Black Content, % | 2.0-3.0 | ||||||
| Carbon Black Dispersion | 1 or 2 | ||||||
| Standard OTI Min≥ | 100 | ||||||
| High Pressure OTI Min≥ | 400 | ||||||
| 85\°C oven aging%≥ | 55%(after baking 90d,standard OIT retention) | ||||||
| Anti ultraviolet %≥ | 50%(UV irradiation 1600h,standard OIT retention) | ||||||

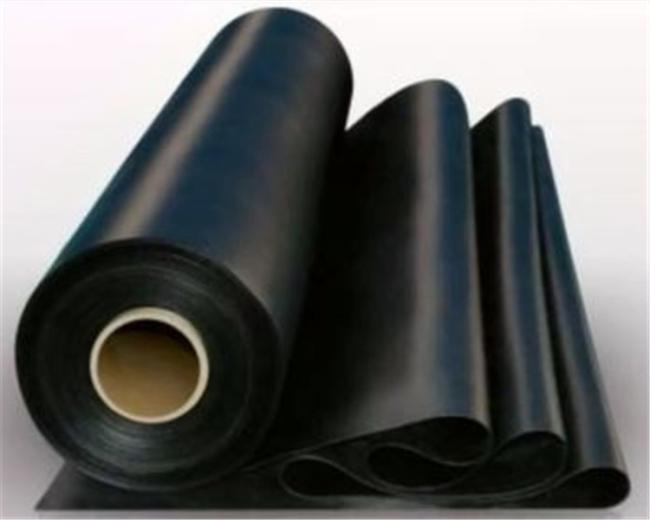

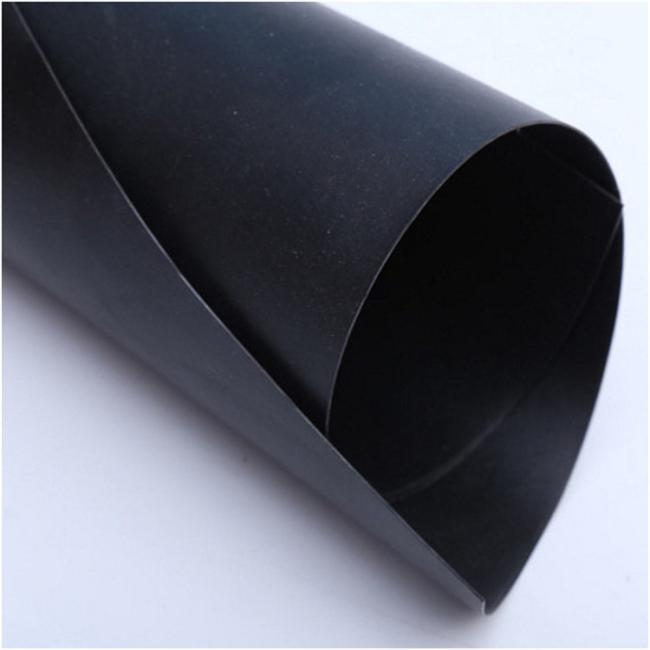

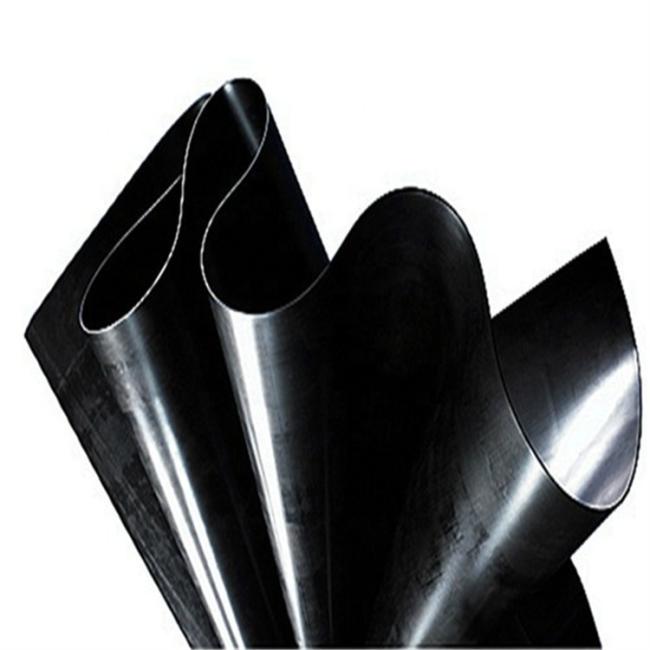

HDPE geomembrane can be named impermeable membrane, geomembrane, HDPE membrane, polyethylene membrane, waterproof membrane and the like.HDPE geomembrane is composed of 97.5% high density polyethylene, about 2.5% carbon black, anti-aging agent, antioxidant, UV absorber, stabilizer and other accessories. It adopts the most advanced Italian automatic geotechnical production equipment, layer coextrusion technology and complete product specifications.
Geomembrane is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications. is made from polyethylene resins materials by blow molding process.According to the different raw materials, Geomembrane can be divided into HDPE geomembrane,LDPE Geomembrane.

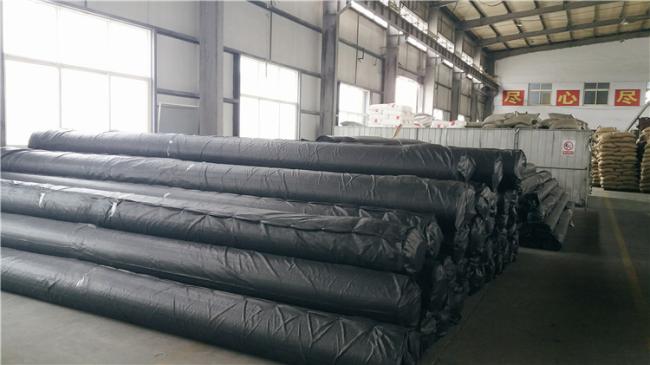

Woven bag packing

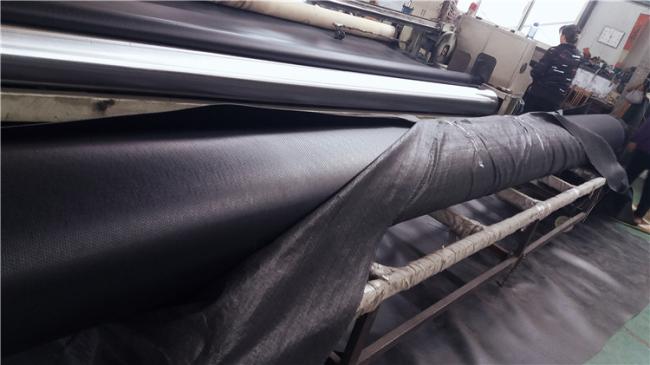

Shandong hundred million bo sun engineering materials co., LTD. Is a collection of product research, development, production, installation and after-sales service into a comprehensive high-tech enterprises. The company mainly produces various specifications, geotextile, composite geomembrane, geogrid, HDPE geomembrane, bentonite waterproof blanket, prevent aging geotechnical woven bag and all kinds of geotechnical material such as dust-proof net, sun-shade net, woven bag. The company has advanced two production lines for the non-woven equipment is 6.6 meters, 6.6 meters composite membrane equipment, each a film equipment, blow molding machine, bentonite waterproof blanket equipment each a number, warp knitting machine, wire drawing machines.
Company's products have been widely used in roads and railways, Bridges, tunnels, libraries, canal water conservancy anti-seepage, reclamation of levelling, landfill, mining area, and many other industries, salt industry, chemical industry, agriculture and fisheries. In each big in the field of engineering construction has stood the test of various engineering conditions, obtained satisfactory result of engineering, won the customer consistent high praise.
It provides various specifications of geomembrane, HDPE geomembrane, geotextile, composite geomembrane, Geosynthetic Clay Liners and other geosynthetics.
The products are widely used in aquaculture, highway, railway, tunnel, reservoir water conservancy, artificial lake, environmental protection, mining, agriculture, garden, water conservancy, petrochemical and other major fields.
1. Factory lab to test the composite geomembrane quality.
2. Free Sample to see our quality.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Can you do OEM?
A1. Yes.of course.We can produce the products as per your request.
If you can offer samples to us,it will be more convenient.
Q: How long is your delivery time?
A: Generally it is 5-10 days . It is according to quantity.
Q: How can I get a sample to check your quality?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q: Can you provide the after-sales installation?
A: yes, we can provide the the installation service.
