IP31 Transparent LED Screen On Glass Panels Adhesive Film For Window

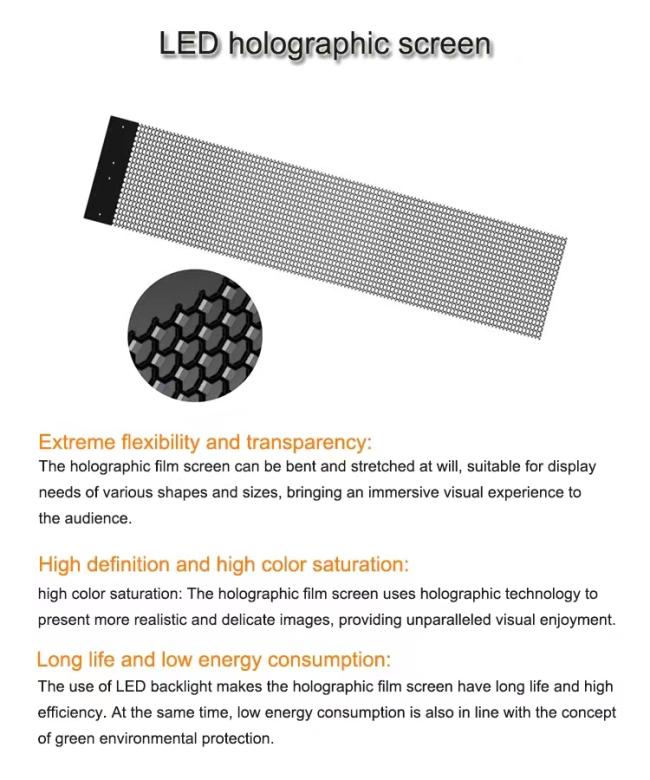

Transparent LED Screen Indoor Outdoor Glass Transparent LED Film Display Panels
PRODUCT FEATURE

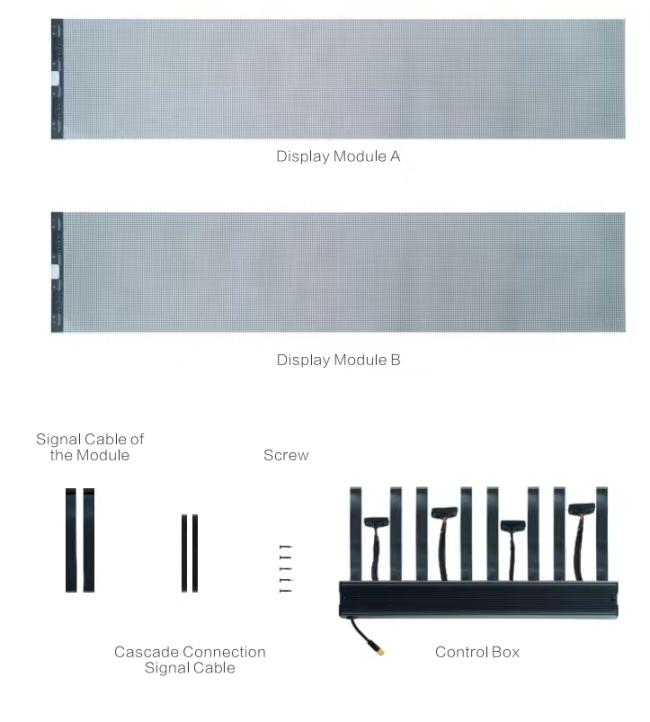

1. The TLD series adopts 2020GGB magic lantern beads, and is composed of unitmodules

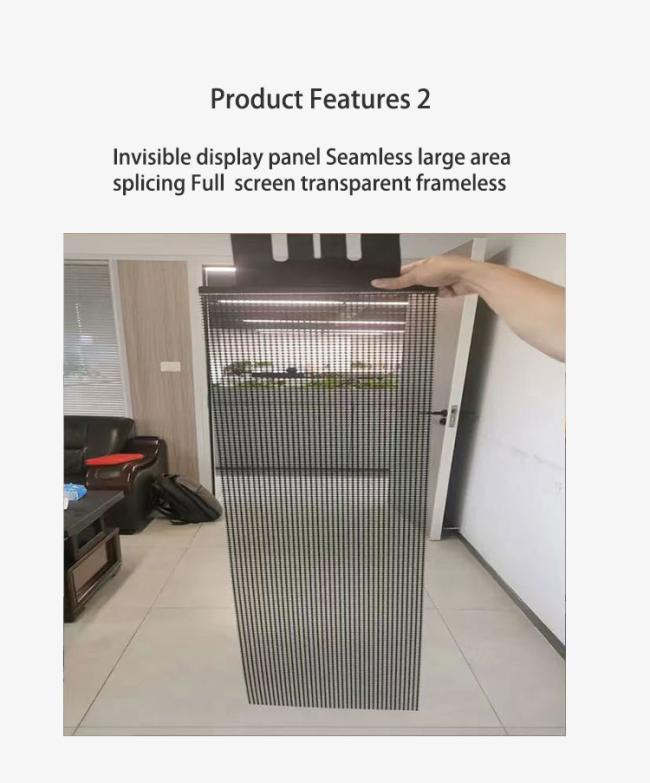

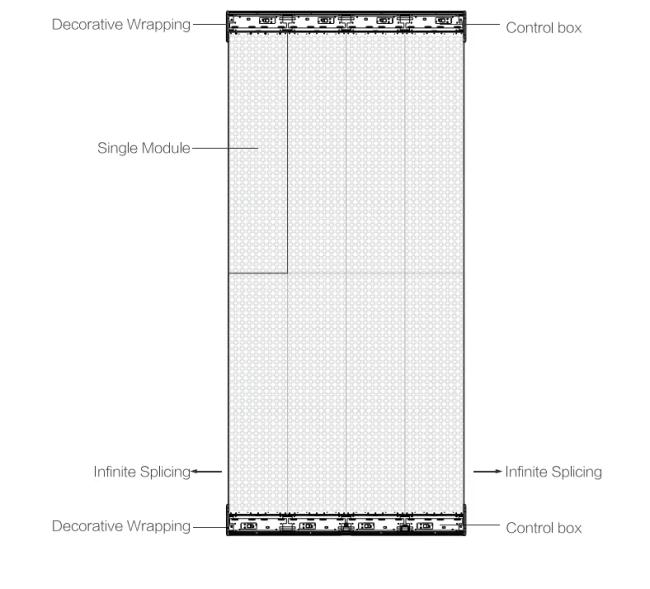

2. Any size LED display can be formed by splicing modules;
3. The light transmittance exceeds 80%, which does not affect indoor wind collection;
4. Wide voltage input power supply: AC90-264V 50/60Hz;
5. Support multiple file formats: display text, image, video and other screens
6.Support mobile phone, computer file WlFl, 5G remote transmission;
7. The whole machine provides a 3-year quality guarantee;

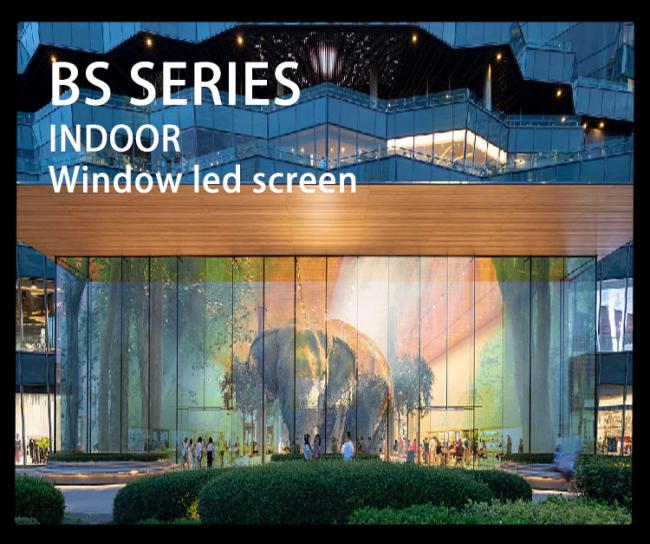

8. Widely used in glass curtain wall, quantitative lighting, advertising media, spacedecora- tion, partition decoration, home design, commercial display, functional signage
| Model | JF 2.6-5.2 | JF 3.91-7.81 | JF 7.81-7.81 | JF 10.4-10.4 |
| Pixel Pitch(mm) | P2.6-5.2 | P3.91-7.81 | P7.81-7.81 | P10.4-10.4 |
| Pixel Density(dot/㎡) | 73,728 | 32,768 | 16,834 | 9,216 |
| Module Size(mm*mm) | 192x24 | 128x16 | 64x16 | 48x12 |
| Module Resolution(dot*dot) | 84*84 | 64*64 | 52*52 | 52*52 |
| Cabinet Size(mm*mm*mm) | 1000x500mm | 1000x500mm | 1000x500mm | 1000x500mm |
| Cabinet Resolution(dot*dot) | 384x96 | 256x64 | 128x64 | 96x48 |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Transparancy | >42% | >65% | >65% | >75% |
| Cabinet Weight(kg) | 10 | 10 | 10 | 10 |
| Brihtness(cd/㎡) | 800-4500CD | 800-4500CD | 800-4500CD | 800-4500CD |
| Refresh Rate(hz) | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Gray Scale(bit) | 14 | 14 | 14 | 14 |
| Viewing Angle(deg) | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 |
| Max Power Consumption(w/㎡) | 800 | 800 | 800 | 800 |
| Ave Power Consumption(w/㎡) | 270 | 270 | 270 | 270 |
| Input Voltage(V) | 100~240 | 100~240 | 100~240 | 100~240 |
| Working Temperature(℃) | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
| Operation Humidity(rh) | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Ingress Pritection | IP65 | IP65 | IP65 | IP65 |
| Working Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Life Span(H) | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
