LED Screen Renta 140° View Angle IP30 500*1000mm P2.6 l for Stage and Conference Room
Flat-screen display solution.
Specially designed K-series flat-screen version, allowing customers to quickly create a sleek, high-flatness display with
reduced seams for improved panel alignment. Its high brightness and high refresh rate ensure it's always ready to create
spectacular moments for the audience, leaving a perfect visual memory of the stage.

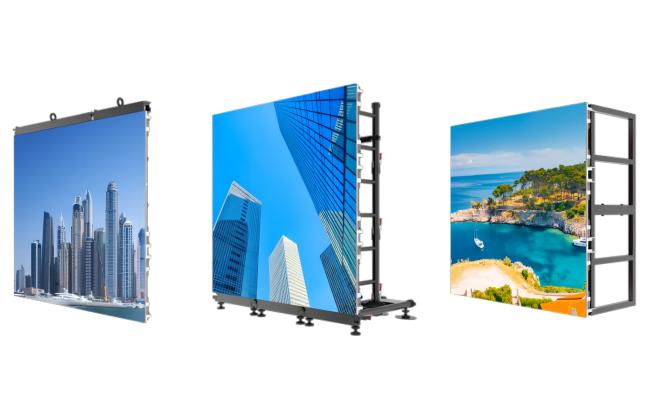

Multiple installation methods, flexible configurations.
The K series supports both hanging and stacking installations, helping customers easily adapt to a variety of setup environments. Additionally, it offers a crossbar mounting solution to help customers save on both labor and material costs.
| Model | 1.9i | 2.6i | 2.9i | 3.9i | 4.8i |
| Pixel Pitch(mm) | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel Density(dot/㎡) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 |
| Cabinet Resolution(dot*dot) | 256*256 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight(kg) | 7.5 | 7.5/12 | 7.5/12 | 7.5/12 | 7.5/12 |
| Brihtness(cd/㎡) | 800~1000 | 800~1000 | 800~1000 | 800~1000 | 800~1000 |
| Refresh Rate(hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Gray Scale(bit) | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle(deg) | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 |
| Max Power Consumption(w/㎡) | 440 | 440 | 440 | 440 | 440 |
| Ave Power Consumption(w/㎡) | 132 | 132 | 132 | 132 | 132 |
| Input Voltage(V) | 100~240 | 100~240 | 100~240 | 100~240 | 100~240 |
| Working Temperature(℃) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
| Operation Humidity(rh) | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Ingress Pritection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Life Span(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
