Wholesale Outdoor Led Screen Advanced 1ftx2ft Modular LED Panel From TEWEI - Anti-Dusty And Seamless
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
20-25 days
Brand:
TEWEI
Product Description
Features:
- Lightweight and easy to install: The panel weighs only 3.9kg/8.6lbs, making it much easier to handle and install than traditional LED panels.
- High brightness: With a brightness of up to 10,000nits, the panel can be easily seen in direct sunlight.
- Waterproof: The IP67 rating ensures that the panel is protected from water and dust, making it suitable for outdoor use.
- Modular design: The modular design allows for easy customization and expansion of the display.
- Wireless control: The panel can be controlled wirelessly via a mobile app or other device, making it easy to manage and update content.
Product Descriptions:

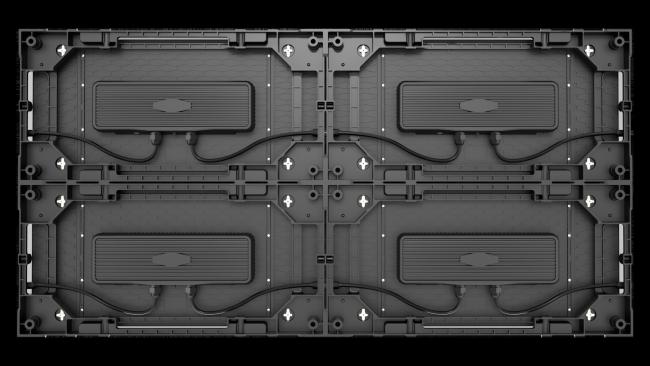

- TEWEI is a modular LED panel with an integrated power box, offering high brightness and a super lightweight design.
- It features a thin cabinet depth of only 64mm, saving shipping space and installation costs.
- The panel has a high-resolution display with a pixel pitch of 4.7625mm, 6.35mm, or 9.525mm.
- TEWEI is also waterproof with an IP67 rating, making it suitable for outdoor use.
- It comes with a 3-year warranty (5 years for 10000nits) for added peace of mind.
Applications:

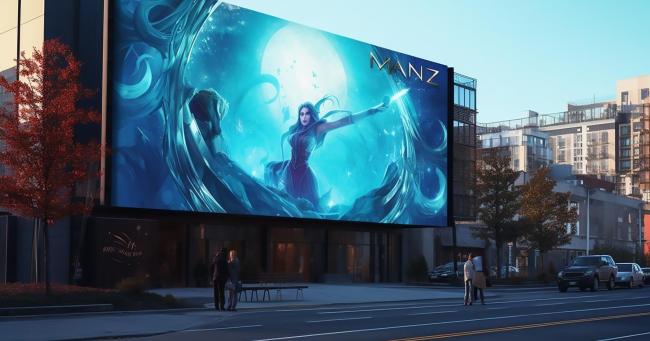

- Outdoor cinemas and entertainment venues for immersive viewing experiences.
- Public installations and city beautification projects for artistic and informational displays.
- Outdoor educational displays for schools, museums, and cultural institutions.
- Wayfinding signage and directional displays for parks, campuses, and large venues.
- Emergency broadcast systems and public safety displays for municipalities and government agencies.
| Model | P4.7 | P6.3 | P9.5 |
| Pixel Pitch(mm) | 4.7625mm | 6.35mm | 9.525mm |
| Pixel Density(dot/㎡) | 44100 | 24649 | 11025 |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Module Size(mm*mm) | 1ft*2ft (304.8x609.6mm) | ||
| Module Resolution(dot*dot) | 64 x 128 | 48 x 96 | 32 x 64 |
| Driving Mode | 1/8 scan | 1/6 scan | 1/2 scan |
| Module Pixels | 8192 | 4608 | 2048 |
| Cabinet Size(mm*mm*mm) | 1ft*2ft (304.8x609.6mm) | ||
| Cabinet Resolution(dot*dot) | 64 x 128 | 48 x 96 | 32 x 64 |
| Cabinet Material | Aluminum | ||
| Minimum ViewingDistance | ≥4m | ≥6m | ≥9m |
| Cabinet Weight(kg) | 8.6lbs / 3.9kgs | ||
| Brihtness(cd/㎡) | 6000-7000 | 6000-9000 | 6000-10000 |
| Refresh Rate(hz) | 1920Hz~3840Hz | ||
| Gray Scale(bit) | 13-24 | ||
| Viewing Angle (HA) | H:160°/V:160° | ||
| Max Power Consumption(w/㎡) | 800 | ||
| Ave Power Consumption(w/㎡) | 230 | ||
| Input Voltage(V) | AC110V-AC220V@ 50Hz/60Hz | ||
| Working Temperature(℃) | -20℃~45℃ | ||
| Operation Humidity(rh) | 10% ~ 90% | ||
| Ingress Pritection | IP67 | ||
| Working Environment | Outdoor | ||
| Life Span(H) | 100000 | ||
| System | Windows (win8, Win10 etc.) | ||
| Signal Source Compatibility | DV,HDMI13.DP1.2.SD1.HDMI2.0.etc. | ||
| Certificate | CE/ETL/FCC | ||
