Product Description:

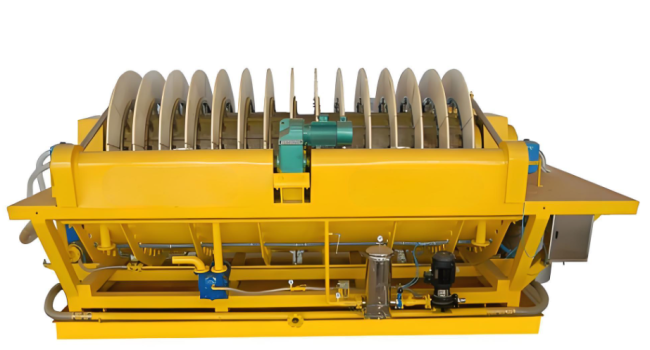

Disc filter is a kind of continuous vacuum filtration equipment, it is mainly consisted with tank, main shaft, filtrate disc, distribution valve, material stripping device washing unit, drive unit, discharge unit etc.

The filter disc is the core component of disc filter. A special grooved or ridged filter discs formed a certain dimensional channel, it can block the particle size larger than this channel to achieve the purpose of filtration. The disc filter has an excellent performance and lower consumption than traditional mechanical devices.

Working Principle:

The filter disc absorbs the slurry through holes by the function of vacuum negative pressure and form piled material layer. The filtrate shall be discharged from inside of filter plate through pipes, distribution valve and discharging tank.

After transferring the cake out of hopper, clean the filter cake and the cleaning can be omitted if not required.

The cake absorbed on the filter disc shall be transferred to the drying area and continue dewatering under vacuum effect.

After the cake dewatered, it transfers to the unloading area, and unload the cake with ceramic drawknife.

Technical Parameters:

Applications:

1. Gold Concentration
2. Copper Concentration
3. Iron Concentration
4. Zinc Concentration
5. Fine Coal Concentration

Packing and Shipping:

Product Packaging:

• The disc filter product will be packed in a hard cardboard box to ensure its safety during transportation.
• The box will be sealed with packing tape to prevent any damage to the product.
• The product will be accompanied by an instruction manual that explains how to assemble and use the disc filter.

Shipping:

• The disc filter product will be shipped via a reliable and trustworthy courier service.
• The shipping charges will be calculated based on the weight and dimensions of the package.
• The estimated delivery time will be communicated to the customer after the product is shipped.

FAQ:

Q: What is a Disc Filter?

A: A Disc Filter is a type of mechanical filter used to remove impurities from liquids.

Q: What is the brand name of the Disc Filter?

A: The brand name of the Disc Filter is UNIVEE.

Q: Where is the Disc Filter manufactured?

A: The Disc Filter is manufactured in China.
