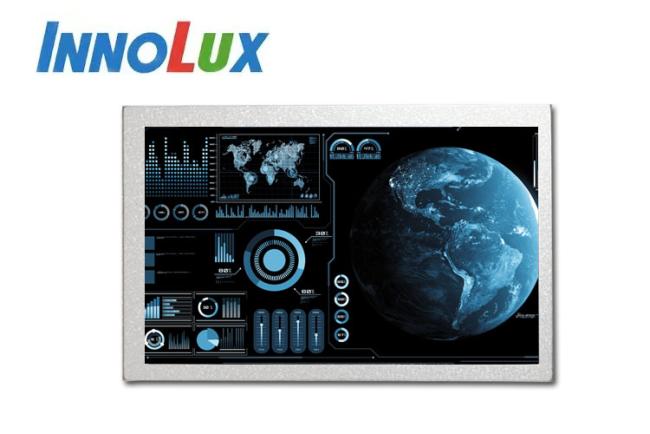

G070ACE-LH1 INNOLUX LCD 800x480 Resolution 1000 Nits 7 Inch Tft Display
Product Description:
| AUO G070ACE-LH1 Mechanical Details | ||||
| Pixel Features : | Pixel Format | 800(RGB)×480, WVGA | Dot Pitch (W×H) | 0.0635×0.1905 mm |
| Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Viewing | 152.4(W)×91.44(H) mm | Overall Dim. | 170(W)×110(H) mm |
| Bezel Opening | 154.4(W)×93.44(H) mm | Overall Depth | 6.0/8.85 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Fixation : | Side mounting holes (4-M2) on up, down bezel | |||
| Other Detail : | Mass | 183±9g | Surface | Antiglare, Hard coating (3H) |
| AUO G070ACE-LH1 Optical Details | ||||
| Brightness | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 59% | sRGB | 82% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
Features:
- Product Name: INNOLUX LCD Display
- Type: lcd tft module
- High brightness lcd
- Wide temperature display
- Long LED Lifetime (hrs): 50K
- Interface: LVDS 30
- Panel Type: innolux panel
One of the key advantages of this display is its wide operating temperature range, which extends from -30℃ to 80℃. This makes it ideal for use in environments that are subject to extreme temperatures or fluctuations, such as factories, warehouses, and outdoor settings. Additionally, the display is equipped with an IPS viewing direction, which ensures that the image quality remains consistent from any angle.
The INNOLUX LCD module is also designed for high durability, with a long LED lifetime of up to 50,000 hours. This ensures that the display will continue to perform reliably over an extended period of time, even in demanding industrial environments.
Overall, the INNOLUX LCD Display is an excellent choice for anyone in need of a high-quality industrial TFT display. Whether you're looking for a touch screen monitor for use in manufacturing, logistics, or any other industrial application, this display is sure to deliver the performance and reliability you need.
Applications:
With a 7-inch size and 800:1 contrast ratio, this display offers clear and crisp visuals for a wide range of applications. It has been certified to meet a range of standards, including ISO 9241, IEC62341, JEITA CP-3451, ANSI/AAMI ES60601-1-2, and IEC 60068, ensuring that it is suitable for use in a variety of settings.
Whether you need a mil spec LCD display for defense applications, an industrial touch screen monitor for manufacturing settings, or a medical TFT display for healthcare environments, this product is a great choice. It is made in Shenzhen, China and has a minimum order quantity of just one piece, with custom packaging options available.
Don't settle for a subpar display – choose the INNOLUX G070ACE-LH1 LCD display for your next project.
Support and Services:
INNOLUX provides technical support and services for their LCD display products. This includes:
- Product consultation and selection assistance
- Product customization and design-in support
- Product reliability and failure analysis
- Product repair and maintenance
- Technical training and documentation
INNOLUX also offers value-added services such as supply chain management, logistics support, and environmental compliance management.
Packing and Shipping:
Product Packaging:
- INNOLUX LCD Display
- Protective foam padding
- User manual
- Power cable
- HDMI cable
Shipping:
- Ships within 2 business days
- Free shipping within the United States
- International shipping available
- Tracking number provided
- Delivery time varies based on location
| Innolux G070ACE-LH1 Packing Details | |||
| Package Box : | Quantity | Weight | Box Size |
| 38 pcs / box | 8.3Kgs | 455×370×275 mm (L×W×H) | |
