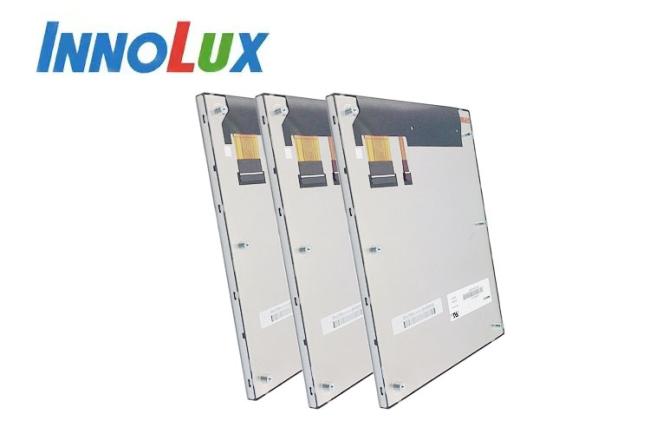

960*1280 Resolution 10.4 inch G104ACJ-L01 INNOLUX Panel High Brightness LCD Display
Product Description:
| Brand | Innolux |
| Model P/N | G104ACJ-L01 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 960(RGB)×1280, Quad-VGA 153PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 158.4(W)×211.2(H) mm |
| Bezel Opening | 160.6(W)×213.9(H) mm |
| Outline Dim. | 173.4(W)×228.7(H)×14.27(D) mm |
| Luminance | 900 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 73% NTSC |
| Weight | 435/452g (Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Light Source | WLED [3 strings] , 50K hours , W/O Driver |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
Features:
- Product Name: INNOLUX LCD Display
- Long LED Lifetime (hrs): 50K
- Resolution: 960*1280
- Wide Temperature: -40 ~ 85 °C
- High Luminance(nits): 900
- Description: This high brightness LCD display is an industrial-grade and MIL-spec product, making it perfect for use in tough environments.
Applications:
The INNOLUX G104ACJ-L01 industrial TFT LCD display has a viewing direction of IPS, which makes it ideal for use in situations where clarity and brightness are essential. It has an operating temperature range of -40 ~ 85 °C, which means that it can be used in a variety of different environments, including harsh industrial environments. The outline dimension of the product is 173.4*228.7*13.77, and it has a resolution of 960*1280. The active area of the display is 158.4*211.1, which provides a large viewing area for users.
This industrial LCD display is perfect for a wide range of applications, including industrial control, medical equipment, and automotive displays. It is also suitable for use in other scenarios such as gaming, advertising, and entertainment. The product is designed to be highly reliable and durable, making it ideal for use in applications where failure is not an option.
Support and Services:
INNOLUX provides comprehensive technical support and services for its LCD Display products, including:
- Product specifications and datasheets
- Application notes and reference designs
- Technical consultation and design-in support
- Product training and education
- Maintenance and repair services
- Customization and integration services
- Environmental and regulatory compliance information
INNOLUX is committed to providing high-quality products and services to meet the needs of its customers.
Packing and Shipping:
Product Packaging:
The INNOLUX LCD Display will be carefully packaged to ensure safe delivery. The display will be wrapped in protective materials and placed in a sturdy cardboard box. The box will be sealed with tape to prevent any damage during shipping.
Shipping:
The INNOLUX LCD Display will be shipped via a reputable shipping company. The shipping cost will be calculated based on the destination and shipping method selected at checkout. Customers will receive a tracking number to monitor the shipment's progress. Please allow 3-5 business days for delivery within the United States, and 7-14 business days for international orders.
