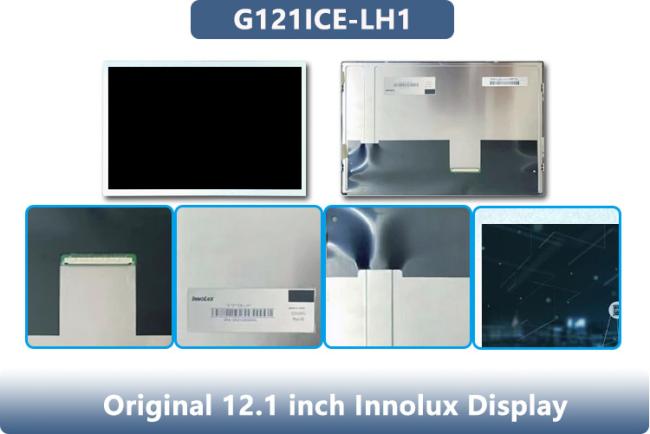

12.1 inch G121ICE-LH1 INNOLUX Screen Panel 1000nits High Brightness Display with Resolution 1280*800
Product Description:
| Brand | Innolux |
| Model P/N | G121ICE-LH1 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.12(W)×166.2(H) mm |
| Outline Dim. | 278(H)×184(V)×10.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 12/8 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Support Color | 262K/16.7M 72% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | 470/490g (Typ./Max.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Operating Temperature: | -30 ~ 80 °C ; Storage Temperature: -30 ~ 85 °C |
Features:

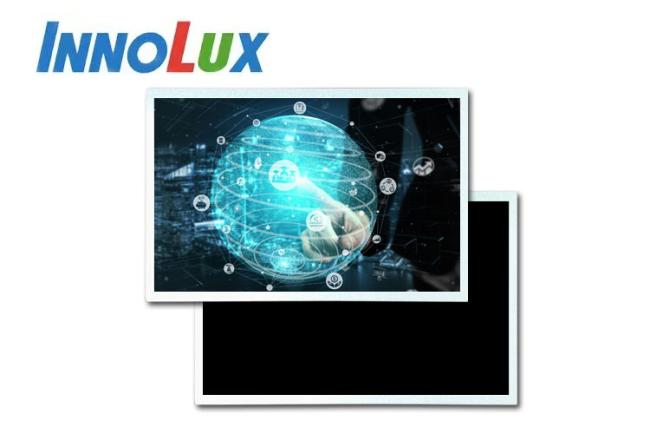

- Product Name: INNOLUX LCD Display
- High Brightness lcd: 1000 nits
- Wide Temperature: -30℃～80℃
- Wide Viewing Angle
- Glare Resistance
- Antt Vabration
This INNOLUX LCD Display is a mil spec lcd display that is perfect for use in a variety of applications. As one of the top tft display manufacturers, INNOLUX is known for producing high quality lcd tft modules that are reliable and efficient. With its LVDS 30 interface, 1280*800 resolution, IPS viewing direction, and active area of 261.12*163.2, this display is ideal for use in a range of different devices. Plus, with its operating temperature range of -30℃～80℃, you can be sure that this display will perform well in even the most challenging conditions.
With an Active Area of 261.12*163.2, this INNOLUX IPS LCD provides a large and clear display that is perfect for various applications such as medical devices, industrial equipment, and gaming monitors. The 1280*800 resolution ensures that images and videos are displayed in high quality and with fine detail.
Applications:
Thanks to its certification from ISO 9241, IEC62341, JEITA CP-3451, ANSI/AAMI ES60601-1-2, and IEC 60068, the G121ICE-LH1 is a reliable and safe option for various occasions and scenarios. It can be used in medical equipment, industrial automation, and other applications where a high-quality display is needed.
The G121ICE-LH1 also has a wide temperature range, with storage temperatures ranging from -30 to 85 °C. This makes it suitable for use in harsh environments, where temperature fluctuations may occur.
Overall, the INNOLUX G121ICE-LH1 is a top-of-the-line industrial LCD display that can be used in a wide range of applications. As a trusted display panel factory, INNOLUX offers high-quality products, reliable certifications, and customizable packaging and delivery options to ensure that their customers are satisfied.
Support and Services:
INNOLUX offers comprehensive technical support and services for their LCD Display product, including:
- Product consultation and evaluation
- Design and engineering support
- Testing and validation services
- Customized solutions and product modifications
- Training and technical documentation
- Repair and maintenance services
INNOLUX is committed to providing top-notch technical support and services to ensure the success of their customers' projects.
Packing and Shipping:
Product Packaging:
- The INNOLUX LCD Display will be carefully packed in a sturdy cardboard box.
- The box will be sealed with tape to ensure the product remains secure during transit.
- Inside the box, the product will be wrapped in protective packaging material to prevent any damage during shipping.
Shipping:
- The INNOLUX LCD Display will be shipped via a reputable courier service.
- The shipping cost will be calculated based on the destination and weight of the package.
- The estimated delivery time will depend on the shipping method selected and the destination.
- Once the product has been shipped, the customer will receive a tracking number to monitor the progress of the delivery.
