Factory supply 5mm Grey Polycarbonate Solid Sheet Lightweight Durable Panel with Hard Coat Surface for Scratch Chemical and UV Resistance
Price:
10.8USD-16.8USD per sqaure meters
MOQ:
100 square meters
Delivery Time:
10 days
Brand:
TOPPC
Product Description
5mm Grey Polycarbonate Solid Sheet: Durable, Decorative & Shatterproof
The 5mm Grey Polycarbonate Solid Sheet is a premium-grade, monolithic (solid) panel that combines exceptional strength with a sleek, modern aesthetic. It serves as a versatile alternative to glass, acrylic, and traditional building materials, offering superior performance for applications where safety, privacy, and a refined look are paramount.
1. Core Specifications & Composition
-
Material: 100% Virgin Polycarbonate Resin, with a uniform grey tint throughout the sheet (not a surface coating). -
Thickness: 5mm (approximately 3/16"). This provides an ideal balance of rigidity for flat or lightly curved applications and ease of handling/fabrication. -
Surface: Typically supplied with a hard-coat on one or both sides. This permanent, co-extruded layer provides superior resistance to scratches, chemicals, and UV degradation. -
Finish: Grey Tint. Available in a range of shades from light smoke to dark graphite. The tint reduces glare and heat transmission while maintaining a degree of light diffusion. It is not completely opaque, offering privacy with soft, shadowy light transmission.
2. Key Properties & Advantages
-
Unmatched Impact Resistance: Up to 250 times stronger than glass of the same thickness. It is virtually unbreakable, making it a premier safety and security glazing material. It meets high-impact safety standards. -
Lightweight: Approximately half the weight of glass, it dramatically reduces structural support requirements and makes handling and installation significantly easier and safer. -
UV Protection: High-quality sheets feature a co-extruded UV-inhibitor layer, which blocks over 99.9% of harmful UV rays. This protects the sheet itself from yellowing and brittleness over time and shields interior spaces. -
Thermal & Dimensional Stability: Performs reliably across a wide temperature range (from -40°C to +120°C) with a low thermal expansion coefficient, reducing stress on frames. -
Inherent Flame Retardancy: Polycarbonate is naturally a B1 / Class A fire-rated material, with low flame spread and no production of toxic fumes. -
Aesthetic & Functional Grey Tint: -
Solar Control & Glare Reduction: The tint absorbs a portion of solar radiation, reducing heat gain (Solar Heat Gain Coefficient) and cutting down on harsh glare. -
Visual Privacy: Creates a semi-private, sophisticated appearance, ideal for partitions or façades where complete transparency is not desired. -
Uniform Appearance: Hides minor scratches and fingerprints better than crystal-clear sheets.
-
3. Common Applications
-

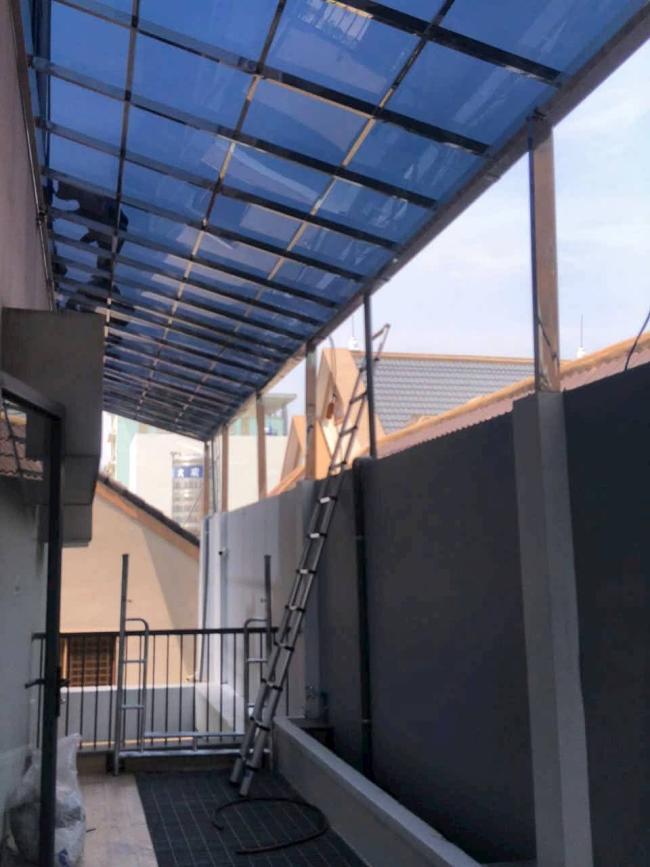

Security & Safety Glazing: Security windows, transaction screens, protective barriers, and machine guards. -
Architectural Partitions & Dividers: Office partitions, room dividers, and balcony balustrades (infill panels) where privacy and style are needed. -
Signage & Displays: Durable face plates for signage, menu boards, and protective covers for displays. -
Industrial & Machinery: Sight glasses, protective shields, and heavy-duty equipment covers. -
Transportation: Window replacements for buses, RVs, or agricultural equipment requiring shatterproof performance. -
Privacy Screens: For residential patios, terraces, or fencing.
4. Handling & Fabrication Notes
-
Easy to Work With: Can be cut cleanly with standard woodworking tools (saw, router). For best edges, use carbide-tipped blades. -
Bending: Can be cold-bent (using the minimum bending radius specified by the manufacturer, typically 150-200x the sheet thickness) or thermoformed for more complex curves. -
Installation: Must be mounted using proper polycarbonate-compatible sealants (silicone, EPDM, or neoprene gaskets) and with adequate space for thermal expansion. Pre-drill holes for fasteners.
Product Specification Table: 5mm Polycarbonate Solid Sheet
|
|
|
|
|---|---|---|
|
|
|
|
|
|
|
|
|
|
1525 mm x 3050 mm (5' x 10') Other custom sizes available |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Innovate Poly Solutions: Your Premier Partner in Polycarbonate Manufacturing
About Our Factory
Factory Overview
-
Location: Modern 10,000 sq. meter facility in Foshan China -
Established: [2006], with over 19 years of specialized expertise -
Certifications: ISO 9001:2015, ISO 14001, Class A Fire Rating Compliance -
Capacity: 5,000+ tons of polycarbonate sheet production annually -
Team: 100+ skilled engineers, technicians, and quality specialists
Core Manufacturing Excellence

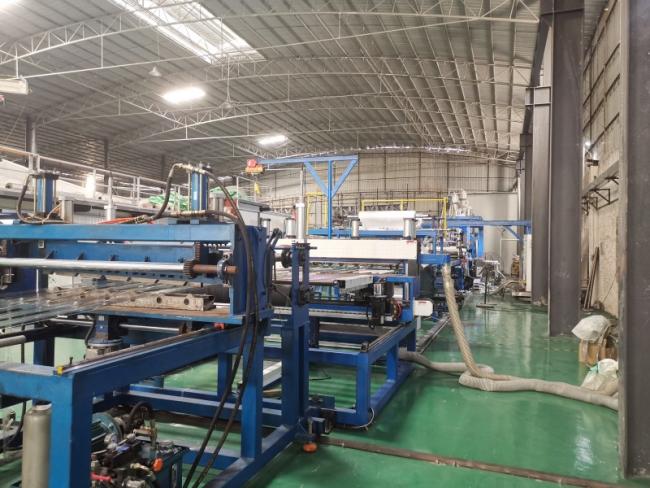

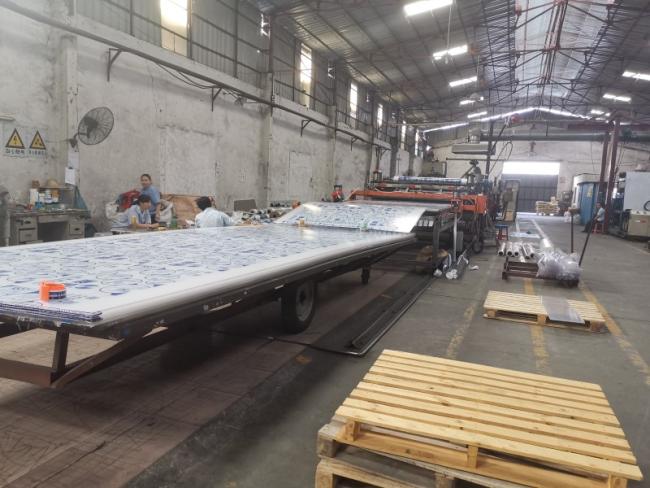

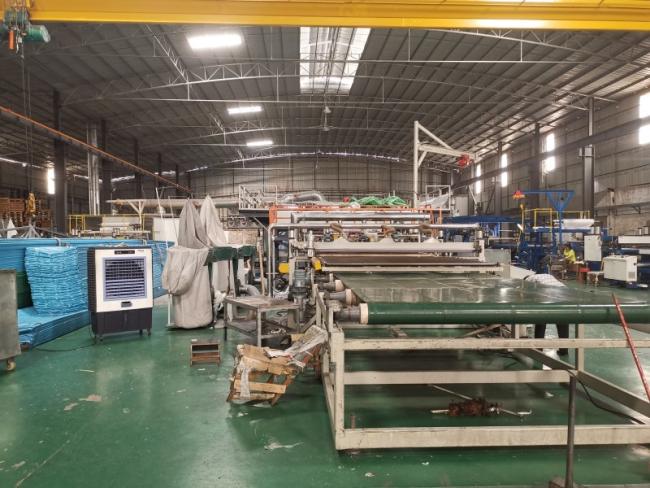

1. Solid Sheet Production Line
-
Thickness Range: 1.0mm to 20mm -
Standard Sizes: 1220x2440mm, 1560x3050mm, 2050x3050mm -
Custom Sizes: Any dimension with precision cutting -
Color Options: Clear, Opal, Bronze, Grey, Blue, Green, and custom RAL colors -
Special Features: -
Dual-sided UV-resistant hard coat -
Anti-condensation coatings -
Anti-fog and anti-static treatments -
Embossed/textured surfaces for decorative applications
-
2. Advanced Quality Control Laboratory
-
Impact Testing: IZOD/Charpy impact resistance verification -
Optical Testing: Haze, transmittance, and clarity measurement -
Weathering Tests: QUV accelerated weathering simulation -
Mechanical Testing: Tensile strength, flexural modulus, hardness -
Dimensional Accuracy: Laser-calibrated thickness and flatness verification

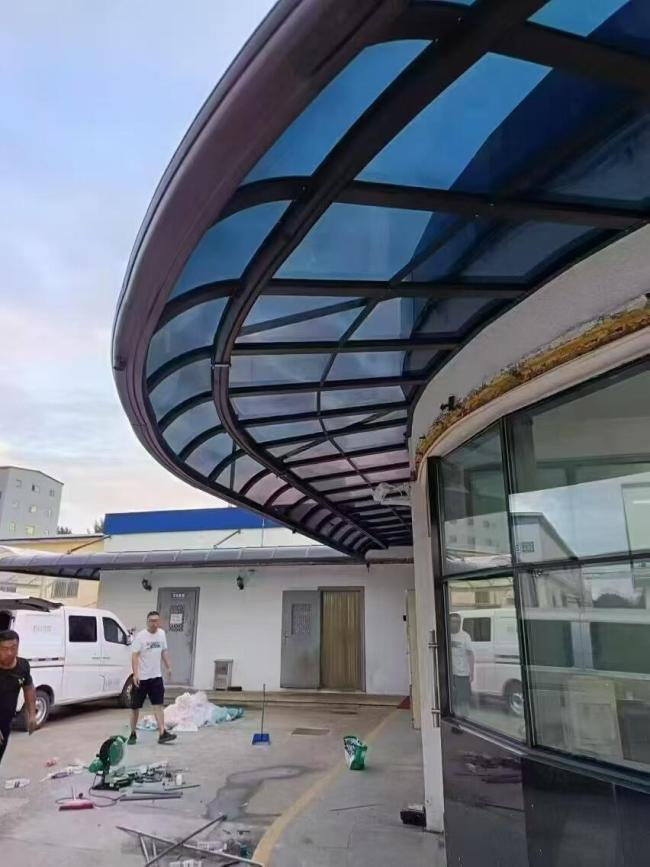

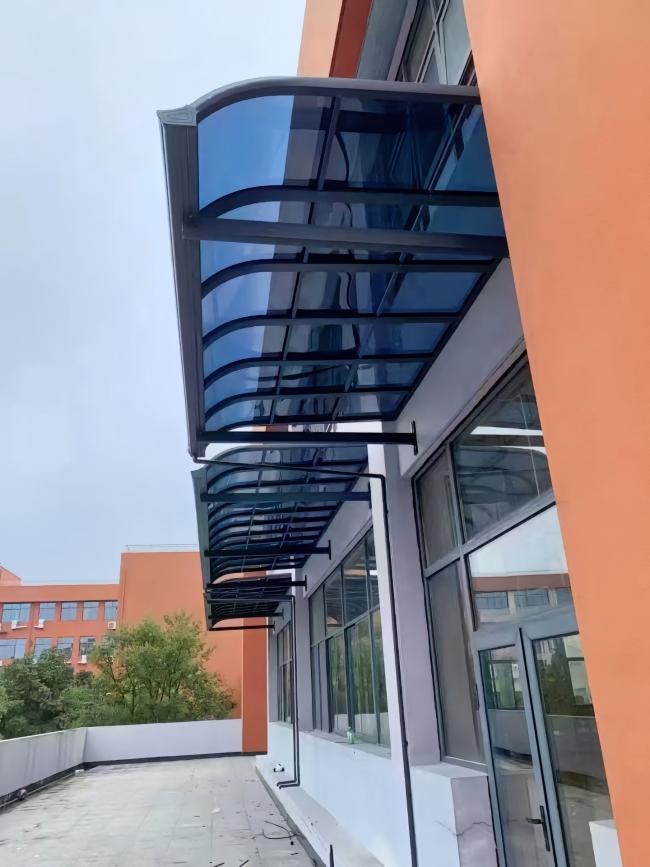

Awning Fabrication Department
Design & Engineering
-
3D CAD Modeling & Structural Analysis -
Wind/Snow Load Engineering per local building codes -
Custom Design Service for unique architectural projects -
Photorealistic Renderings for client approval
Fabrication Process
-
Precision Cutting: CNC-controlled routing and sawing -
Thermoforming: Computer-controlled ovens for perfect curves -
Edge Finishing: Ultrasonic welding and proprietary sealant application -
Frame Fabrication: Aluminum/stainless steel cutting, notching, welding -
Assembly & Quality Check: Complete system assembly and testing -

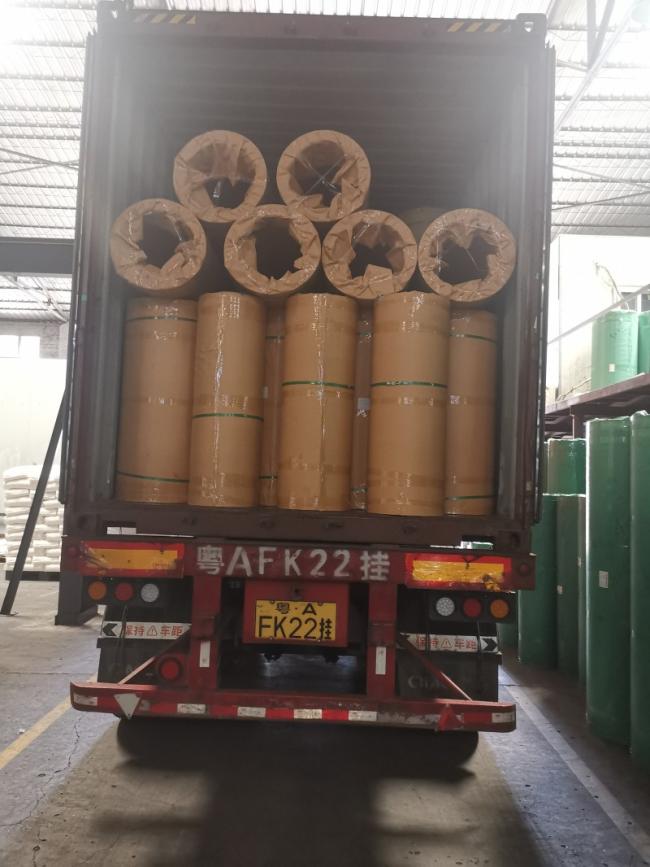

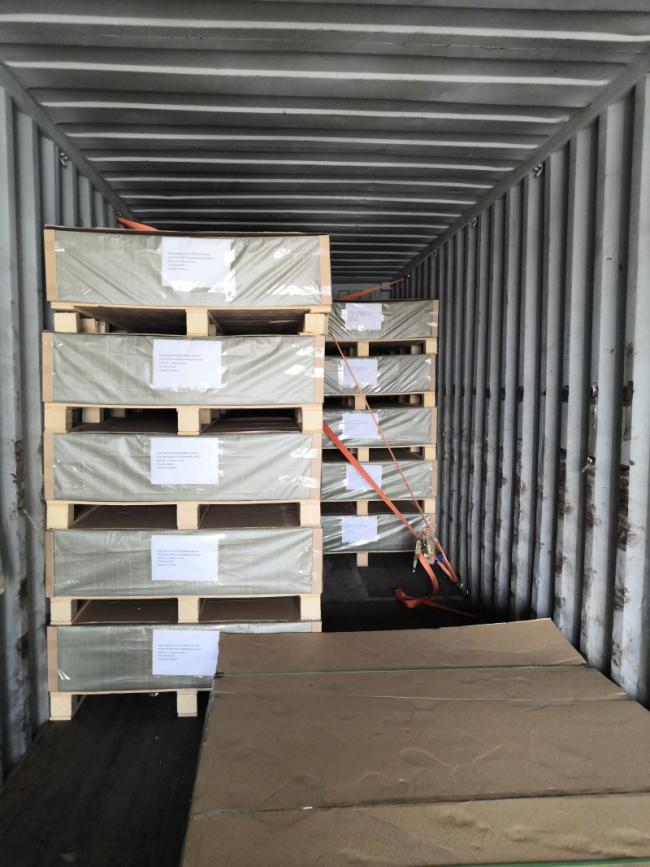

Packaging: Custom crating for international shipping
Our Technology Advantage
-
AI-Optimized Extrusion: Real-time thickness monitoring and adjustment -
Robotic Material Handling: Minimizes human contact and surface defects -
Automated Color Dispensing: Precise, consistent color formulation -
Energy Recovery Systems: 30% reduced energy consumption vs. industry average -
Zero-Waste Initiative: 98% of production waste recycled
Product Applications We Serve
|
|
|
|
|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Why Partner With Us?
1. Vertical Integration
2. Customization Capability
-
Custom colors, thicknesses, and sizes -
Specialized coatings and treatments -
Complete awning systems with structural engineering -
Fast prototyping (7-10 day sample turnaround)
3. Global Standards, Local Service
-
ASTM standards (Americas) -
EN standards (Europe) -
JIS standards (Asia) -
GB standards (China)
4. Sustainability Commitment
-
Solar-powered manufacturing (40% of energy needs) -
Water recycling system (closed-loop cooling) -
Sustainable packaging materials -
Recyclable end products
5. Complete Project Support
-
Technical consultation and design assistance -
On-site measurement services -
Installation supervision available -
After-sales support and warranty
Our Manufacturing Philosophy
-
Consistent Quality - Batch-to-batch uniformity guaranteed -
Technical Innovation - Continuous R&D investment (5% of revenue) -
Customer Partnership - Collaborative problem-solving approach -
Timely Delivery - 99% on-time delivery record -
Competitive Value - Optimal price/performance ratio
Contact us today to request samples, technical data sheets, or a customized quotation for your next project.
