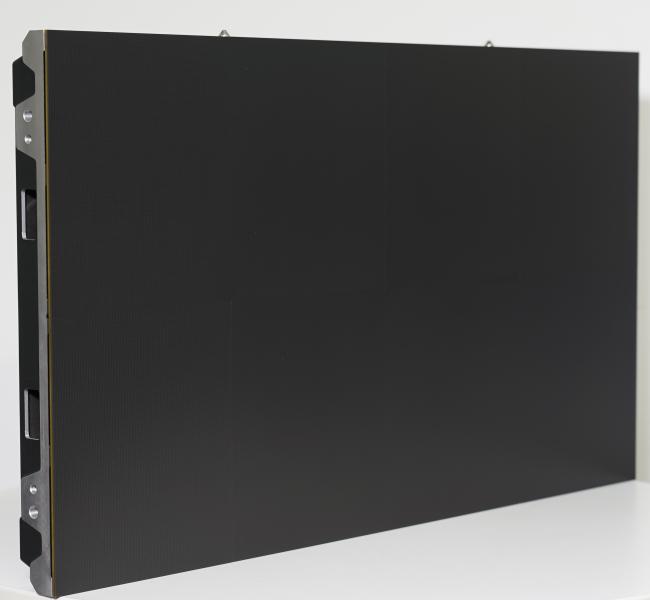

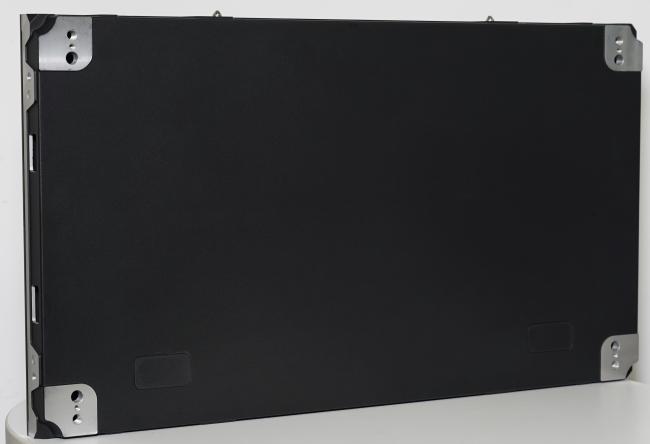

High Contrast COB 600 X 337.5 X 35mm Module Small Pixel Pitch P0.9375
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Googol
Product Description
Key Features:
High reliabilityfull flip integrated package;Using constant current mode to drive LED chip, with uniform lumin scence, low power consumption.
With high contrast can achieve good display effect;Light weight, easy to install and disassemble;

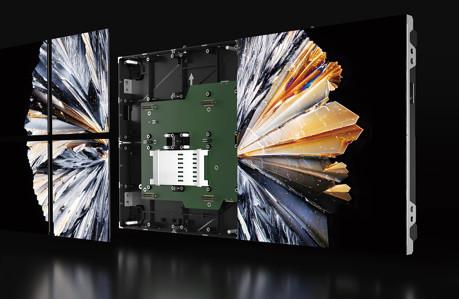

Module design FCL is divided into two units: display screen box kit, display module.
Key Parameters:
| Part Number | P0.9 | Part Number | P0.9 |
| LED Configuration | 1R1G1B | Pixel Pitch | 0.9375 (Common Andoe) |
| Resolution Ratio | 640(W)*360(H) | Size | 600(W)*337.5(H)*35(D)mm |
| Weight | 4.6kg | Flatness | 0.15mm |
| Luminance | 0~1000cd/㎡ | Chromaticity Coordinate (CIE 1931) | Cx＝0.285 Cy＝0.300 (±0.003) |
| Color Temperature | 3000~10000K | NTSC Color Gamut (CIE 1931) | 105% (Q/HCP 001-2020) |
| Luminance Angle (H/V) | 165°/165° (Q/HCP 001-2020) | Luminance Uniformity | 97% (Q/HCP 001-2020) |
| Max. Power | 380W/㎡ (±5%) | Average Power | 127W/㎡ |
| Applied Contrast | 5000:1 (10Lux) | Scans | 54 |
| Repetition Frequency | 60Hz | Gray Scale | 16bit |
| Refresh Rate | 1920~3840Hz | IP Rate | IP65 |
| Point-By-Point Correction Technique | Support | Flash Memory Function | Support |
