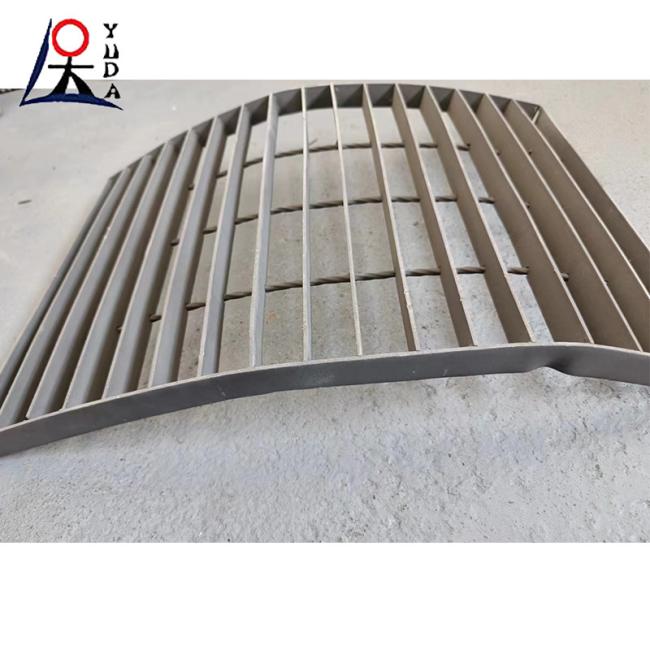

Hot Dipped Galvanized Bar Grating For Walkway Platform Foot Plate heavy duty bar grating
Hot Dipped Galvanized Steel Bar Grating For Walkway Platform Foot Plate
Steel grating
The steel grid plate is also called the platform steel grid plate, and the platform grid plate is a steel product with a square grid in the middle, which is mainly used to make the steel structure platform plate, the step plate of the steel ladder, etc. The cross bar is generally made of twisted square steel.
Steel grid plate is generally made of carbon steel, the appearance of hot dip galvanized, can play a role in preventing oxidation. It can also be made of stainless steel. Steel grid plate with ventilation, lighting, heat dissipation, anti-slip, explosion-proof and other properties.
Steel grid specifications
* Bearing bar size: 1" x 1/8" to 2–1/2" x 3/16" with 1/4" increments;
* Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16";
* Cross bar spacing (center-to-center): 4" or 2".* Bearing bar size: 1" x 1/8" to 2–1/2" x 3/16" with 1/4" increments;
* Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16";
* Cross bar spacing (center-to-center): 4" or 2".
|
Common Mesh Spacing for Bearing Bars from 2 to 3 mm of Common Press-Locked Steel Grating
|
|
||||||||
|
Bearing Bar
(mm) |
Cross Bar
(mm)
|
|
|||||||
|
11.1
|
11.1
|
16.65
|
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
15
|
11.1
|
16.65
|
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
21
|
11.1
|
16.65
|
21.0
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
22.2
|
11.1
|
16.65
|
21.0
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
33.3
|
11.1
|
16.65
|
21.0
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
44.4
|
11.1
|
16.65
|
21.0
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
55.5
|
11.1
|
16.65
|
21.0
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
66.6
|
11.1
|
16.65
|
21.0
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
|
99.9
|
11.1
|
16.65
|
21.0
|
22.2
|
33.3
|
44.4
|
49.95
|
66.6
|
99.9
|
Steel grid plate features
1: High strength, light structure
2: Strong anti-corrosion ability, durable
3: Beautiful appearance, bright surface
4: no dirt, no rain, no water, self-cleaning, easy to maintain
5: ventilation, lighting, heat dissipation, anti-slip, explosion-proof
Press-Locked Steel Grating – Common, Integral, Louver, Heavy Duty
