4mmx4mm Fiberglass Mesh For Composite Material Glass Fiber Mesh

Price Negotiable
Price: US $0.15 - 0.35/ Square Meter
MOQ: 100 Square Meter
Delivery Time: 3-10 day
Brand: YUDA
Product Description

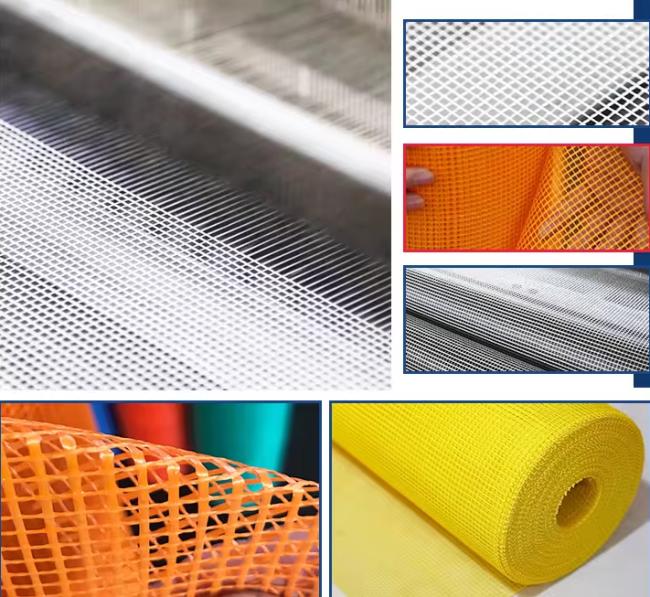

4mmx4mm Fiberglass Mesh Fiberglass For Composite Material Glass Fiber Mesh





Product name
Fiberglass mesh
Length
As Client's Request
Width
As Client's Request
Usage

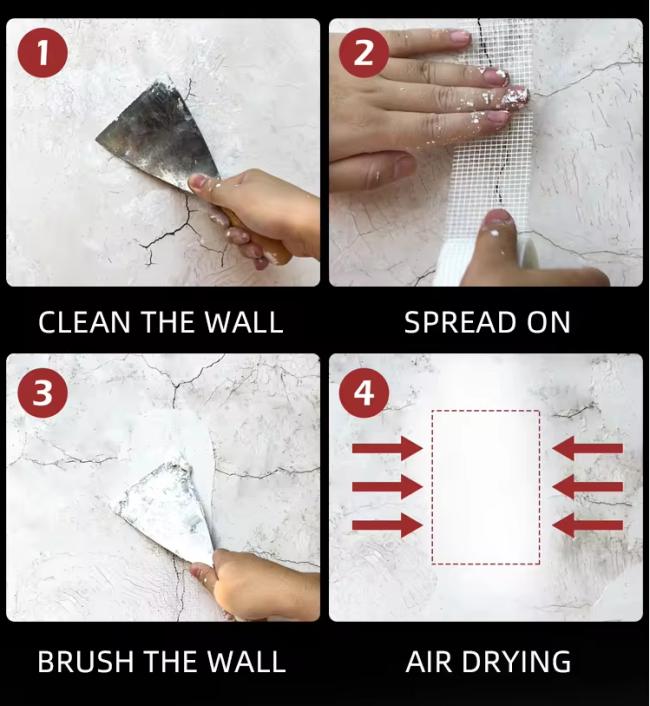

wall crack repair,new and old wall seam,cement wall reinforcement
Feature
Insulated,Heat resistant,Corrosion resistant,High mechanical strength
Application
1.Fiberglass mesh is used for wall reinforcement.
2.Fiberglass mesh is ideal material for out-side wall heat insulation.
3.Fiberglass mesh can be applied to bitumen as roof waterproof material, so as to strengthen the tensile strength and life time of bitumen.
4.For Reinforcement of marble, mosaic and stone, plaster.





Reinforced Fiberglass Wall Mesh Specification:
Item Number Yarn(Tex) Mesh(mm) Density Count/25mm Tensile Strength × 20cm Woven Structure Content of resin%
Warp Weft Warp Weft Warp Weft Warp Weft
45g2.5x2.5 33×2 33 2.5 2.5 10 10 550 300 Leno 18
60g2.5x2.5 40×2 40 2.5 2.5 10 10 550 650 Leno 18
70g 5x5 45×2 200 5 5 5 5 550 850 Leno 18
80g 5x5 67×2 200 5 5 5 5 700 850 Leno 18
90g 5x5 67×2 250 5 5 5 5 700 1050 Leno 18
110g 5x5 100×2 250 5 5 5 5 800 1050 Leno 18
125g 5x5 134×2 250 5 5 5 5 1200 1300 Leno 18
135g 5x5 134×2 300 5 5 5 5 1300 1400 Leno 18
145g 5x5 134×2 360 5 5 5 5 1200 1300 Leno 18
150g 4x5 134×2 300 4 5 6 5 1300 1300 Leno 18
160g 5x5 134×2 400 5 5 5 5 1450 1600 Leno 18
160g 4x4 134×2 300 4 4 6 6 1550 1650 Leno 18
165g 4x5 134×2 350 4 5 6 5 1300 1300 Leno

18













































Feature


1. It is single coated with organic silicone adhesive and laminated with double sided

anti-static protective film.
2. Using blue PET film as carrier.
3. It has the function of low adhesion and anti-static.



1. 75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and

scattered throughout the surface pressure.
2. 110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials

(such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion

coefficient of wall crack and break .
3. 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light

wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure,

especially in the external wall insulation system (EIFS ).
4. 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through

shrinkage and temperature changes by providing a space to maintain movement between the

layers, prevent crack and rupture due to shrinkage or temperature change.
