Pallet Flow Racking (FIFO)
Pallet Flow Racking system (Live Storage FIFO) is ideal for warehouses where stock turnover control and space saving are critical.

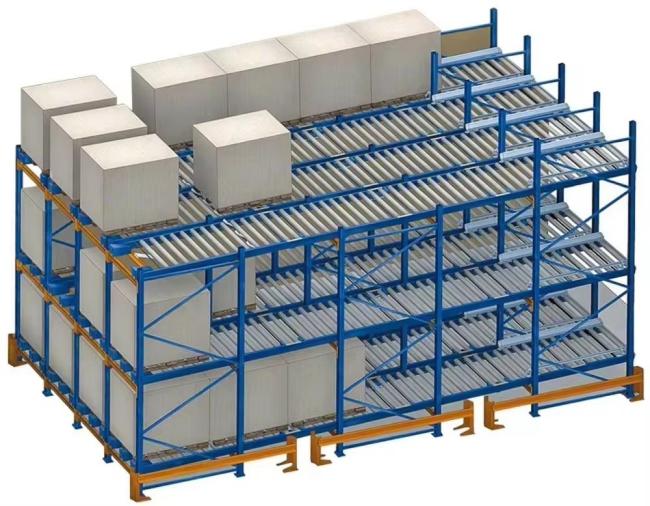

It consists of a compact structure where each level has linear roller beds that allow the load units to slide easily thanks to a slight inclination.
 It is a high-density storage system perfect for storing homogeneous pallets.

Dimensions	1000mm (1 lane)
	2000mm (2 lanes)
	3600mm (3 lanes)
	Block Height: Up to 13500mm
	Channel Depth: Up to 15 pallets deep
Loading	Pallet Weight: Up to 1500kg
Finish	Uprights: Pre-galvanized
	Beams: Pre-galvanized or painted
	Accessories: Pre-galvanized or painted
Can be customized to your requirements

Required information for customized quote

1, The AUTOCAD drawing or draft drawing of warehouse or racking.

2,  Length, Height, and Width of the warehouse.

3,  Layers of the racking

4,  Pallet size.

5,  Max weight of pallet with cargo on.

6,  Color requirement.

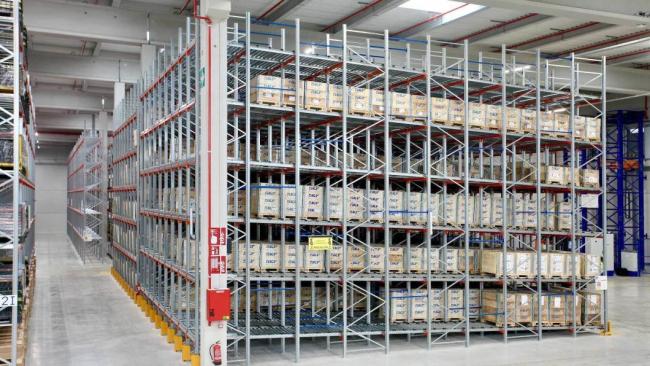

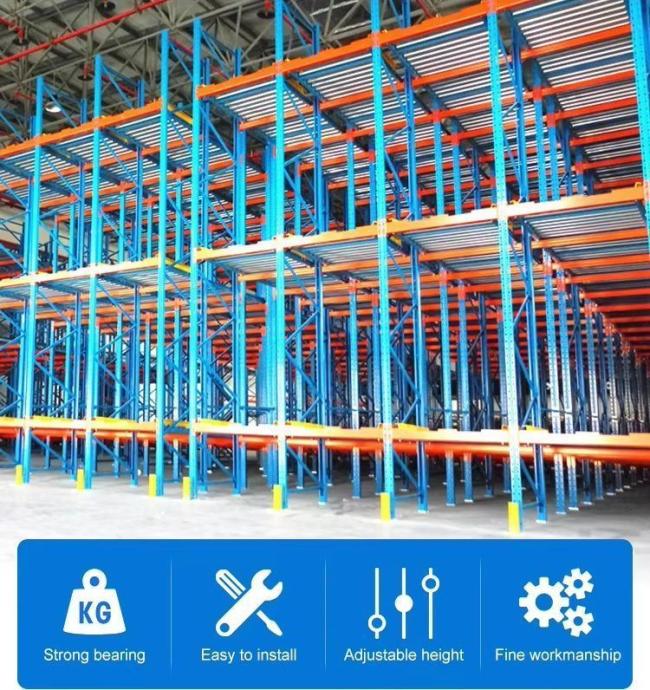

Customer Site

As a general rule, live storage is a compact storage system that uses the force of gravity to store the unit loads.
There are live storage systems for both FIFO (First In, First Out) and LIFO warehouse management (Last in, First Out).
And also, for any type of load: a solution for heavy loads such as pallets and light loads with systems for cartons.

With their description and operation, divided by the type of unit loads: pallets and cartons (picking):

Pallet Flow Racking systems

are the most widely used live system of all the existing options.

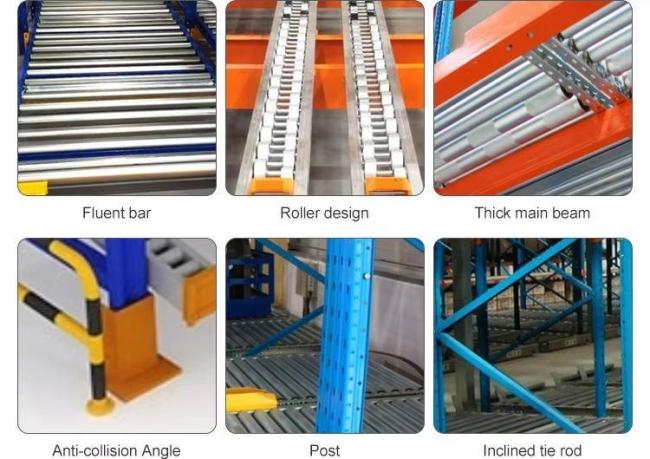

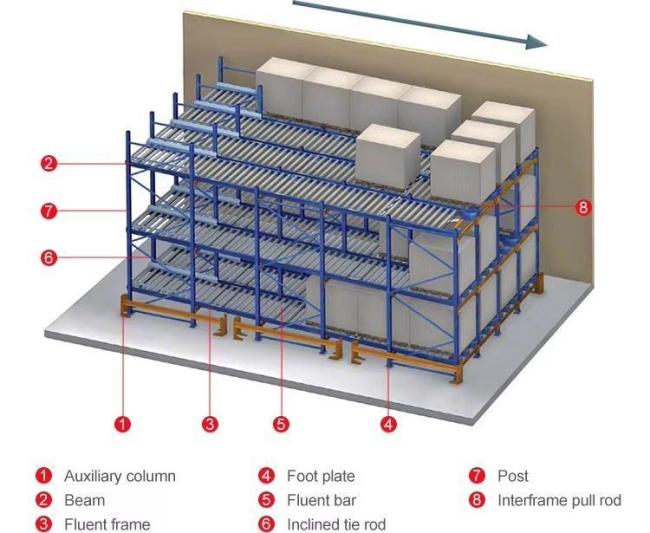

This storage system consists of a compact metal structure, equipped with a system of roller conveyors on each level with a slight incline that allow unit loads, generally pallets, to slide freely.
FIFO system, the first pallet in is the first pallet out.

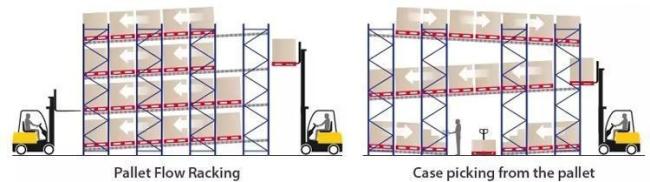

Operation is simple and dynamic, the pallets enter the structure through the loading area, the highest area of the level, and thanks to the incline (4% in most cases) enter the interior of the structure and move along at a controlled speed to the other end, in the unloading area

The safety of the system and movement is absolutely guaranteed, thanks to the control, braking and protection measures with which the FIFO live storage systems are equipped.
The separate aisles for the loading and unloading make it possible to separate flows and improve the productivity and safety of the transit of vehicles. It is an ideal solution for products with shorter expiration dates.

unlike gravity live storage, are designed for LIFO type warehouse management, where the last pallet in is the first pallet out. In other words, the loading and unloading process takes place in the same work aisle.

The operation of the push-back pallet racking systems is based on the unit load deposited pushing the previous loads towards the back of the structure, thanks to the system displacement method (rollers or shuttles). For unloading, the slight incline of the rail is exploited so that the pallets slide as they are unloaded.
In short, the pushing force is used for the loading of the pallets and the force of gravity for their unloading.

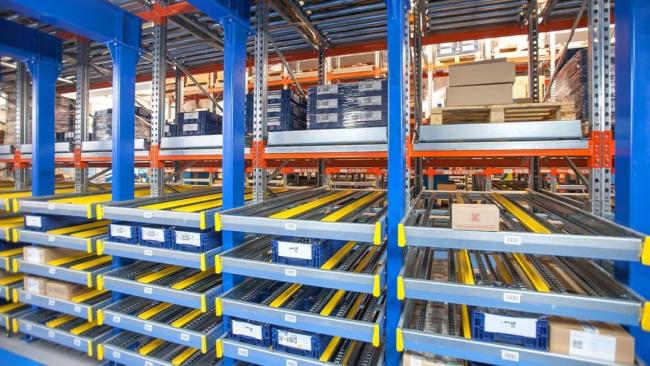

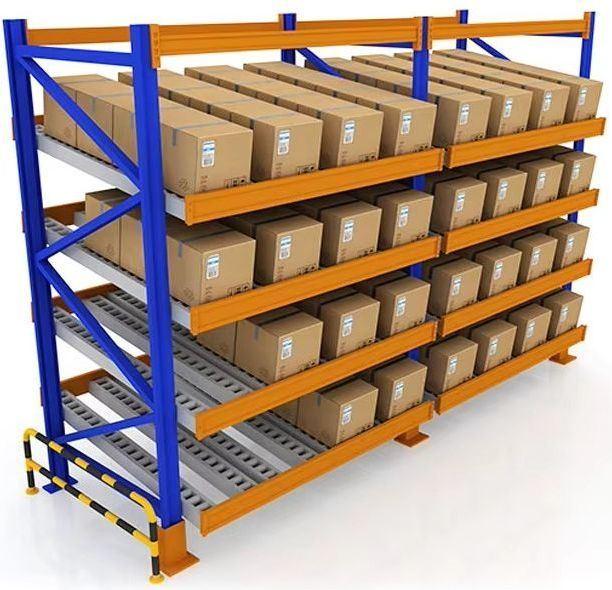

also known as carton live storage, are a gravity-controlled high-density compact system to facilitate manual loading tasks.It is a similar system to gravity live pallet racking with the same operation with roller beds and FIFO type warehouse management, but adapted for light loads, usually cartons.
The cartons slide on pulley rails from the loading area to the back of the racking, in the unloading area, thanks to a slight incline.

It is the ideal storage system for warehouses with a large volume of picking operations, due to the reduced distance to be travelled by the operators and the time savings in performing operations.
It is a very versatile and high productivity system for the preparation of orders, particularly loose units, allowing for the replenishment of goods without interfering with outward stock movements.
It is also a highly versatile and compatible system with other pallet racking systems.
