Intelligent Unmanned Forklift with 1500KG Load Capacity, Lithium Iron Phosphate Battery, and 1335mm Minimum Passage Width
Price:
Negotiable
MOQ:
1 Sets
Delivery Time:
30-40 Working Days
Brand:
TIANYUE
Product Description

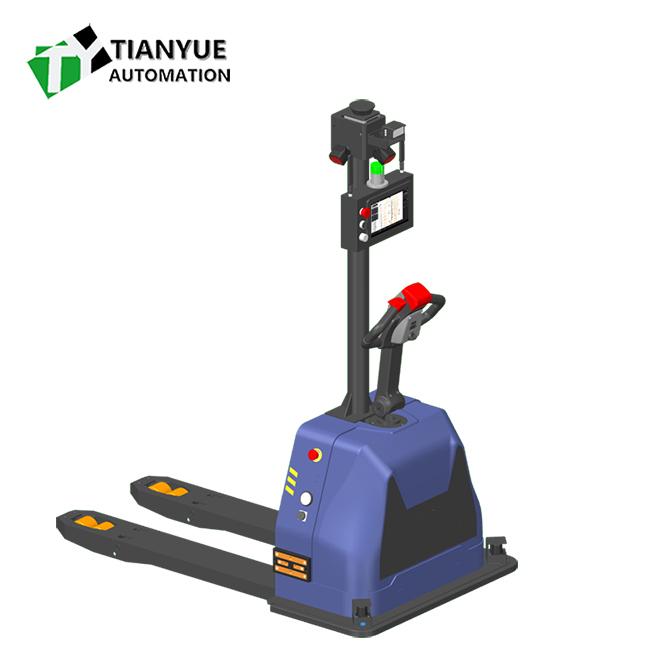

Intelligent Unmanned Forklift Truck
The Intelligent Unmanned Forklift is an advanced material handling solution designed to revolutionize warehouse and industrial operations. Combining cutting-edge automation technology with robust engineering, this Heavy Duty Forklift Truck offers exceptional efficiency, safety, and reliability for a wide range of heavy lifting tasks.
Advanced Design & Construction
Measuring 1640mm in length, 935mm in width, and 1955mm in height, the vehicle body dimensions are optimized to navigate through tight spaces while maintaining stability during heavy load transportation. With a substantial vehicle body weight of 350KG, the forklift ensures durability and robustness necessary for industrial environments.
High-Performance Power System
Powered by a high-performance Lithium Iron Phosphate battery with 24V105Ah capacity, this forklift offers extended operating hours, reduced downtime, and increased productivity. The battery technology guarantees enhanced safety, thermal stability, and longer lifespan compared to traditional battery types.
Intelligent Navigation & Control
With a minimum passage width requirement of just 1335mm, the forklift efficiently navigates narrow aisles and confined spaces. The intelligent control system provides precise maneuverability, enabling smooth turns and accurate positioning even in challenging environments.
- Product Name: Intelligent Unmanned Forklift
- Forklift Attachments: Customized to meet specific operational needs
- Maximum Lifting Height: 100mm for precise handling
- Maximum Speed: 1.5m/s ensuring efficient transport
- Control Mode: Fully Autonomous with Remote Monitoring capabilities
- Motor Type: High-performance Servo Motor
- Heavy Duty construction for robust industrial applications
- Reliable automation technology combining efficiency and strength
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | TY-CC-0001 |
| Vehicle Dimensions | Length 1640mm * Width 935mm * Height 1955mm |
| Rated Load | 1500KG |
| Lifting Height | 95±5mm |
| Vehicle Self-weight | 350KG |
| Navigation Method | 2D Laser SLAM / 3D Laser SLAM |
| Drive Form | Single Steering Wheel |
| Pallet Type | Chuanzi / Rack |
| Driving Mode | Automatic / Manual |
| Rotational Diameter | 300mm |
| Minimum Passage Width | 1335mm |
| Navigation Position Accuracy | ±10mm |
| Angular Accuracy | ±1° |
| Operating Speed | 1.5m/s |
| Battery Capacity | 24V105Ah |
| Battery Type | Lithium Iron Phosphate |
| Idle Running Time | 8h~10h |
| Full Load Running Time | 6h~8h |
| Charging Time | 2h |
| Charging Method | Manual / Automatic Charging |
| Obstacle Avoidance Method | Obstacle Avoidance Lidar Sensor |
Industrial Applications
The TIANYUE Intelligent Unmanned Forklift is certified with 3C and CE standards and is ideal for large warehouses, manufacturing plants, logistics centers, distribution hubs, port logistics, and cold chain operations. Its intelligent navigation, heavy-duty capabilities, and customizable features make it perfect for enterprises looking to upgrade their material handling systems with reliable and innovative technology.
