QXB Series-C Series Hollow Type Reducer Machine Two Stage Reduction
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

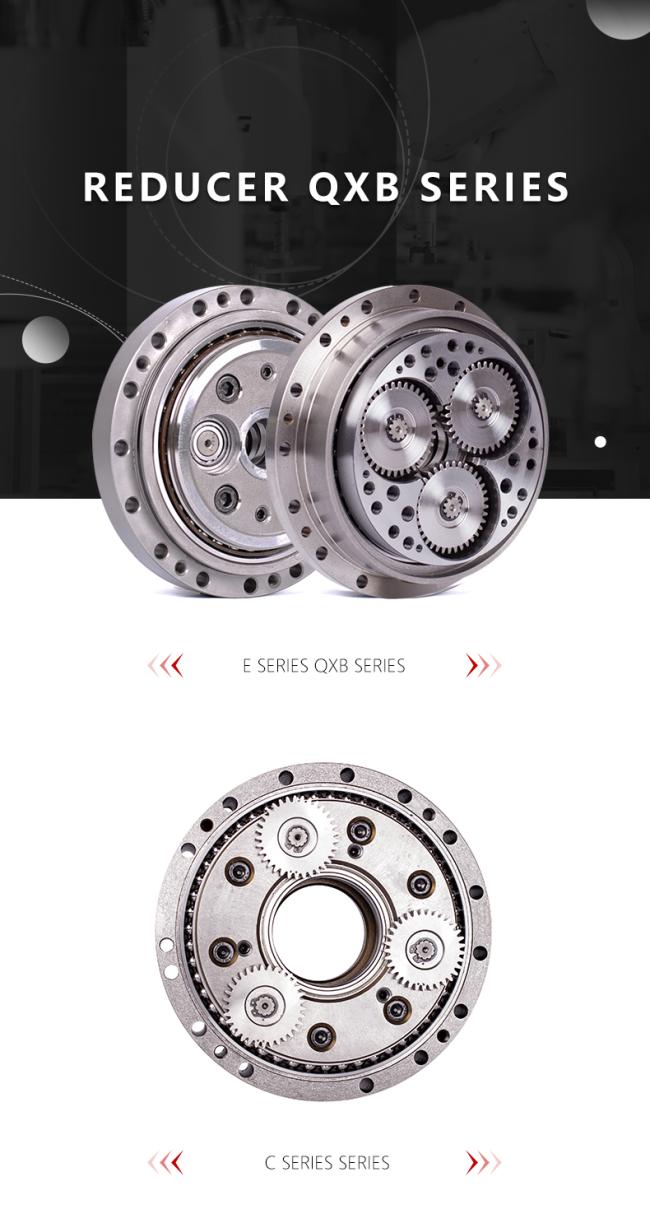

QXB Series-C Series Hollow Type Reducer
Description
QXB E, C series reducers are two-stage reduction: first stage reduction Planetary gear reduction mechanism
The rotation of the input shaft is transmitted from the input gear to the planetary gears, which are decelerated according to the gear ratio, and are the first stage of deceleration Cycloid stage deceleration mechanism.The rotating eccentric shaft driven by the planetary wheel drives two cycloid discs in an eccentric motion, and the discs are mounted symmetrically at 180° so that the forces are balanced. The eccentric motion causes the discs to engage the pin gears placed on the pin gear housing. When the eccentric shaft rotates for one week, the disc moves one pin tooth position in the opposite direction.
The rotation of the input shaft is transmitted from the input gear to the planetary gears, which are decelerated according to the gear ratio, and are the first stage of deceleration Cycloid stage deceleration mechanism.The rotating eccentric shaft driven by the planetary wheel drives two cycloid discs in an eccentric motion, and the discs are mounted symmetrically at 180° so that the forces are balanced. The eccentric motion causes the discs to engage the pin gears placed on the pin gear housing. When the eccentric shaft rotates for one week, the disc moves one pin tooth position in the opposite direction.
