HUAHENG GUARD GB16 | Forklift-Type Autonomous Mobile Robot for Intelligent Pallet Handling
HUAHENG GUARD GB16 AMR
Forklift-Type Autonomous Mobile Robot for Intelligent, Unmanned Material Handling
Product Overview

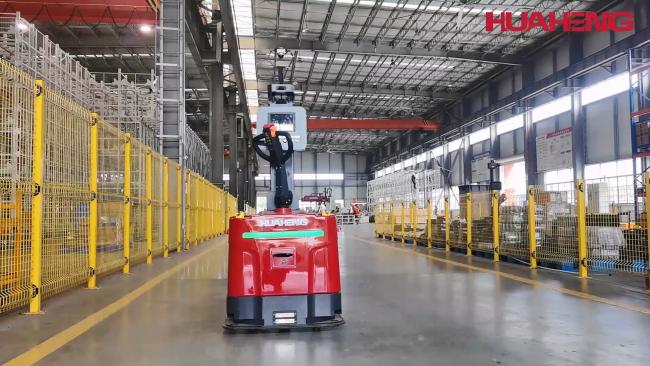

The HUAHENG GUARD GB16 AMR is a high-performance forklift-type Autonomous Mobile Robot engineered for intelligent, unmanned material handling without the need for site modifications. It identifies and transports pallets of various sizes, and can even safely handle loads that exceed standard pallet dimensions. With seamless switching between manual and automatic modes, it delivers exceptional versatility and operational flexibility. Driven by AI Vision, Neural Networks, and Visual Large Models, it enables fully intelligent logistics management, requiring only Wi-Fi, a server, and ceiling cameras for deployment.
Verified On-Site Performance
As proven in real-world applications as detailed in our documentation:
Key Specifications & Performance
| Item | Specification |
|---|---|
| Max Load Capacity | 1600 KG |
| Operating Speed | 0.5 ~ 1.2 m/s (adjustable by zone) |
| Positioning Accuracy | ±10mm (alignment), ±50mm (travel) |
| Machine Dimensions (L×W×H) | 1900 × 850 × 1970 mm |
| Vehicle Curb Weight | 365 KG |
| Maximum Gradeability | 10° ~ 20° |
| Minimum Aisle Width | 1.35m (Unidirectional), 2.9m (Bidirectional) |
| Fork Length | Customizable to match pallet dimensions |
Core Technology & Features
1. AI Navigation & Vision
AI Vision + 3D LiDAR Localization: Powered by Neural Networks and Visual Large Models for natural feature-based navigation, intelligent material recognition, and Dynamic Slot Allocation.
True Flexibility: Deploys with zero site modifications. The self-patrol function scans storage occupancy in areas without ceiling cameras.
2. Power & Endurance
LFP Battery System: 48V 50AH Lithium Iron Phosphate battery. Fast charging (20%-100% in 2H).
All-Climate Reliability: Over 8 hours of continuous operation on a full charge. Designed for stable performance with managed expectations in extreme conditions.
3. Comprehensive Safety

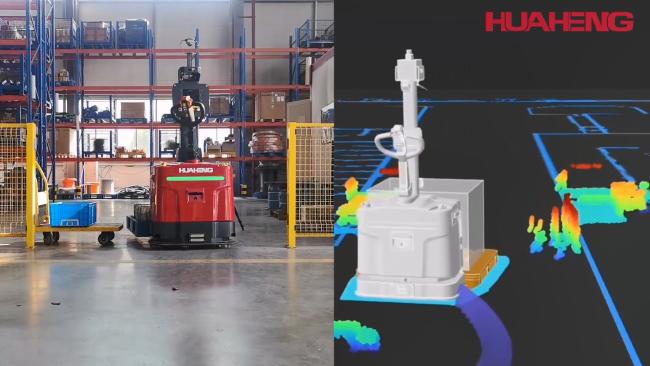

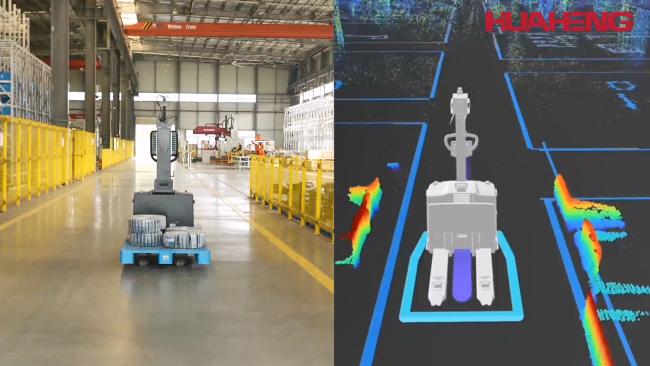

360° Perception: Equipped with 3D LiDAR and multiple depth cameras for full environmental awareness and obstacle avoidance.
Mechanical & Emergency Protection: Front/rear bumpers and a physical emergency stop button ensure safe operation for both loads and personnel.
Typical Applications
Seamless Full-Link Intelligent Logistics
(Integration with Customer's ERP/WMS/MES)
Scenario: Automated material flow in manufacturing, such as printing production. The ERP plans production, the MES issues orders, and the GB16 AMR executes just-in-time material transport between processes. A "Smart Eye" system monitors line-side stock and triggers automatic replenishment.
Documented Result: Achieves fully automated, high-intensity logistics between processes with 7 * 24h operation.
Flexible Unmanned Handling
(No Business System Interface Required)
Scenario: Mixed-pallet operation and dynamic storage management in warehouses or flexible manufacturing cells.
Core Technology: As highlighted in the document, it utilizes Neural Networks + Visual Large Models + Dynamic Slot Allocation to achieve fully intelligent management without a WMS. The system recognizes material presence to auto-trigger replenishment tasks.
Why Choose the HUAHENG GUARD GB16 AMR?
- High Payload & Proven Efficiency: 1600KG max load capacity, proven to handle 120+ transport trips per day, replacing manual labor.
- Intelligent & Truly Flexible: AI-Powered vision handles mixed pallets and even non-standard loads. Deploys with zero site modifications.
- Safe & Reliable: Multi-sensor fusion (3D LiDAR + cameras) and mechanical safeguards ensure all-around safety.
- Long-Lasting & Ready-to-Work: LFP battery supports over 8 hours of operation and 1500+ charge cycles for demanding shifts.
- Seamless Scalable Integration: As demonstrated in the printing production application, enables full-link intelligent logistics by connecting with ERP/WMS/MES. Supports both automated dispatch and manual control.
- Customizable Design: Fork lengths and operational parameters can be customized to fit specific pallet dimensions and workflow needs.
