Customized Max. Torque 1.5ton Excavator Earth Auger Attachment for Precise Drilling
Price:
$500.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
zhongju
Product Description
Product Paramenters

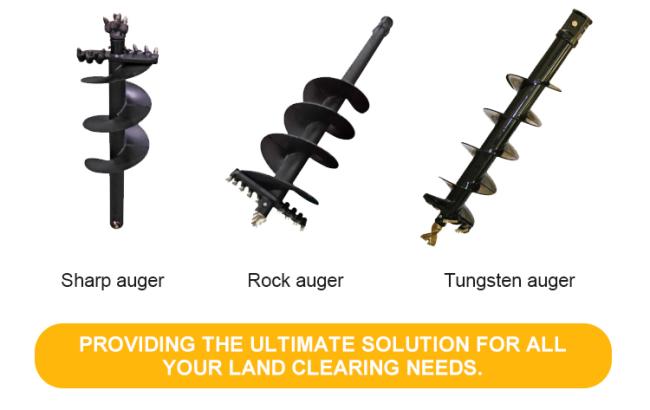

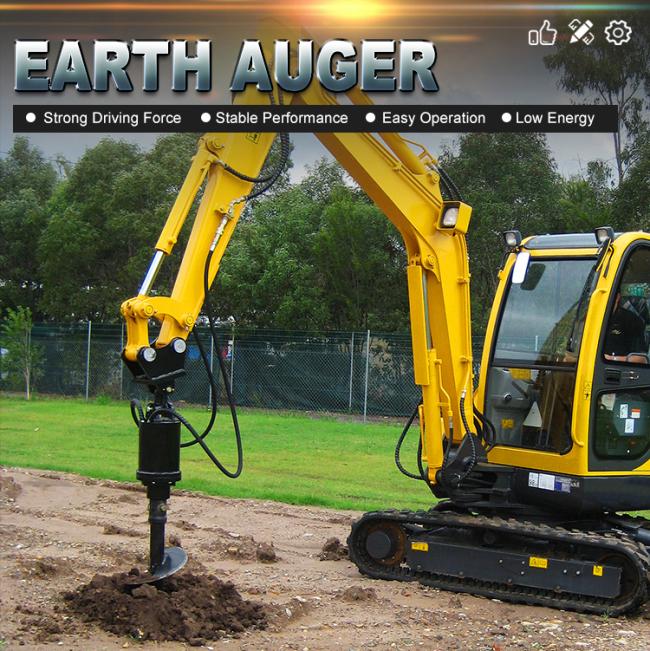

RAY ATTACHMENTS Earth Auger is a kind of digging hole machine. It can be mounted to all common hydraulic excavators as well as mini excavators and other carriers like skid steer loaders, backhoe loaders, telescopic handlers, wheel loaders, and other machinery. Our auger drive can be installed with an earth drill, stump planner, and mixer bowl for different uses.
Model | RB2000 | RB2500 | RB3000 | RB3500 | RB4500 | RB5500 | RB7000 | RB8000 | ||
Excavator Weight (T) | 1-2.5 | 1.5-3 | 3.5-4 | 2.5-4.5 | 3-5 | 4.5-6 | 5-7 | 6-8 | ||
Auger Range | S4 | S4 | S4 | S4 | S4 | S5 | S5 | S5 | ||
Torque Range (Nm) | ≤2031 | ≤2640 | ≤2877 | ≤3614 | ≤4499 | ≤5694 | ≤6931 | ≤8152 | ||
Oil Pressure Range (Bar） | 70-220 | 70-220 | 80-220 | 80-220 | 80-220 | 80-240 | 80-240 | 80-220 | ||
Oil Flow Range (lpm) | 24-55 | 28-63 | 32-70 | 35-76 | 39-88 | 43-99 | 60-128 | 66-143 | ||
Speed Range (rmp) | 42-96 | 38-47 | 36-64 | 37-81 | 38-73 | 29-69 | 36-77 | 31-67 | ||
Hub Norm | 65mm ⊘ | 65mm ⊘ | 65mm ⊘ | 65mm ⊘ | 65mm ⊘ | 75mm ▨ | 75mm ▨ | 75mm ▨ | ||
Height (mm) | 590 | 590 | 683 | 683 | 683 | 780 | 815 | 815 | ||
Width (mm) | 200 | 200 | 244 | 244 | 244 | 269 | 269 | 269 | ||
Weight (kg) | 51 | 53 | 71 | 73 | 75 | 108 | 112 | 116 | ||
Hitch Options | Single Pin | Single Pin | Single Pin | Single Pin | Single Pin | Single Pin | Single Pin | Single Pin | ||
Double Pin | Double Pin | Double Pin | Double Pin | Double Pin | Double Pin | Double Pin | Double Pin | |||
Cradle Hitch | Cradle Hitch | Cradle Hitch | Cradle Hitch | Cradle Hitch | Cradle Hitch | Cradle Hitch | Cradle Hitch | |||
Drilling Diameter Range (mm) | 100-450 | 100-500 | 100-600 | 100-750 | 100-900 | 150-750 | 150-900 | 150-1200 | ||
Drilling Depth (m) | soft soil | 2.2-1.2 | 2.5-1.5 | 3.0-1.8 | 3.0-1.8 | 4.0-1.5 | 4.0-3.0 | 5.0-2.5 | 6.0-3.0 | |
hard soil | 1.8-1.0 | 2.1-1.3 | 2.4-1.4 | 2.4-1.4 | 3.2-1.3 | 3.2-2.4 | 4.1-2.1 | 4.9-2.4 | ||
Model | RB10000 | RB15000 | RB20000 | RB25000 | RB35000 | ||
Excavator Weight (T) | 9-13 | 10-15 | 13-20 | 15-23 | 20-45 | ||
Auger Range | S6 | S6 | S6 | S6 | PA | ||
Torque Range (Nm) | ≤10662 | ≤15059 | ≤19562 | ≤24852 | ≤35294 | ||
Oil Pressure Range (Bar） | 80-240 | 80-220 | 160-220 | 160-220 | 180-310 | ||
Oil Flow Range (lpm) | 70-150 | 70-150 | 80-170 | 80-170 | 80-198 | ||
Speed Range (rmp) | 25-53 | 19-41 | 16-33 | 12-26 | 10-28 | ||
Hub Norm | 75mm▨ | 75mm▨ | 75mm▨ | 75mm▨ | 110mm▨ | ||
Height (mm) | 907 | 907 | 1140 | 1140 | 1410 | ||
Width (mm) | 290 | 290 | 345 | 345 | 406 | ||
Weight (kg) | 163 | 165 | 268 | 269 | 442 | ||
Hitch Options | Single Pin | Single Pin | Single Pin | Single Pin | Single Pin | ||
Double Pin | Double Pin | Double Pin | Double Pin | Double Pin | |||
Cradle Hitch | Cradle Hitch | Cradle Hitch | Cradle Hitch | Cradle Hitch | |||
Drilling Diameter Range (mm) | 150-900 | 150-1200 | 150-1200 | 150-1500 | 300-1500 | ||
Drilling Depth (m) | soft soil | 6.5-4.0 | 7.5-4.5 | 8.5-5.5 | 9-5 | 10.5-7 | |
hard soil | 5.3-3.2 | 6.1-3.7 | 6.9-4.5 | 7.3-4.1 | 8.6-5.7 | ||
Product Display

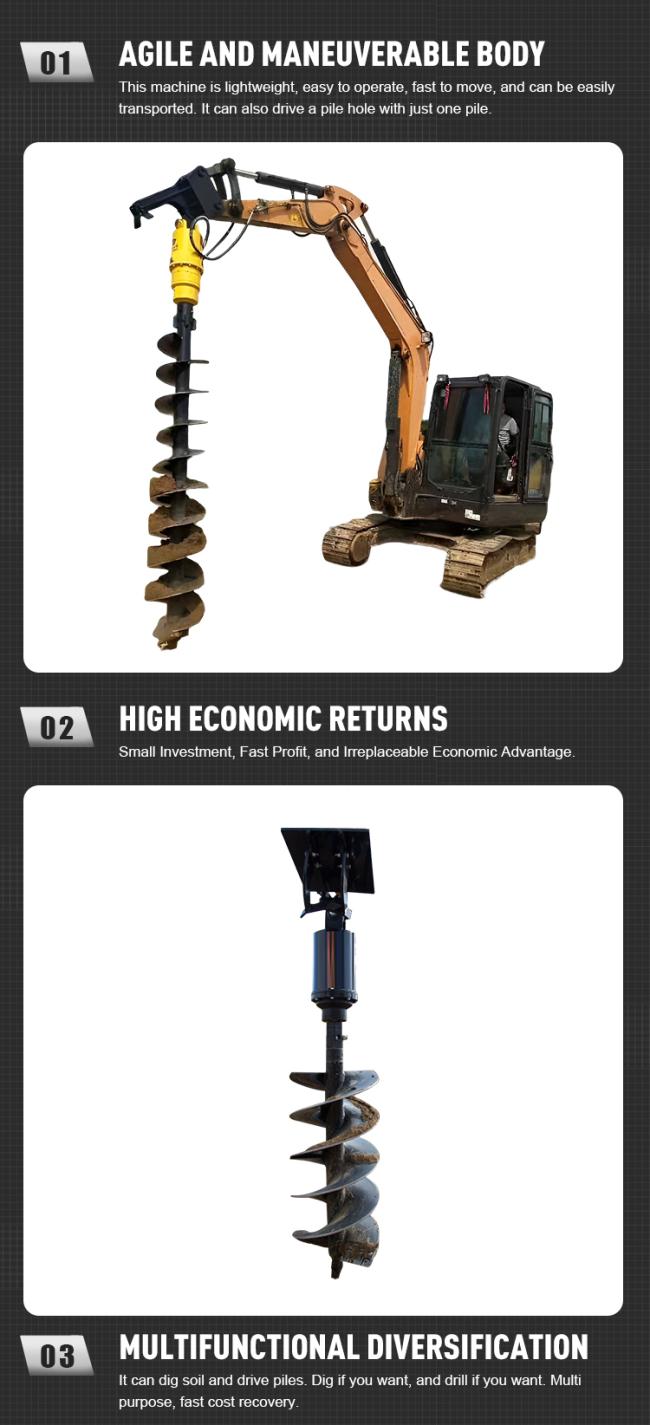

One machine for multiple uses, suitable for various projects, and easily handles various types of soil layers, such as electric drilling, forestry drilling, bridge pier drilling, etc.
FAQ
Q: Are you a trading company or manufacturer? A: We are a factory. Q: Can you produce according to the customer’s design? A: Yes, we can do customized products. Q：How can we guarantee quality? A：Always a pre-production sample before mass production; Always final Inspection before shipment; Q: What's your delivery time? A: Lead time: we have a lot of products and spare parts in stock. On leading time we have big advantages as a manufacturer, usually within 7-15 days after we receive your payment. Q: What is your best price? A: We are a direct manufacturer， and will give you a competitive price.
