Punching Wire Spool with Stainless Steel or Iron Material and GB4004-83 Standard
Punching Pressed Steel Reels

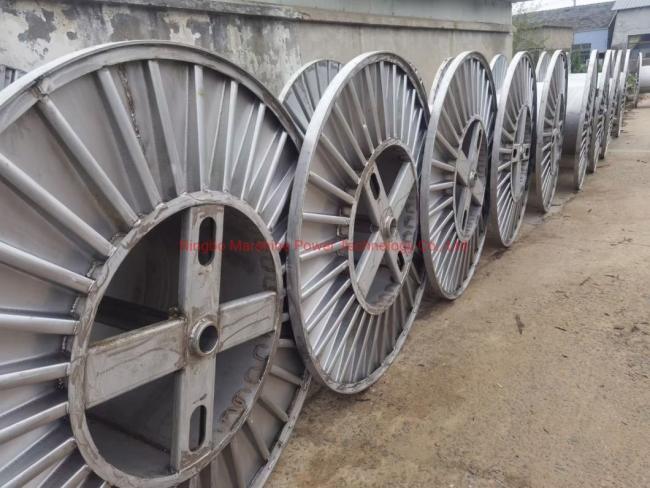

According to GB4004-83, JB/T7600.3-94, and DIN46395 standards, this product is formed by pressing and welding ordinary carbon steel Q235 (A3) thin plates. The side plates have rolled edges around their perimeter. Our Marshine's Punching Pressed Steel Reels not only enhances the strength of the side plates but also has high rigidity and toughness, lightweight, and sturdy features. It can be used for wire drawing machines, bundling machines, twisting machines, extruders, wiring machines, and armoring machines.
Product specification
| Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
| 1 | 315 | 315 | 120 | 33.5 | 16 | 86 | 238 | 200 |
| 2 | 400 | 400 | 160/200 | 56 | 16 | 71-112 | 300 | 250 |
| 3 | 440 | 440 | 220 | 80 | 16-28 | 180 | 316 | 292 |
| 4 | 450 | 450 | 180/224 | 56 | 16-28 | 71-112 | 335 | 280 |
| 5 | 500 | 500 | 250 | 56 | 16-28 | 142 | 335 | 315 |
| 6 | 560 | 560 | 224/280 | 56 | 16-28 | 71-112 | 425 | 355 |
| 7 | 600 | 600 | 250/300 | 56/60 | 16-28 | 71-112 | 340/3 85 |
300/3 50 |
| 8 | 630 | 630 | 335 | 80 | 16-32 | 140 | 495 | 450 |
| 9 | 710 | 710 | 355/400 | 80 | 28-40 | 71-112 | 530 | 450 |
| 10 | 760 | 760 | 355 | 32.5/54 | 21-35 | 64-115 95-126.5 |
345 315 |
295 280 |
| 11 | 762 | 762 | 355/400 | 60 | 25-40 | 135 | 360 | 280 |
| 12 | 787 | 787 | 450 | 127 | 25.4 | 120 | 560 | 485 |
| 13 | 800 | 800 | 450 | 200 | 28-40 | 135 | 600 | 500 |
| 14 | 900 | 900 | 380 | 80 | 28-40 | 400 | 764 | 720 |
| 15 | 1000 | 1000 | 500 | 200 | 28-40 | 320 | 780 | 660 |
Note:
1.Steel Processed Reel
2.In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards
3.Skeleton Cable Reel, steel cable reel,wire spool, steel cable drum and metal spool.
