Reinforced Structure Customizable Double Flange Cable Reel for Wire Drawing Machine
High Quality Customizable Reinforced Double Flange Cable Reel for Wire Drawing Machine

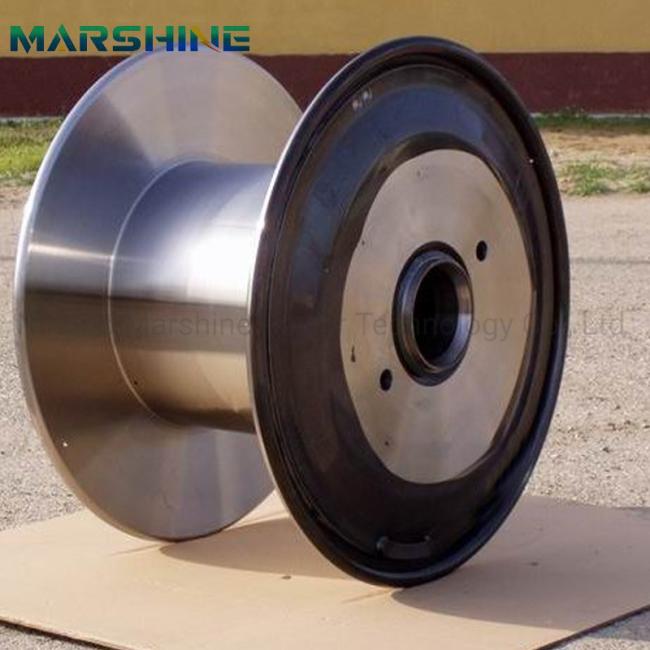

In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, our Marshine's product is formed by pressing and welding common carbon steel Q235 (A3) thin steel plate.
The perimeter of the side panel adopts a rolled edge structure. This product not only enhances the strength of the side panel, but also has the characteristics of high rigidity and toughness, light weight, and firmness. It can be used in wire drawing machines, bundling machines, twisting machines, extruders, wiring machines, and armor machines.
Specifications
| Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
| 1 | 315 | 315 | 120 | 33.5 | 16 | 86 | 238 | 200 |
| 2 | 400 | 400 | 160/200 | 56 | 16 | 71-112 | 300 | 250 |
| 3 | 440 | 440 | 220 | 80 | 16-28 | 180 | 316 | 292 |
| 4 | 450 | 450 | 180/224 | 56 | 16-28 | 71-112 | 335 | 280 |
| 5 | 500 | 500 | 250 | 56 | 16-28 | 142 | 335 | 315 |
| 6 | 560 | 560 | 224/280 | 56 | 16-28 | 71-112 | 425 | 355 |
| 8 | 630 | 630 | 335 | 80 | 16-32 | 140 | 495 | 450 |
| 9 | 710 | 710 | 355/400 | 80 | 28-40 | 71-112 | 530 | 450 |
| 11 | 762 | 762 | 355/400 | 60 | 25-40 | 135 | 360 | 280 |
| 12 | 787 | 787 | 450 | 127 | 25.4 | 120 | 560 | 485 |
| 13 | 800 | 800 | 450 | 200 | 28-40 | 135 | 600 | 500 |
| 14 | 900 | 900 | 380 | 80 | 28-40 | 400 | 764 | 720 |
| 15 | 1000 | 1000 | 500 | 200 | 28-40 | 320 | 780 | 660 |
