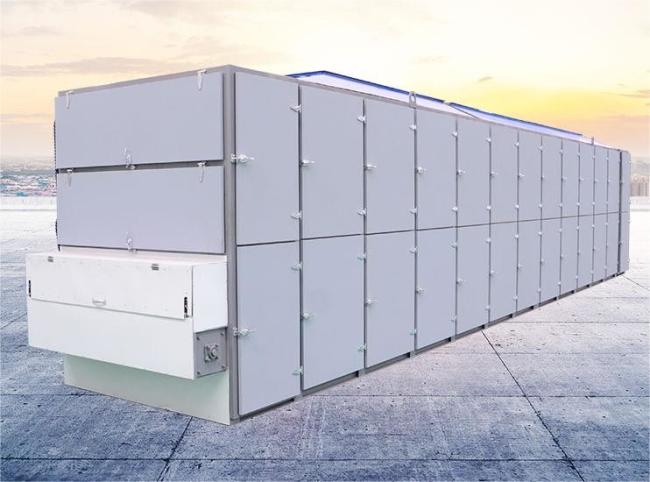

Vegetable Cassava Belt Dryer Medicinal Belt Dryer Machine Automatic

Product introduction:
The belt dryer is mainly composed of mesh belt, transmission device, air inlet pipe, air outlet pipe, fan (hot air source is set separately), etc. The main principle of mesh belt dryer is to evenly spread the material on the mesh belt, drag it back and forth in the dryer by the transmission device, and the hot air flows through the materials, and the water vapor is discharged from the moisture removal holes, so as to achieve the purpose of drying. The mesh belt adopts 12-60 mesh steel mesh belt, and the length of the box is composed of standard sections. In order to save space, the dryer can be made into a multi-layer type. The common ones are two-chamber three-layer and two-chamber five-layer. The wind direction adopts negative pressure and multi-hole air intake to ensure the effective drying area, and the wind speed is evenly distributed to improve the drying effect.

Advantages:
1. Belt dryer is intelligently dried, can be operated by one person, is stable, has a short drying cycle, and saves more costs
2. The belt dryer has small temperature fluctuations, uniform air drying, good drying effect, and uniform material drying
3. Supports customization and processing/site planning/equipment matching of various dryers, etc.
4. The air volume, heating temperature, material residence time and feeding speed can be adjusted to achieve the ideal drying effect, and the drying process is hygienic and meets the standards.
5. Heat source can be selected according to the local energy advantages of the customer. Multiple environmentally friendly heat exchange equipment such as air energy, coal, biomass pellets, natural gas, steam heat exchanger, etc.

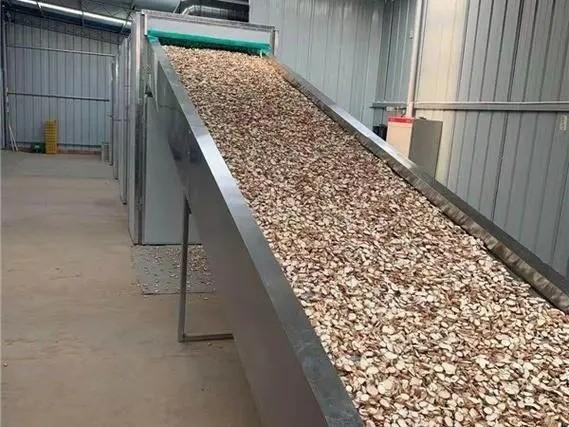

6. Dried material is directly transported to the flat conveyor through the conveyor, and the finished balls are evenly distributed on the dryer through the scraper at the upper end of the flat conveyor to improve the air permeability of the dried material.

Specification:
