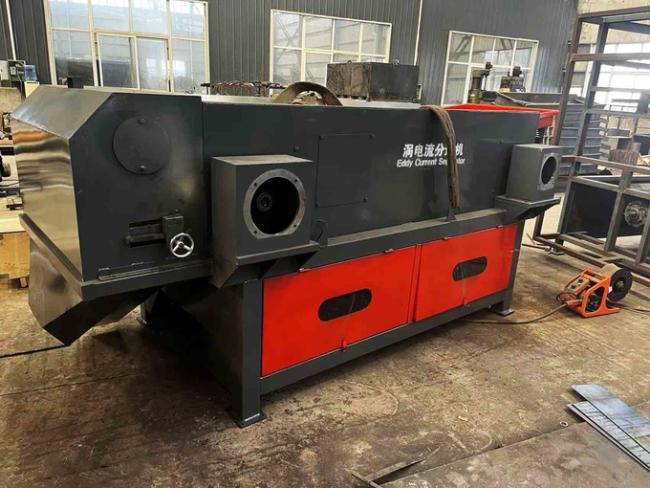

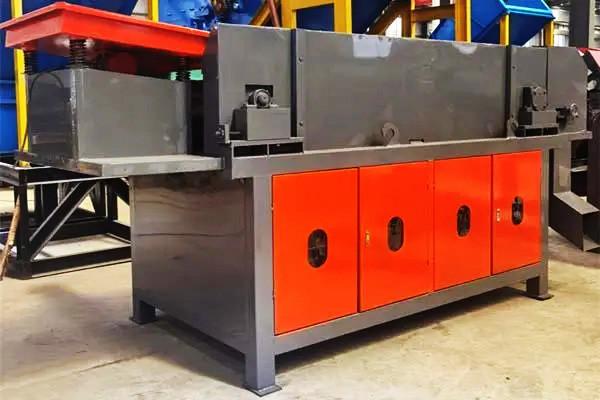

Non Ferrous Metal Sorting Separator Aluminum And Copper Separator

Product introduction:
Eddy current separator is mainly used for sorting nonferrous metals in industrial and domestic waste. It is widely used in electronic waste treatment, domestic waste sorting, scrap car dismantling and recycling, scrap electrical appliance recycling, industrial slag recycling and material processing in nonferrous metal processing industry, waste copper (aluminum) power cables, aluminum products, automobile waste, non-ferrous metal fragments, circuit board crushed materials, non-ferrous metal glass slag, electronic waste, multi-metal (copper, aluminum, zinc) mixture, metal slag after garbage burning, plastic and metal mixture, etc.The complete set of equipment consists of two parts: control and main body; the main body mainly includes frame, motor, distributor, sorting assembly (core component of the equipment), permanent magnet roller, conveyor belt, conveyor drive roller, reducer, protective cover, etc.

Features of eddy current separator:
1. The belt can be frequency-controlled, and the material baffle can be flexibly adjusted to adapt to the separation of different materials.
2. Imported bearings, sealed protection, intelligent temperature control protection, long service life.
3. The self-developed magnetic system arrangement method improves the metal induction throwing force and increases the separation accuracy.
4. Eccentric magnetic roller, magnetic system protection, prevents magnetic particles from entering, and protects the magnetic roller and belt.
5. The eddy current separator has a high cost performance, low fuel consumption, high work efficiency, and effectively shortens the construction period.
6. The eddy current separator has a reasonable structural design, and the various components work together. It is stable and reliable during operation, with a low failure rate.
7. The eddy current separator has a high degree of automation, a stable working process, simple operation, and saves time and effort.

8. Materials of different particle sizes can sorted according to different rotation directions of rotor.

9. The span of separable metal particles is large,usually between 3-100mm.
