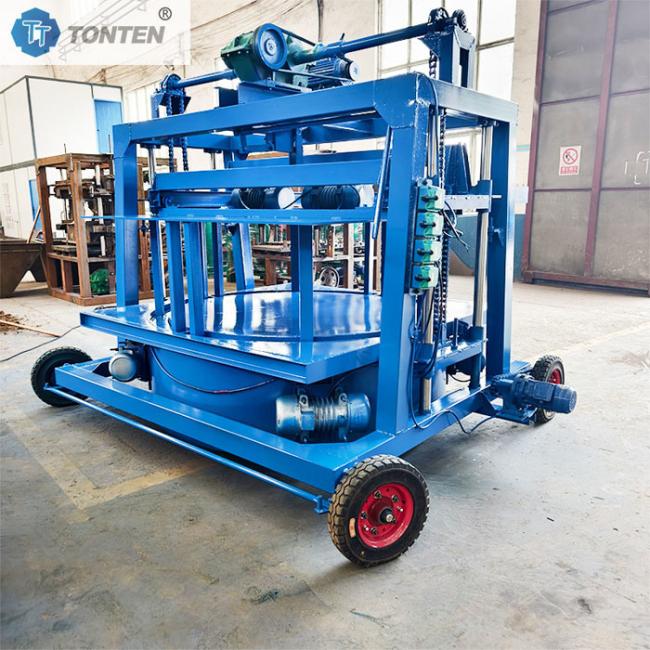

One-Meter Concrete Well Ring Brick Well Ring Forming Machine

Product Description:

The more professional name for the well ring brick making machine is concrete inspection well block forming machine or well cylinder component forming machine. TONTEN well ring machines are specialized equipment for the mass production and standardized production of circular well components (such as well rings, well cylinders, adjusting rings, and covers) used in municipal engineering inspection wells and rainwater wells.Automated, cyclical production yields output far exceeding that of manual masonry or on-site prefabrication.Well ring brick making machine is a high integration of modern building materials machinery technology, hydraulic technology, automatic control technology and mold technology. It is the core equipment for realizing the prefabrication, standardization and industrialization of municipal components.

Core Mold:

Molds are crucial in determining the shape, size, and precision of a product. Well ring molds are typically designed for vertical molding (product demolding vertically), and their characteristics are as follows:
Integral Cylindrical Mold:Consists of an outer mold sleeve and an inner mold core, used for producing solid-wall well rings. The inner mold is usually retractable for demolding.
Modular Assembly Mold:Composed of multiple curved modules (e.g., 6-8 pieces) assembled into a circle, capable of producing block-type well rings with holes (e.g., tongue and groove joints, insertion holes). This is currently the most mainstream type, offering high flexibility.
Material:Manufactured using high-strength, high-wear-resistant alloy steel (e.g., chromium-manganese alloy), heat-treated and precision-machined to ensure durability and dimensional accuracy.
Demolding Taper: The mold has a slight slope (demolding taper) to prevent the product from "seizing" on the mold.
Quick Change Mechanism:Mold modules with different inner diameters and heights can be easily replaced using bolts, hydraulic locking, etc., to produce products of different specifications.

Surface treatment: Polishing or special coating to ensure a smooth product surface and easy demolding.

Advantages of well ring forming machines:

High Quality: High-pressure molding results in high product density, high strength, precise dimensions, and uniform appearance.

High Flexibility: By changing molds, a series of well body components with different diameters and functions can be produced.

Material Saving and Environmental Protection: Precise steel reinforcement and concrete proportions minimize material waste; factory production reduces on-site pollution.

TONTEN Well Pipe Well Specifications:
