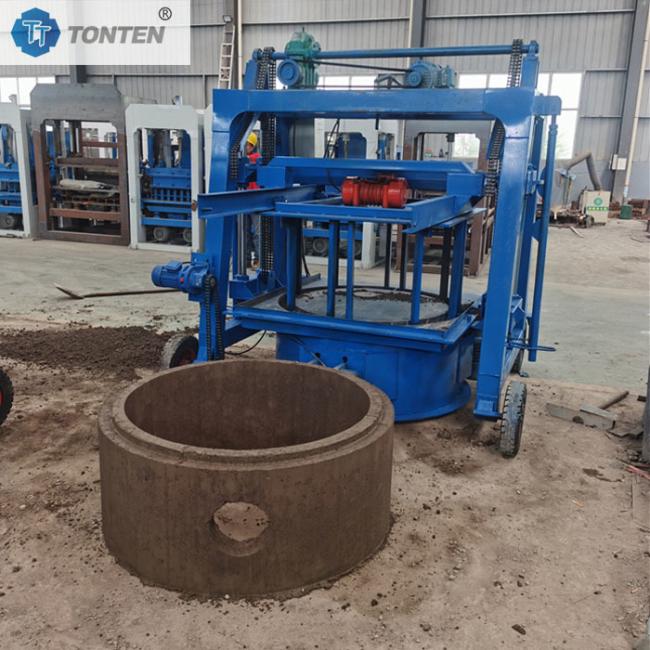

Mobile Concrete Well Manhole Ring Machine Concrete Pipe Forming Machine

Introduction to the Manhole Ring Machine:
The TONTEN Manhole Ring Machine is primarily utilized in municipal engineering, construction sites, and precast component factories to manufacture cement inspection manholes and their associated components, which serve as integral parts of underground utility networks (such as sewers, cable trenches, communication conduits, etc.). By simply changing the molds, the machine can also be used to produce a variety of other concrete products, including curbstones, slope protection blocks, and standard masonry blocks.

Core Components:
Machine Frame: Welded from high-strength structural steel, this serves as the machine's primary skeletal structure; it is engineered to possess exceptional rigidity and stability to withstand immense vibration and compressive forces.
Machine Base: Supports the entire assembly and connects directly to the vibrating table.
Mold (Mold Box): The core operational component, precision-machined from high-strength steel plates; it determines the final shape and dimensions of the manufactured products. Typically comprising side plates, core tubes, and other elements, the mold can be rapidly interchanged to accommodate the production of different product types.
Press Head: Positioned above the mold, this component is driven by a hydraulic cylinder to exert downward pressure, thereby compacting and densifying the material contained within the mold box.
Hydraulic Station: Consists of an electric motor, hydraulic pump, hydraulic cylinders, control valves, and an oil reservoir.
Vibration Motor/Vibrator: Mounted beneath the vibrating table, this unit generates high-frequency, high-amplitude, vertically-oriented vibrations through the high-speed rotation of eccentric weights.
Vibrating Table: Supports the mold and the raw material, ensuring the uniform transmission of vibration energy to facilitate thorough flow, air evacuation, and compaction of the material within the mold box.
Hopper and Feeder: Stores the pre-mixed, semi-dry (stiff) concrete material.

Advantages:
High Efficiency and Productivity: Featuring a high degree of automation, the machine enables continuous 24-hour production, with a single unit capable of producing thousands of units per day.
Superior Molding Quality: The manhole ring machine employs a "vibration + compression" molding process, resulting in products with high density, exceptional strength, precise dimensions, and a neat, uniform appearance.
Versatile Functionality: By simply changing the molds, the machine can produce manhole rings and various municipal components of different specifications, offering a high return on investment.
Waste Utilization and Environmental Protection: It can directly utilize construction waste, fly ash, slag, stone dust, and similar materials as raw inputs, thereby facilitating the effective recycling and utilization of resources.
Ease of Operation: The machine features a user-friendly human-machine interface, requiring relatively low technical proficiency from the operator.

TONTEN Well Pipe Well Specifications:
