DFSK EV Electric Trucks RuiChi EC31 243.67 Cu.Ft. Small Cargo Box Truck 60kw Motor
DFSK Electric Trucks RuiChi EC31 243.67 Cu.ft. Small Cargo Box Truck
Specification
|
Ruichi EC31 Mini Truck
|
||
|
Item
|
EC31 Box Cargo (Corrugated) | EC31 Refrigeration |
|
Basic
|
||
|
Size (mm)
|
4710×1635×2460 | 4735×1635×2440 |
|
Body Type
|
load-bearing body | |
|
Body
|
||
|
Length (mm)
|
4710 | 4735 |
|
Width (mm)
|
1635 | 1635 |
|
High (mm)
|
2460 | 2440 |
|
Wheel tread (mm)
|
3050 | |
|
Front Wheelbase (mm)
|
1410 | |
|
Rear Wheelbase (mm)
|
1410 | |
|
Curb weight (kg)
|
1425 | 1570 |
|
Door
|
2 | |
|
Seat
|
2 | |
|
Cargo Size (mm)
|
2770×1550/1570×1610 | 2660×1450×1430 |
|
Van cargo volume (m³)
|
6.9/7.0 | 5.5 |
|
Rated load mass (kg)
|
1045 | 900 |
|
Max Speed (km/h)
|
80 | |
|
Approach angle (°)
|
30 | |
|
Departure angle (°)
|
35 | |
|
Power
|
||
|
Motor type
|
Permanent magnet synchronous motor | |
|
Battery type
|
Lithium Iron Phosphate | |
|
Total motor power (kw)
|
60 | |
|
Total motor torque
|
220 | |
|
Number of drive motors
|
1 | |
|
Motor layout
|
Horizontal | |
|
Operating mileage (CLTC)
|
275 | |
|
Operating mileage (NEDC)
|
/ | |
|
Battery capacity
|
38.64 kWh (AVIC Battery) | |
|
Battery heating function
|
● | |
|
Chassis steering
|
||
|
Drive mode
|
RWD | |
|
Front suspension type
|
MacPherson independent suspension | |
|
Rear suspension type
|
Longitudinal leaf spring non-independent suspension | |
|
Assist type
|
Electronic Assistance (EPS) | |
|
Body structure
|
load-bearing body | |
|
Wheel brake
|
||
|
Front brake type
|
Disc brakes | |
|
Rear brake type
|
Drum brake | |
|
Parking brake type
|
Mechanical | |
|
Front Rear tire specifications
|
185R14LT 8PR | |
|
Active/passive safety equipment
|
||
|
Passive pedestrian protection device
|
Seat belt | |
|
Seat belt not fastened reminder
|
● | |
|
ABS anti-lock
|
● | |
|
Braking force distribution (EBD/CBC, etc.)
|
● | |
|
External/anti-theft configuration
|
||
|
Central locking in car
|
● | |
|
Front/rear electric windows
|
Front | |
|
Remote key
|
● | |
|
Multimedia configuration
|
||
|
Number of speakers
|
2 | |
|
Lighting configuration
|
||
|
Headlight
|
Halogen | |
|
Headlight height adjustable
|
● | |
|
Seat configuration
|
||
|
Driver/Passenger seat adjustment form
|
Backrest adjustment | |
|
Air
|
||
|
Air conditioning temperature control method
|
●Manual | |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional, and "-" - indicates that there is no such configuration;
Ruichi EC31 Small Cargo Box Truck Description

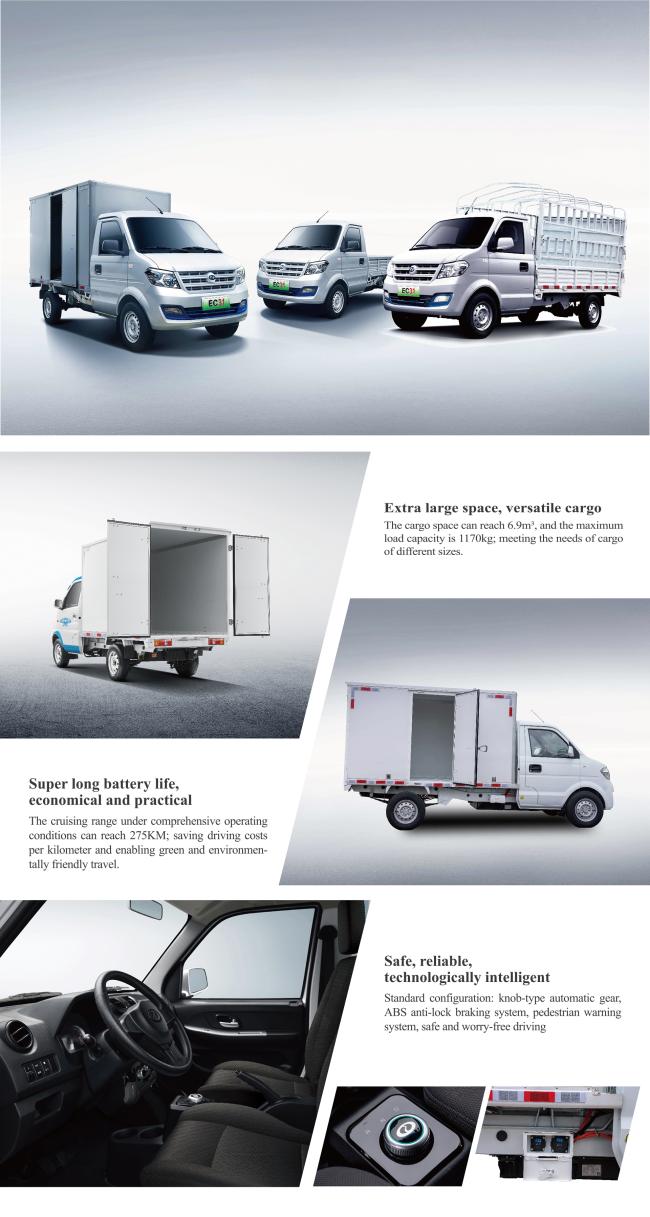

Anout RUICHI EC31: Ruichi EC31 mainly has two models: cargo box and refrigerated truck, AVIC battery, 38.64kWh, 275KM range. 2 seats, 243.67 cubic feet small cargo box truck, the two models have different body and cargo box sizes to meet the transportation needs of different sizes of goods.
