C1020 C1100 T2 ETP Copper Bar C1011 Pure Red Round 1 Copper Rod
Details of Pure Red Round C1011 C1020 C1100 T2 ETP Copper Bar / Rod
|
Item |
Pure Red Round C1011 C1020 C1100 T2 ETP Copper Bar / Rod |
|
Standard |
JIS H3250-2006,ASTM B152M,GB/T2040-2008,etc |
|
Material
|
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, C71500,C71520,C71640,C72200,etc |
|
Size |
Thickness:0.1mm~500mm Width:4mm~2500mm Length:1m~12m or as required. |
|
Hardness |
1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
|
Surface |
mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
|
Package |
Standard export package ,or as required. |
|
Application
|
1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial application |
| Grade | Chemical Composition(%) | |||||||||||||
| GB | JIS | Cu+Ag | P | Bi | Sb | As | Fe | Ni | Pb | Sn | S | Zn | O | |
| Refined Copper | T1 | C1020 | 99.95 | 0.001 | 0.001 | 0.002 | 0.002 | 0.005 | 0.002 | 0.003 | 0.002 | 0.005 | 0.005 | 0.02 |
| T2 | C1100 | 99.9 | - | 0.001 | 0.002 | 0.002 | 0.005 | - | 0.005 | - | 0.005 | - | - | |
| T3 | C1221 | 99.7 | - | 0.002 | - | - | - | - | 0.01 | - | — | - | - | |
| Oxygen Free Copper | TU0 | C1011 | 99.99 | 0.0003 | 0.0001 | 0.0004 | 0.0005 | 0.001 | 0.001 | 0.0005 | 0.0002 | 0.0015 | 0.0001 | 0.0005 |
| TU1 | C1020 | 99.97 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.003 | 0.002 | 0.004 | 0.003 | 0.002 | |
| TU2 | 99.95 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.004 | 0.002 | 0.004 | 0.003 | 0.003 | ||
| Grade | Temper | Hardness(HV) | Tensile strength(Mpa) | Elongation(%) |
| C1100 C1200 C1220 etc. | Soft | <60 | >205 | ≥40 |
| 1/4H | 55-100 | 217-275 | ≥35 | |
| 1/2H | 75-120 | 245-345 | ≥25 | |
| H | 105-175 | >295 | ≥13 |
| Diameter(mm) | Diameter(mm) | Diameter(mm) | Diameter(mm) | Diameter(mm) |
| 1 (wire coiling) | 2 (wire coiling) | 3 (wire coiling) | 4 (wire coiling) | 5 (wire coiling) |
| 3 | 4 | 5 | 6 | 7 |
| 8 | 10 | 11 | 12 | 13 |
| 14 | 15 | 16 | 18 | 20 |
| 22 | 24 | 25 | 26 | 28 |
| 30 | 32 | 35 | 38 | 40 |
| 42 | 45 | 50 | 55 | 60 |
| 65 | 70 | 75 | 80 | 85 |
| 90 | 95 | 100 | 110 | 120 |
| 130 | 140 | 150 | 160 | 180 |
| 200 | 250 | We Can Customize Any Size, Please Contact US. | ||

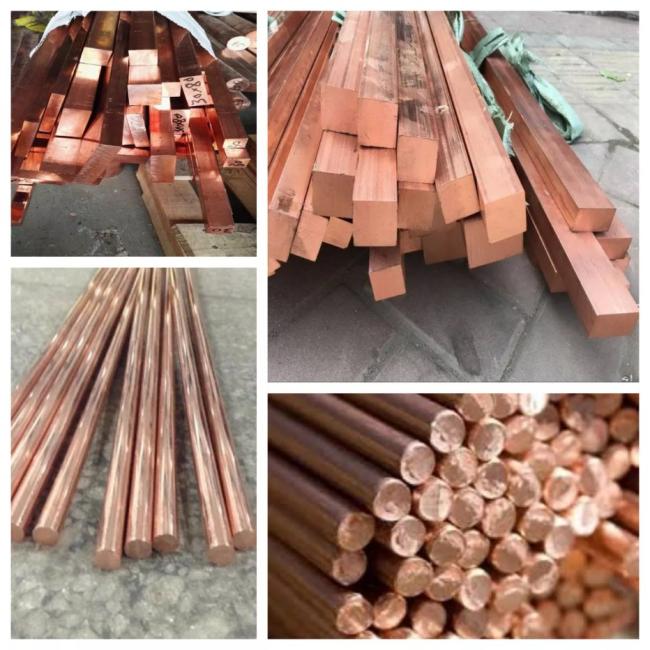

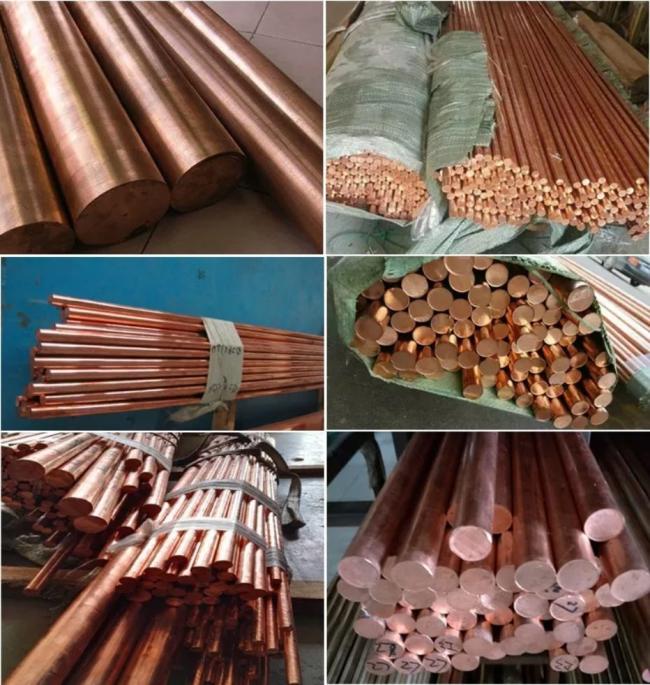

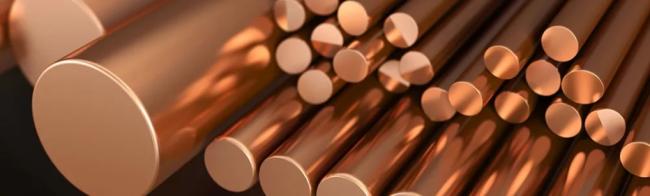

Images of Pure Red Round C1011 C1020 C1100 T2 ETP Copper Bar / Rod
Company Profile
Jiangsu Tisco Industrial Co.,Ltd was founded in 2008. After 14 years of rapid development, JSTISCO has become a modern comprehensive steel service enterprise which specializes in processing, sales and technical services in the field of stainless steel product. JSTISCO is specialized in various kinds of stainless steel pipe, plate, coil, bar, pipe fitting, high nicked alloy steel products, high temperature resistant products, and other OEM&ODM service.
JSTISCO products are certified by ISO9001,TS16949, BV and other international famous authentication institutions. JSTISCO products are widely used in various fields and have been service more than 10 years. Customers are full of African, Europe, American and etc.
We welcome all users, manufactures and traders to cooperate with us.
FAQ
Q:Are you a manufacturer or a trading company?
A:We are a factory, with 12 years’ selling experience.
Q:Where is your factory located?
A:Our factory is located in Wuxi city, in Jiangsu Province,China.
Q:How can I get a sample?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q:What payment options do you offer?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Q:What are the details of your after sales service?
A:1) We provide the necessary technical support to all of our customers, such as material performance and heat treatment data advice.
2) We provide the appropriate steel material technical parameters for customers in Germany, The USA, Japan, Britain, and other countries.
