1.05 inches, driven by GC9A01, a TFT display with a resolution of 128X240 IPS LCD screen, available in plug-in or soldered types

Price Negotiable
Price: Prices are set based on design and quantity.
MOQ: First purchase, no purchase quantity limit.
Delivery Time: 4~6 Working Days
Product Description

The size of the 1.05-inch color IPS screen









Product details of the 1.05-inch color IPS screen

1.05-inch color IPS screen with soldered interface definition

Pin Symbol Pin Symbol
1 NC 8 GND
2 NC 9 NC
3 SDA 10 VDD
4 SCL 11 LEDK
5 RS 12 LEDA
6 RES 13 GND
7 CS

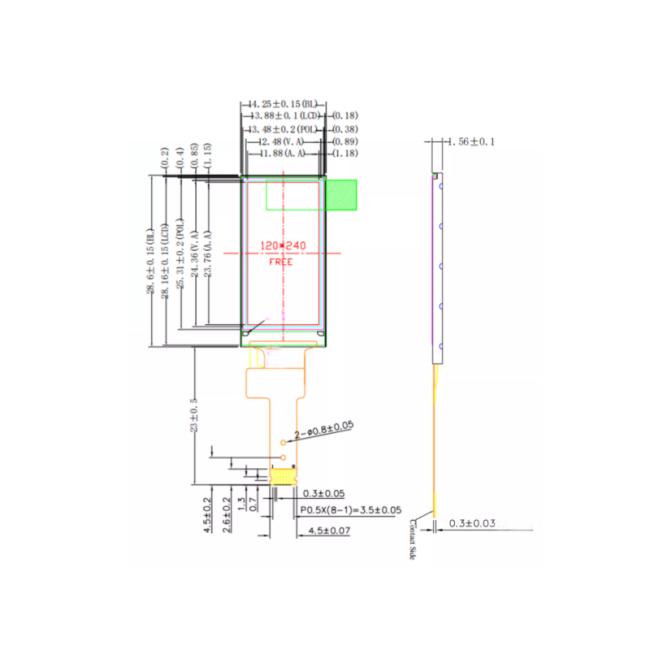

1.05-inch color IPS screen plug-in structure drawing
