2.4 inches, driven by ili9341/ST7789, 240X320 TFT high-definition display screen, with optional touch or non-touch functions
Price:
Prices are set based on design and quantity.
MOQ:
First purchase, no purchase quantity limit.
Delivery Time:
4~6 Working Days
Brand:
ORIENTRONIC
Product Description

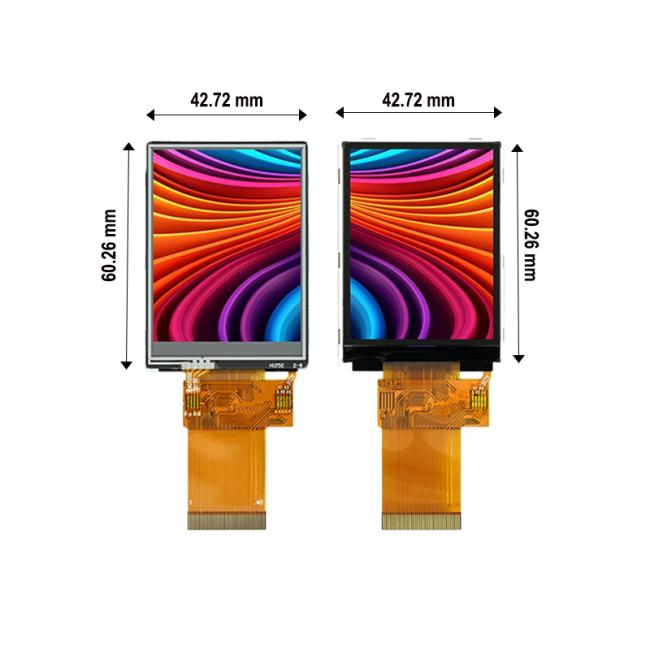

2.4-inch color TFT screen size

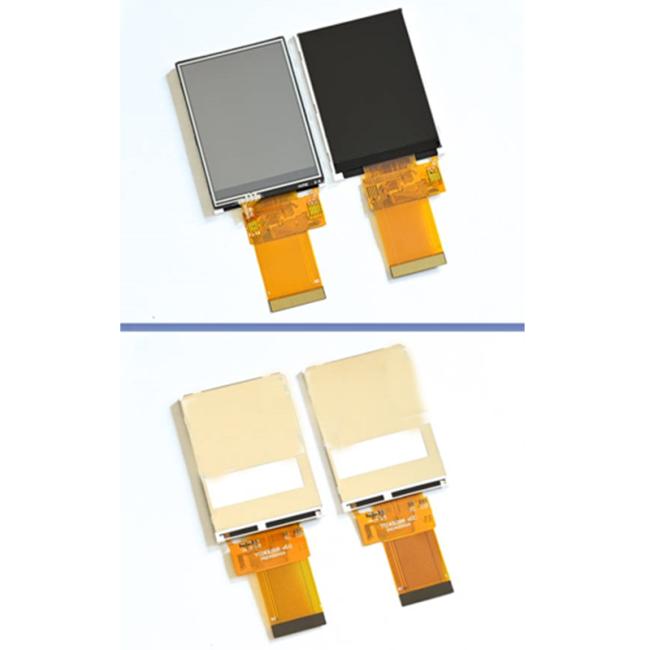

2.4-inch product details presentation
2.4-inch Display Interface Definition
| Pin | Symbol | Pin | Symbol |
| 1 | X(L) | 21 | DB4 |
| 2 | Y(U) | 22 | DB5 |
| 3 | X(R) | 23 | DB6 |
| 4 | Y(D) | 24 | DB7 |
| 5 | CND | 25 | DB8 |
| 6 | IOVCC(1.8V/2.8V) | 26 | DB9 |
| 7 | VCI(2.8V) | 27 | DB10 |
| 8 | FMARK | 28 | DB11 |
| 9 |
CS/SPI CS |
29 | DB12 |
| 10 | RS/SPI SCL/SCK | 30 | DB13 |
| 11 | WR/A0(4?) | 31 | DB14 |
| 12 | RD | 32 | DB15 |
| 13 | SPI SDI/SDA | 33 | A |
| 14 | SPI SDD | 34 | K |
| 15 | RESET | 35 | K |
| 16 | GND | 36 | K |
| 17 | DB0 | 37 | GND |
| 18 | DB1 | 38 | IM0 |
| 19 | DB2 | 39 | IM1 |
| 20 | DB3 | 40 | IM2 |

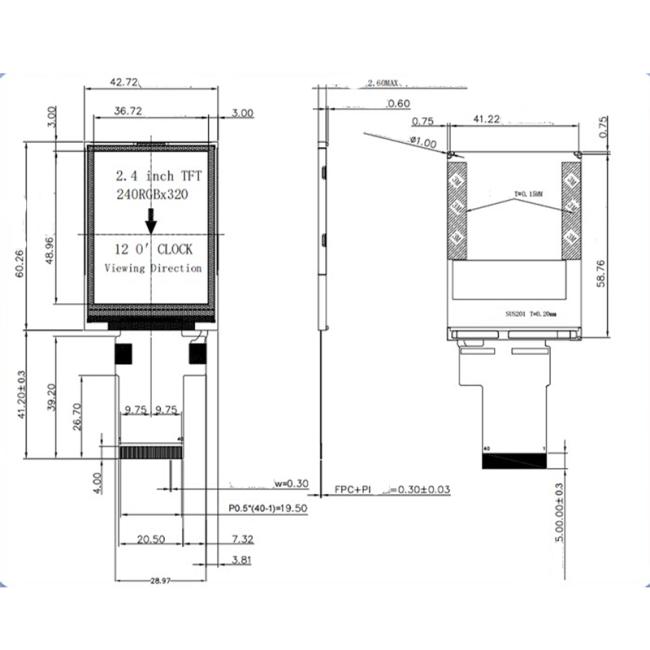

Structural parameter drawing
