0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen

Price Negotiable
Price: Prices are set based on design and quantity
MOQ: First purchase, no purchase quantity limit.
Delivery Time: 4~6 Working Days
Brand: ORIENTRONIC
Product Description

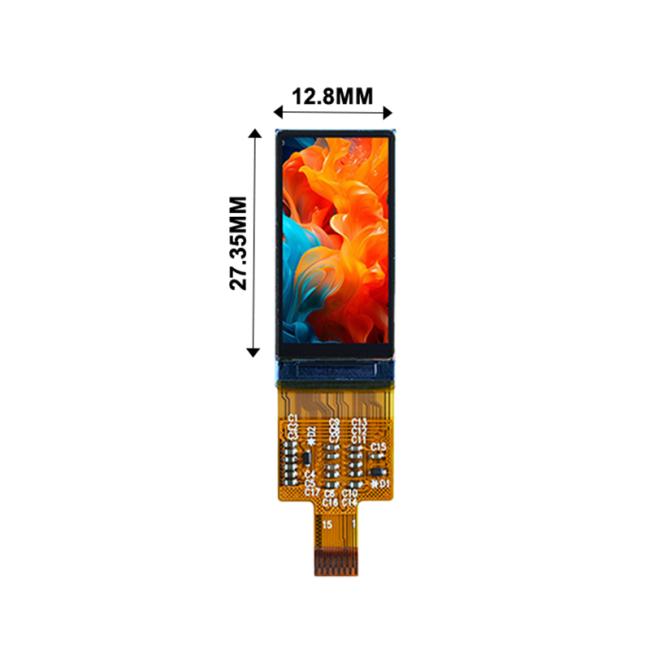

0.95-inch AMOLED screen size

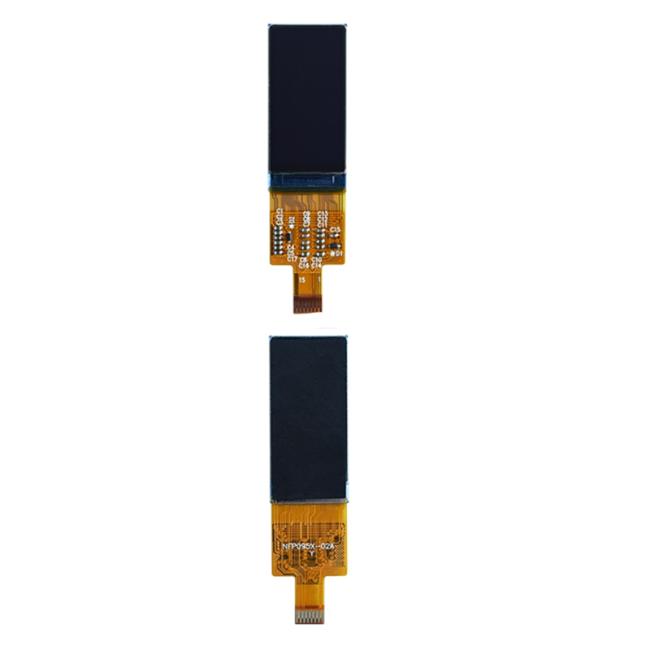

Product Details of the 0.95-inch AMOLED Display

Pinout for the 0.95-inch AMOLED Display

Pin Symbol Pin Symbol
1 ELVSS 9 CS
2 ELVDD 10 SCL
3 MTP 11 RS
4 VCC 12 SDA
5 IOVCC 13 GND
6 SWIRE 14 GND
7 TE 15 GND
8 RESET

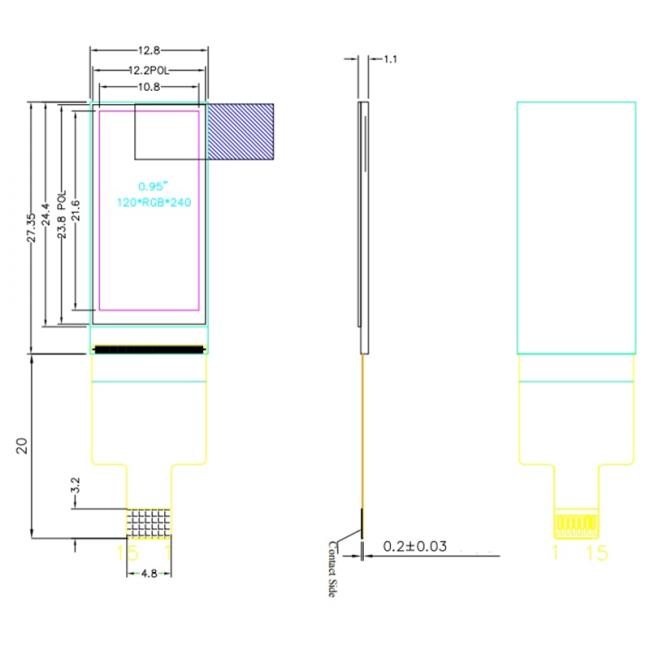

Structural Parameter Drawings for a 0.95-inch AMOLED Display
