Japan Engine 2.5ton LPG Forklift Load Center 500mm Duplex Mast for Your Requirements
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description
Forklift Description
![Japan Engine 2.5ton LPG Forklift Price]()
![Japan Engine 2.5ton LPG Forklift Price]()
![Japan Engine 2.5ton LPG Forklift Price]()
Forkift Quality Control
![Japan Engine 2.5ton LPG Forklift Price]()
We use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.Every forklift part is produced by ourselves, our products are all well-designed and strictly tested, We traite every process from prepare materials- structure-painting-assambly to delivery to make customer's satisfaction.
Packing & Delivery
![Japan Engine 2.5ton LPG Forklift Price]()
Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.
Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.
Packaging&Shipping 1*20'GP - 3 Units, 1*40'GP - 6 Units
Forklift Factory
![Japan Engine 2.5ton LPG Forklift Price]()
We are first calss in Chinese forklift manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume
our R&D research is in Britain, and we invested over 600 million in fork lifter factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.
Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions
Forklift Catalogue
![Japan Engine 2.5ton LPG Forklift Price]()
I. Diesel forklift range from 1.5 to 16ton;
II. Battery forklift range from 1.5 to 3.5ton;
III.LPG and gasoline forklift range from 1.5 to 3.5 ton;
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.
| Specifications | Unit | FL25 | |||
| 1 | Characteristics | Power | Gas | ||
| 2 | Rated Capacity | kg | 2500 | ||
| 3 | Center of load | mm | 500 | ||
| 4 | Lifting height | mm | 3000 | ||
| 5 | Free lifting height | mm | 135 | ||
| 6 | Forks L×W×H | mm | 1070x122x40 | ||
| 7 | Tilt Forward/Backward | . | 6/12 | ||
| 8 | Min.turning radius | mm | 2240 | ||
| 9 | Min.ground clearance(Mast) | mm | 110 | ||
| 10 | Overhead guard height | mm | 2120 | ||
| 11 | Height from seat to overhead guard | mm | 943 | ||
| 12 | Front overhang | mm | 473 | ||
| 13 | Perf | Max.traveling speed(loaded) | km/h | 19 | |
| 14 | Max.lifting speed(loaded/empty) | mm/s | 470/510 | ||
| 15 | Drawbar pull/Gradeability | kN/% | 17/20 | ||
| 16 | Dimensions | Overall length (without fork) | mm | 2570 | |
| 17 | Overall width | mm | 1175 | ||
| 18 | Mast lowered height | mm | 1990 | ||
| 19 | Mast extended height | mm | 4000 | ||
| 20 | Chassis | Tire | Front | 7.00-12-12PR | |
| 21 | Rear | 6.00-9-10PR | |||
| 22 | Wheelbase | mm | 1600 | ||
| 23 | Tread width | Front/Rear | mm | 970/970 | |
| 24 | Curb weight | None-load | kg | 3750 | |
| 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |

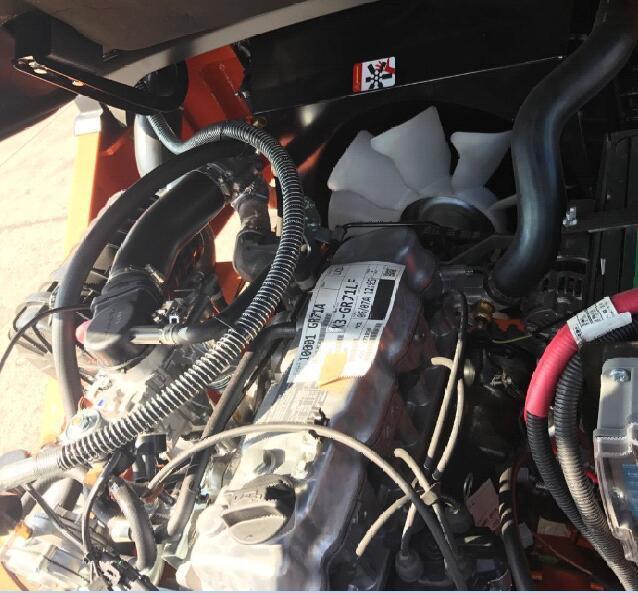

| 26 | Engine | Model | Nissan K25 | ||
| 27 | Rated power | kw/r.p.m | 37.4/23400 | ||
| 28 | Rated torque | Nm/r.p.m | 176/1600 | ||
| 29 | Cylinder amount | 4 | |||
| 30 | Bore×Stroke | mm | 89x100 | ||
| 31 | Displacement | 2.488 | |||
| 32 | Fuel tank | L | 60 | ||
| 33 | Transmission | 1/1 automatic transmission | |||
| 34 | Working pressure | MPa | 17.5 | ||
Forklift Details
2.5ton Gas forklift details like:Led light/Warning lights/Luxury waist support seat/ Ramjet overhead gua Lamp shade protection frame /Tilt cylinder dust shield.
![Japan Engine 2.5ton LPG Forklift Price]()
![Japan Engine 2.5ton LPG Forklift Price]()
![Japan Engine 2.5ton LPG Forklift Price]()
2.5ton Gas forklift details like:Led light/Warning lights/Luxury waist support seat/ Ramjet overhead gua Lamp shade protection frame /Tilt cylinder dust shield.
We use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.Every forklift part is produced by ourselves, our products are all well-designed and strictly tested, We traite every process from prepare materials- structure-painting-assambly to delivery to make customer's satisfaction.
Packing & Delivery
Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.
Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.
Packaging&Shipping 1*20'GP - 3 Units, 1*40'GP - 6 Units
Forklift Factory
We are first calss in Chinese forklift manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume
our R&D research is in Britain, and we invested over 600 million in fork lifter factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.
Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions
Forklift Catalogue
I. Diesel forklift range from 1.5 to 16ton;
II. Battery forklift range from 1.5 to 3.5ton;
III.LPG and gasoline forklift range from 1.5 to 3.5 ton;
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.
