3.5ton Forklift Trucks with Bale Clamp Fork Size 1070*125*45mm Luxury Suspension Seat
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description
3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()

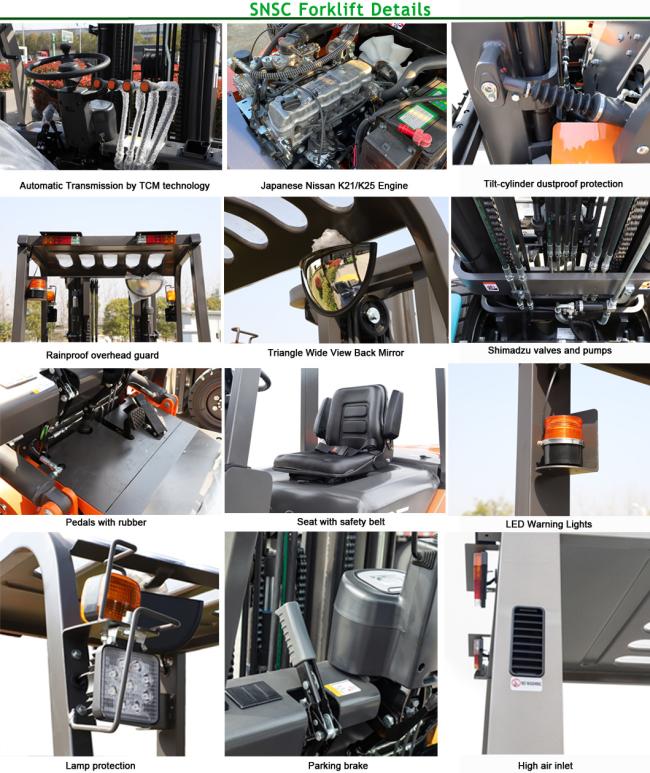

Description of 3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp :
(1) Japan Nissan K25 engine;
Description of 3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp :
(1) Japan Nissan K25 engine;
(2) Auto electric hydraulic transmission by TCM technology;
(3) Japan hydraulic system, by using Shimadzu Valve and Pump;
(4) Copper radiator, with better heat radiation;
(5) Waterproof overhead guard;
(6) LED Light with protection guard;
(7) Tilt-cylinder dustproof protection;
(8) Luxury fully suspended seat with armbelt and safety belt;
(9) Warning light;
(10) Triangle rearview mirror, adopt a convex mirror to get a wider view;
(11) Red/Yellow/Green/Blue colors for your choice;
(12) Standard Duplex 3m mast.
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()
|
Specifications
|
|
Unit
|
FL30
|
FL35
|
||
|
1
|
Features
|
Power type
|
|
-
|
LPG&Gasoline | |
|
2
|
Rated load
|
|
kg
|
3000
|
3500
|
|
|
3
|
Load center
|
|
mm
|
500
|
500
|
|
|
4
|
Lifting Height
|
|
mm
|
3000
|
3000
|
|
|
5
|
Free lifting height
|
|
mm
|
145
|
145
|
|
|
6
|
Fork size
|
LxWxT
|
mm
|
1070X125X45
|
1070X125X45
|
|
|
7
|
Mast Tilt Angle
|
Front/Read
|
°
|
6/12
|
6/12
|
|
|
8
|
Min. Turning Radius
|
|
mm
|
2600
|
2600
|
|
|
9
|
Min. Stacking Right Angle Channel Width
|
|
mm
|
4550
|
4550
|
|
|
10
|
Min. Ground Clearance
|
Mast
|
mm
|
120
|
120
|
|
|
11
|
Overhear Guard Height
|
|
mm
|
2170
|
2170
|
|
|
12
|
Front Overhang
|
|
mm
|
480
|
480
|
|
|
13
|
Rear Overhang
|
|
mm
|
545
|
545
|
|
|
14
|
Performances
|
Max. Travelling Speed
|
loaded
|
Km/h
|
20
|
20
|
|
15
|
Max. Lifting Speed
|
loaded/empty
|
mm/s
|
470/520
|
470/520
|
|
|
16
|
Max. Traction Force
|
loaded
|
KN
|
18
|
18
|
|
|
17
|
Max. Climbing Ability
|
|
°
|
20
|
20
|
|
|
18
|
Dimension
|
Overall Length
|
without fork
|
mm
|
2825
|
2825
|
|
19
|
Overall Width
|
|
mm
|
1230
|
1230
|
|
|
20
|
Mast Lowered Height
|
|
mm
|
2065
|
2095
|
|
|
21
|
Mast Extended Height
|
|
mm
|
4260
|
4265
|
|
|
22
|
Chassis
|
Tyre
|
Front
|
-
|
28x9-15-12PR
|
28X9-15-12PR
|
|
23
|
Rear
|
-
|
6.50-10-10PR
|
6.50-10-10PR
|
||
|
24
|
Wheel Base
|
|
mm
|
1800
|
1800
|
|
|
25
|
Wheel Thread
|
Front/Rear
|
mm
|
1000/970
|
1000/970
|
|
|
26
|
Weight(without load)
|
|
kg
|
4250
|
4450
|
|
|
27
|
Powertrain
|
Battery
|
|
V/Ah
|
12/90
|
12/90
|
|
28
|
Engine
|
Model
|
-
|
C490BPG
|
C490BPG
|
|
|
29
|
Rated Power
|
KW/r.p.m
|
39/2650
|
39/2650
|
||
|
30
|
Rated Torque
|
N.m/r.p.m
|
157/1980
|
157/1980
|
||
|
31
|
No. of cylinder
|
-
|
4
|
4
|
||
|
32
|
Bore x Stroke
|
mm
|
90 x 105
|
90 x 105
|
||
|
33
|
Displacement
|
|
L
|
2.67
|
2.67
|
|
|
34
|
Fuel Tank Capacity
|
|
L
|
70
|
70
|
|
|
35
|
Transmission/Shift
|
|
-
|
1/1 Automatic transmission
|
||
|
36
|
Operation Pressure
|
|
MPa
|
17.5
|
17.5
|
|
Common Options of 3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp
(1) Mast: Triplex full free 4m 4.5m 6m 7m Mast
(2) Side Shifter: China Anqing or USA cascade brand
(3) Tires: Double front tires, solid tires
(4) Attachment: VIP Solution, block clamps, paper roll clamps, bale clamps
(5) Others: Vertical exhaust, Fork extension, Cab, Fork positioner
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()

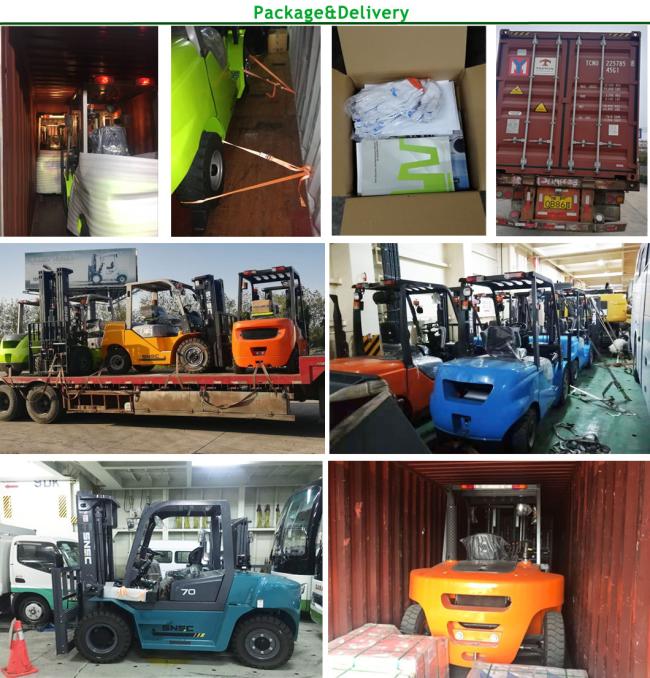

Package& Shipping of 3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp
Package: We combined Triangle iron Wedge with Flexible packing tape to fix the forklift, attachments, and accessories carton case in the 20' GP or 40' GP.
Shipping: as for 3.0-3.5T forklift, 1*20'GP - 2 Units, 1*40'GP - 4 Units
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()

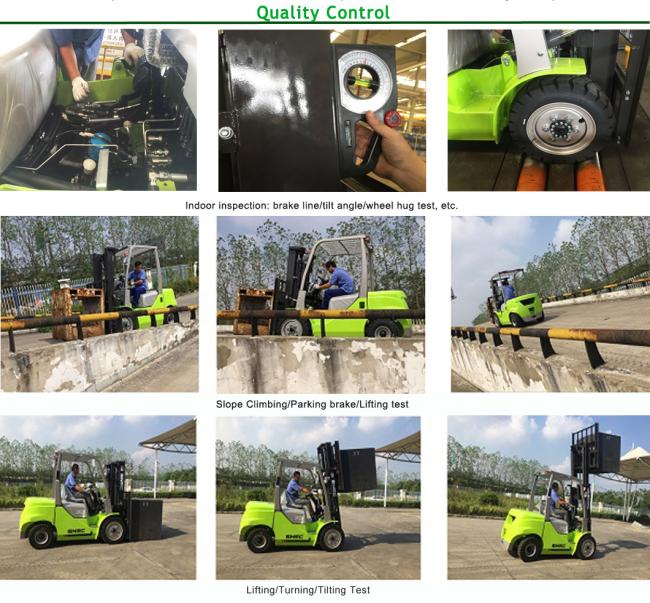

SNSC Forklift Quality Control
We have strict quality control system. Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor inspection inclues braking performance, inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor inspection includes loading, lifting, tilting, turning, climbing, parking on 15 degree ramp, etc.
All SNSC forklift will not be permitted to leave from our factory until they reach our strict standard~
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()
Forklift Catalogue:
1. Diesel Forklift Truck Range from 1 to 10tons; (FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)
3. LPG & Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)
4. Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()
Why Choose Us?
Free Spare Parts With Delivery(which valued more than 100usd):
To guarantee every diesel forklift customer has a good forklift using feeling and longer using life, we send some spare parts for free with every forklift delivery, eg: filters, seal and related.
24-Hours Before&After Sales Service
In the future, if customers need any spare parts, we will offer you replies within 24hours, so please be relax, we will never leave our customers in an anxious situation, especially spare parts.
Company Introduction
We, SNSC, are top quality forklift manufacturer in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets exporting volume.
We regard "Quality product, reasonable price, efficient production time and good after-sale service" as our tenet."
We hope to cooperate with more customers for mutual development and benefit. Welcome to contact us with your demands.
![3500kg 3.5ton Gas Powered Forklift Trucks with Bale Clamp]()
SNSC Forklift Quality Control
We have strict quality control system. Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor inspection inclues braking performance, inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor inspection includes loading, lifting, tilting, turning, climbing, parking on 15 degree ramp, etc.
All SNSC forklift will not be permitted to leave from our factory until they reach our strict standard~
Forklift Catalogue:
1. Diesel Forklift Truck Range from 1 to 10tons; (FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)
3. LPG & Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)
4. Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)
Why Choose Us?
Free Spare Parts With Delivery(which valued more than 100usd):
To guarantee every diesel forklift customer has a good forklift using feeling and longer using life, we send some spare parts for free with every forklift delivery, eg: filters, seal and related.
24-Hours Before&After Sales Service
In the future, if customers need any spare parts, we will offer you replies within 24hours, so please be relax, we will never leave our customers in an anxious situation, especially spare parts.
Company Introduction
We, SNSC, are top quality forklift manufacturer in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets exporting volume.
We regard "Quality product, reasonable price, efficient production time and good after-sale service" as our tenet."
We hope to cooperate with more customers for mutual development and benefit. Welcome to contact us with your demands.
