1T-5T Load Capacity Lpg Forklift Truck With 6/12 Degree Mast Tilt Angle
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description
3 Ton LPG Gasoline Forklift Machine Price
This 3 Ton LPG Gasoline Forklift Machine Price is ready to Mexico
Details of 3 Ton LPG Gasoline Forklift Machine Price:
Japan NISSAN K25 Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Standard 2-stage 3m mast;
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Standard Pneumatic Tires
Common Options of 3 Ton LPG Gasoline Forklift Machine Price:
Solid Tires;
3m-7m duplex or triplex full free mast;
Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Double filter;
High exhaust;
Customized color except green, red and orange.
Specifications of 3 Ton LPG Gasoline Forklift Machine Price:
| Specifications | Unit | FL30 | ||
| Features | Power type | LP/Gasoline | ||
| Rated load | kg | 3000 | ||
| Load center | mm | 500 | ||
| Lifting height | mm | 3000 | ||
| Free lifting height | mm | 145 | ||
| Fork size | L*W*T | mm | 1070*125*45 | |
| Mast tilt angle | Front/Rear | . | 6/12 | |
| Min. turning radius | mm | 2400 | ||
| Min.ground clearance | Mast | mm | 120 | |
| Overhead guard height | mm | 2090 | ||
| Front overhang | mm | 475 | ||
| Performance | Max. travelling speed | loaded | km/h | 20 |
| Max. lifting speed | loaded | mm/s | 470 | |
| Max. traction force | loaded | KN | 18 | |
| Max. climbing ability | % | 20 | ||
| Dimension | Overall length | without fork | mm | 2695 |
| Overall width | mm | 1230 | ||
| Mast lowered height | mm | 2055 | ||
| Mast extended height | mm | 4265 | ||
| Chassis | Tyre | Front | 28*9-15-12PR | |
| Rear | 6.50-10-10PR | |||
| Wheel base | mm | 1700 | ||
| Wheel thread | Front/Rear | mm | 1000/970 | |
| Weight(without load) | kg | 4350 | ||
| Powertrain | Battery | V/AH | 12/90 | |
| Engine | Model | nissan K25 | ||
| Rated power | km/r.p.m | 37.4/2300 | ||
| Rated torque | Nm/r.p.m | 176.5/1600 | ||
| No. cylinder | 4 | |||
| Bore x stroke | mm | 89X100 | ||
| Displacement | L | 2.488 | ||
| Fuel tank capacity | L | 70 | ||
| Transmission/shift | 1/1 automatic transmission | |||
| Operation pressure | Mpa | 17.5 | ||
Details of 3 Ton LPG Gasoline Forklift Machine Price:

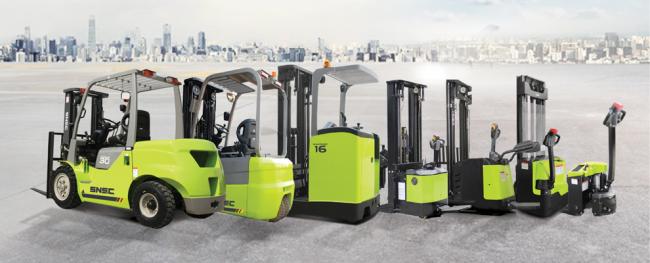

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact Winni with your demands.
