Canada Snsc Fork Lifter 1T 5T Load Capacity 3000-5000mm Lift Height Nissan FL18 4000 Lbs Forklift
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description

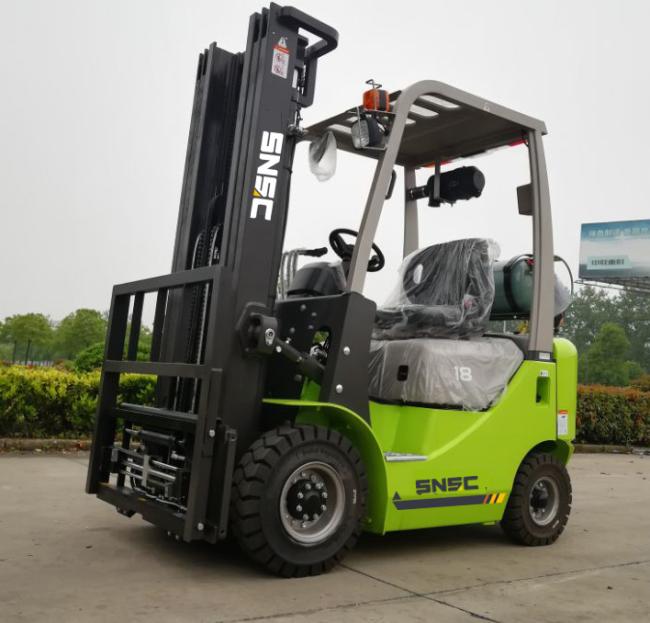

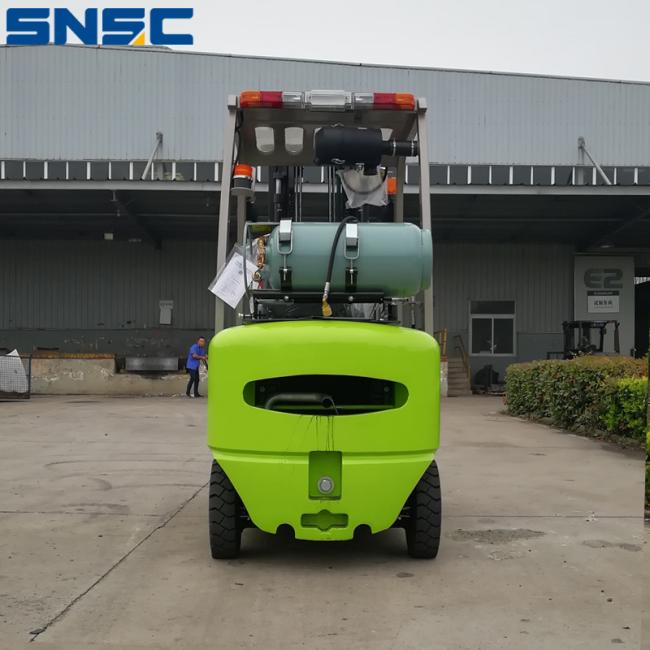

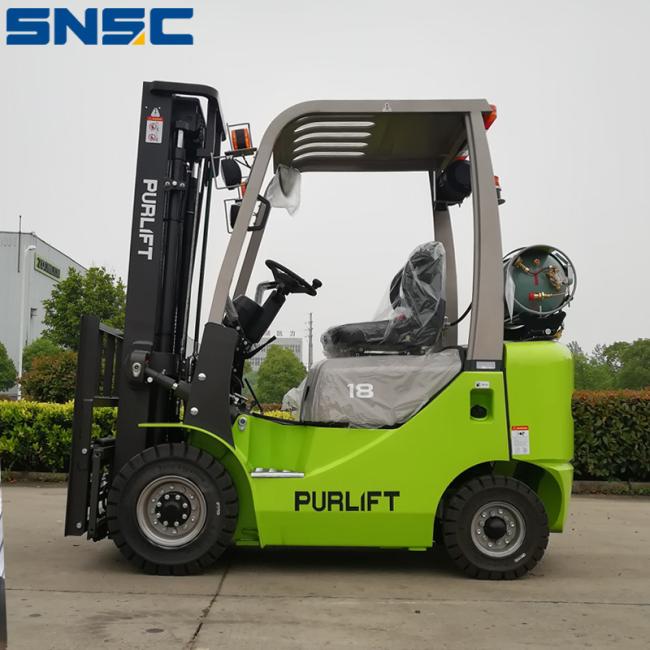

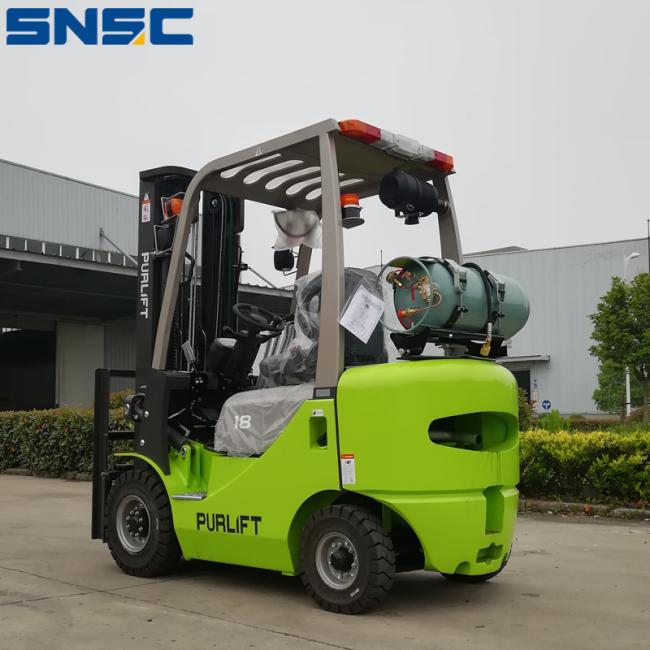

Nissan Forklift FL18 4000lbs Canada SNSC Fork Lifter for Sale
Details:
Japan NISSAN K21 Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);

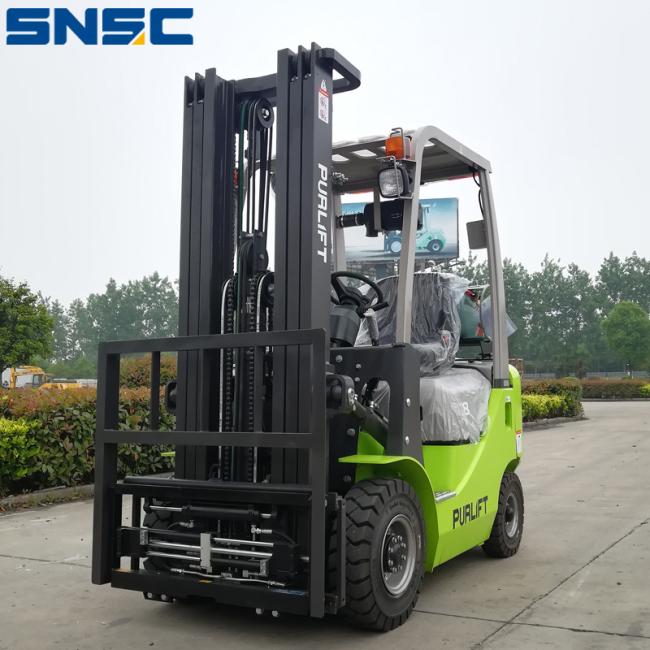

Standard 2-stage 3m mast;
Electric Hydraulic Automatic Transmission by TCM technology;

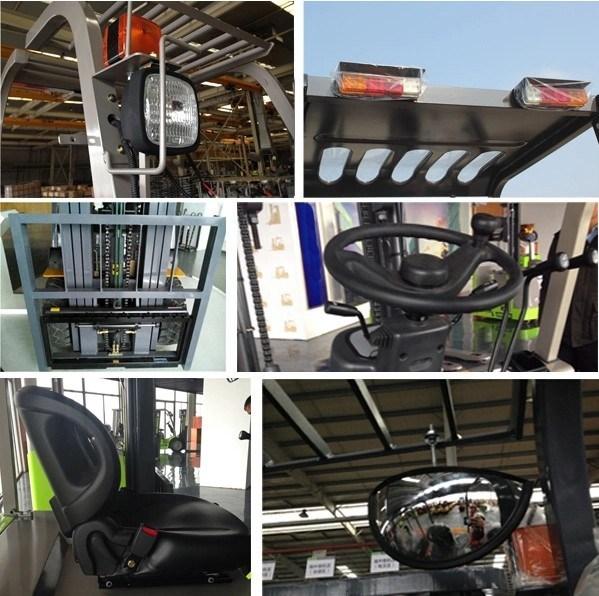

Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Standard Pneumatic Tires
Common Options:
Solid Tires;
3m-7m duplex or triplex full free mast;
Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Double filter;
High exhaust;
Customized color except green, red and orange.
Specifications:
| Specifications | Unit | FL18 | ||
| Features | Power type | LP/Gasoline | ||
| Rated load | kg | 1500 | ||
| Load center | mm | 500 | ||
| Lifting height | mm | 3000 | ||
| Free lifting height | mm | 115 | ||
| Fork size | L*W*T | mm | 920*100*35 | |
| Mast tilt angle | Front/Rear | . | 6/12 | |
| Min. turning radius | mm | 2060 | ||
| Min.ground clearance | Mast | mm | 105 | |
| Overhead guard height | mm | 2040 | ||
| Front overhang | mm | 400 | ||
| Performance | Max. travelling speed | loaded | km/h | 14.5 |
| Max. lifting speed | loaded | mm/s | 460 | |
| Max. traction force | loaded | KN | 16 | |
| Max. climbing ability | % | 20 | ||
| Dimension | Overall length | without fork | mm | 2250 |
| Overall width | mm | 1086 | ||
| Mast lowered height | mm | 1955 | ||
| Mast extended height | mm | 3860 | ||
| Chassis | Tyre | Front | 6.50-10-10PR | |
| Rear | 5.00-8-10PR | |||
| Wheel base | mm | 1400 | ||
| Wheel thread | Front/Rear | mm | 890/920 | |
| Weight(without load) | kg | 2890 | ||
| Powertrain | Battery | V/AH | 12/90 | |
| Engine | Model | nissan K21 | ||
| Rated power | km/r.p.m | 31.2/2250 | ||
| Rated torque | Nm/r.p.m | 143.7/1600 | ||
| No. cylinder | 4 | |||
| Bore x stroke | mm | 89X83 | ||
| Displacement | L | 2.065 | ||
| Fuel tank capacity | L | 45 | ||
| Transmission/shift | 1/1 automatic transmission | |||
| Operation pressure | Mpa | 14.5 | ||
1.8Ton LPG Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

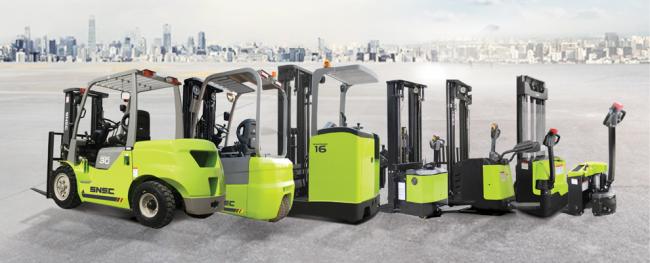

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

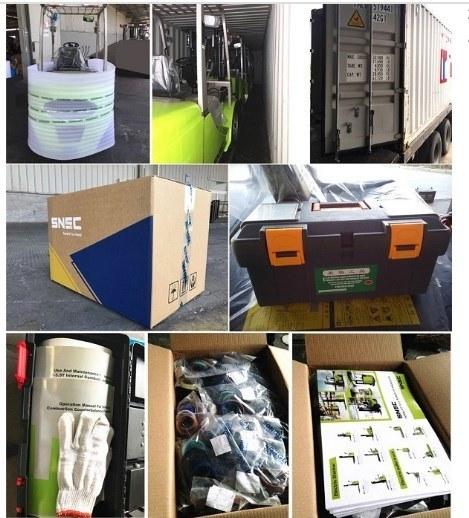

Package:
Packing Details: 20GP can hold 3 stes 1.8 tonne dual fuel forklift, 40GP can hold 6 sets 1.8 tonne dual fuel forklift;
Delivery Details :About 35 Working Days

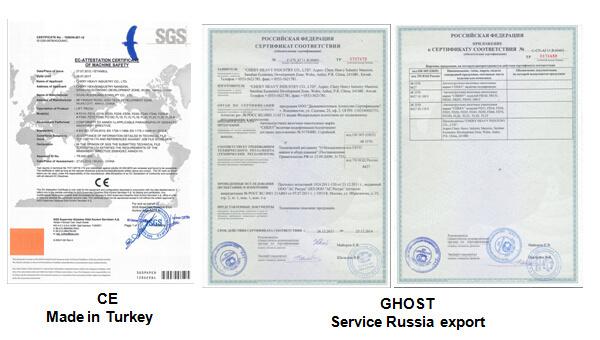

Certificate:
