Super Elastic Solid Tire 4050kg 4 Wheel Electric Forklift Truck Attachements Clamps With 48V Battery
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description
Electric Forklift 2.5Ton for sale
![Brand New 48V Battery 2.5ton Electric Forklift with Super Elastic Solid Tire]()
New 2.5Ton Forklift Elecrical For hot sale
New 2.5Ton Forklift Elecrical For hot sale
| No. | Specifications | Unit | FB25 | ||
| 1 | Characteristics | Power | battery | ||
| 2 | Capacity | kg | 2500 | ||
| 3 | Center of load | mm | 500 | ||
| 4 | Lifting height | mm | 3000 | ||
| 5 | Free lifting height | mm | 145 | ||
| 6 | Forks L×W×H | mm | 1070×122×40 | ||
| 7 | Mast tilt angle Forward/Backward | . | 6/12 | ||
| 8 | Min.turning radius | mm | 2090 | ||
| 9 | Min. right angle stacking width | mm | 3760 | ||
| 10 | Min. right angle Aisle width | mm | 2040 | ||
| 11 | Min.ground clearance | mm | 110 | ||
| 12 | Overhead guard height | mm | 2150 | ||
| 13 | Height from seat to overhead guard | mm | 1005 | ||
| 14 | Front overhang | mm | 470 | ||
| 15 | Perf | Max.traveling speed(loaded) | km/h | 13 | |
| 16 | Max.lifting speed(loaded) | mm/s | 280 | ||
| 17 | Gradeability | % | 15 | ||
| 18 | Dimensions | Overall length (without fork) | mm | 2310 | |
| 19 | Overall width | mm | 1150 | ||
| 20 | Mast extended height(with bracket) | mm | 4030 | ||
| 21 | Mast lowered height | mm | 1990 | ||
| 22 | Chassis | Tire | Front | 7.00-12-12PR | |
| 23 | Front | 7.00-12-12PR | |||
| Rear | 18×7-8-14PR | ||||
| 25 | Wheelbase | mm | 1450 | ||
| 26 | Tread width | Front/Rear | mm | 960/950 | |
| 27 | Curb weight | None-load | kg | 4050 | |
| 28 | Powertrain | Battery | Voltage/Capacity | V/Ah | 48/630 |
| 29 | Motor | Traveling | KW | 11 | |
| 30 | Lifting | KW | 10 | ||
| 31 | Controller | CURTIS | |||
| 32 | Control type | 50%AC | |||
| 33 | Working pressure | Mpa | 17.5 | ||

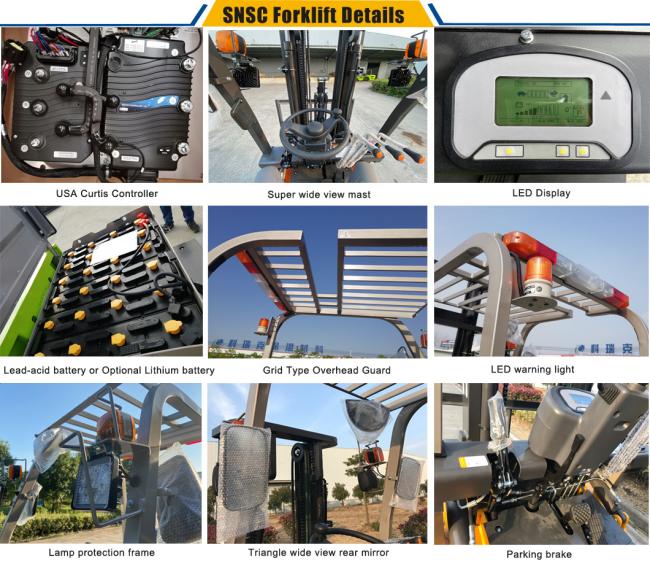

With Free maitenance AC Drive rMotor,AC Lift Motor;
With Imported Electrical Controller & Water proof LCD Dispaly;
With Chinese top brand battery 48V/630AH;
With Battery charger;
With High quality 1070mm fork, 1220-2500mm for as option;
With Duplex wide view mast 3000mm lifting height; duplex mast 3000mm-triplex mast 7000mm as option;
With Pneumation tire, solide tire and no marking tire as option;
With Toyota seat with safty belft;

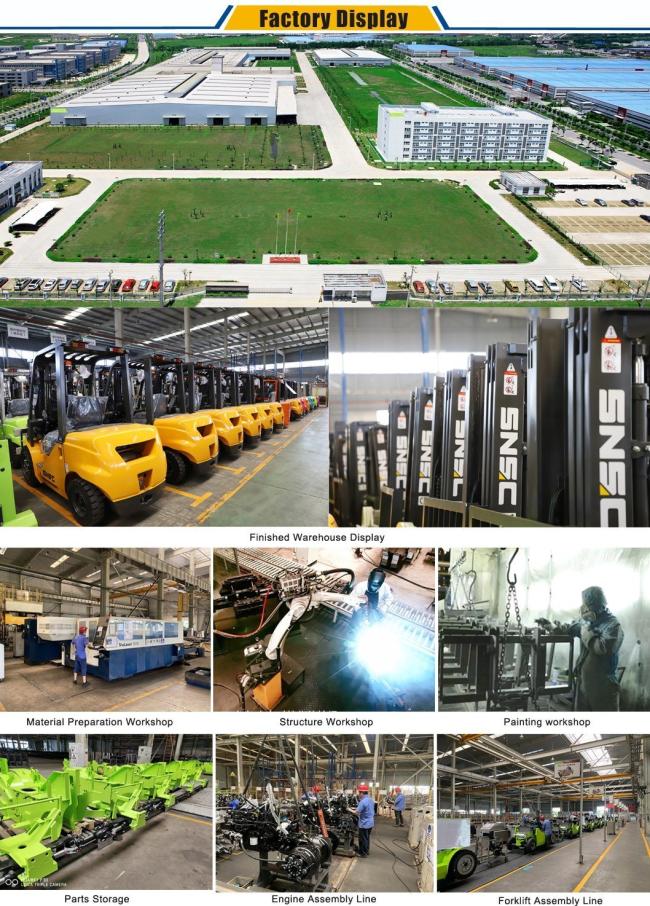

We are first calss in Chinese forklift truck manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume
our R&D research is in Britain, and we invested over 600 million in forklift factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.
Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions.
